Rotary Arm Pallet Wrapper

Rotary Arm Pallet Wrapper

AZIMUTH 4000

Rotary Arm to Wrap Unstable and Heavy SKIDs.
  • Rotary Arm Pallet Wrapper
  • Wraps to 30 loads per Hour, Up to 16 RPM
  • Wrap up to 48 "x 48" x 85" pallets
  • Unlimited LBS
  • PLC Control Panel (11 Wrapping Functions, 99 Wrapping Programs)
  • Photo Sensor Height Detection System
  • Applicable with Forklift and Pallet Jack

Optimal Pallet Wrapper for Unstable and Heavy Pallets


MAX SKID 48 x 48 x 85"
Up to Unlimited LBS
85"
105"
48"
48"

PLC Control Panel

Digital Powerful Control
  • Up, Up/Down and Manual Cycles
  • Control 10 Wrapping Parameters
  • Save 99 Wrapping Programs for Different King of SKID
  • Emergency Stop Button

Rotary Arm Pallet Wrapper


(Pallet Wrapper must be bolted to the floor)

Only for $6,550.00

For Palletwrapper on the Stock.
Images
+

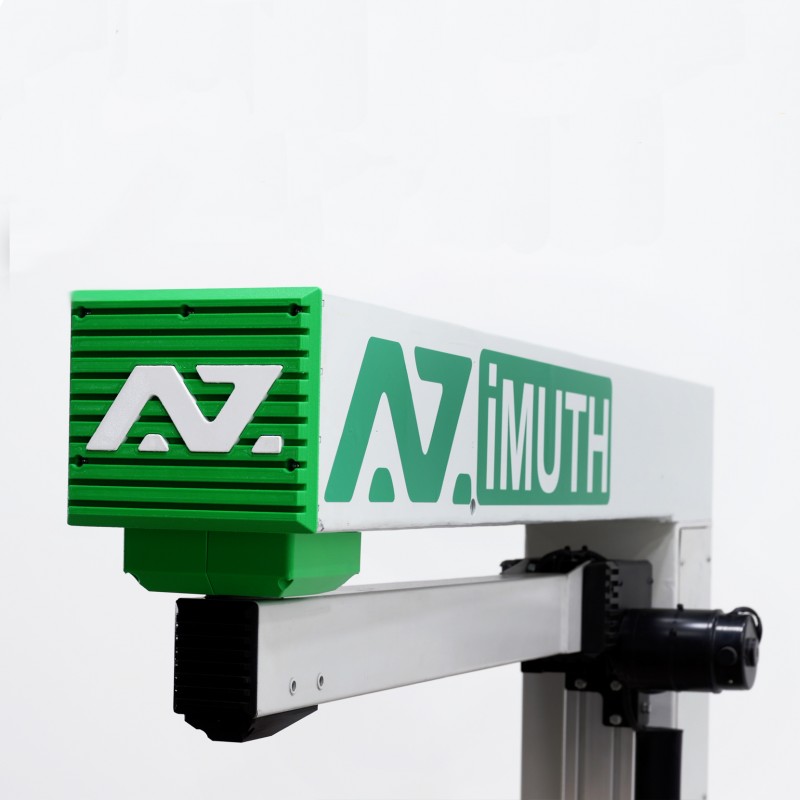

AZIMUTH 4000 Rotary Arm Pallet Wrapper
AZIMUTH 4000 Rotary Arm Pallet Wrapper
AZIMUTH 4000 Rotary Arm Pallet Wrapper
AZIMUTH 4000 Rotary Arm Pallet Wrapper
AZIMUTH 4000 Rotary Arm Pallet Wrapper

Rotary Arm Pallet Wrapper

AZ-4000
+
Description

AZIMUTH 4000 Rotary ArmPallet Wrapper.

Semi-Automatic Pallet Wrapping Machine.

Best Solution to Wrap Unstable and Heavy Pallets.

  Watch Video

AZIMUTH-4000 Features:

  • Adjust from 20% to 160% stretch Chain drive. Compatible with 3" core stretch film rolls (up to 20" height, Up to 35 lbs)
  • Max Pallet size - 48 x 48 x 85"
  • Load Capacity - Unlimited lbs
  • Digital control panel. Selection of wrapping parameters and save it in the program memory.
  • Convenient photo eye - allow operator to walk away.
  • 115 volt, 10A

More details

Prices

SALES! ONLY IN APRIL

ROTARY ARM PALLET WRAPPER AZIMUTH-4000
Shipping next business day


PRICE PER ITEM
from 1 item
$6,550.00
Quantity (items):
QTY
Total:
SALES! ONLY IN APRIL

ROTARY ARM PALLET WRAPPER AZIMUTH-4000
Shipping next business day


SKUMAX. SKID SIZE
LOAD CAPACITY
ROLL WIDTH
PRICE
SALETO CART
AZ-4000 48x48x85 Unlimited 20" $7,950 $6,550.00

AZIMUTH 4000 Rotary Arm Stretch Wrappers

The AZIMUTH-4000 Rotary Arm Pallet Wrapping Machine
Best Price and Best Functionality
Best Solution to Wrap Unstable and Heavy Pallets.

  • The maximum amount of adjustment in the base.
  • Wrap up to 30 loads per hour. Speed adjusts to 16 RPM.
  • Max Pallet size - 48 x 48 x 85"
  • Load Capacity - Unlimited LBS
  • Adjust from 20% to 160% stretch. Compatible with 3" core stretch film rolls (up to 20" height, Up to 35 lbs)
  • Digital control panel. Selection of 10 wrapping parameters and save it in the 99 programs.
  • It's very easy to install simple to operate and virtually zero maintenance
  • Convenient photo eye - allow operator to walk away. Standard Photo Eye Sensor - reads loads 25 in or taller. May not work with red, blue and black surfaces (use Manual Mode or Mode with Present Height).
  • Pallet Wrapper Base need to be mounted to the Floor. Screw not include. Select the appropriate mounting screws depending on the flooring.

2 Years Warranty. Made in USA.

Control Panel Functions

  • Separate numbers of Enforced Wraps at bottom/top SKID.
  • Adjusting the rotation speed of the Pallet Wrapper Rotary Arm
  • Customization SKID wrapping height (if necessary)
  • Soft Start and Soft Stop at home position of Pallet Wrapper Rotary Arm
  • Setting the carret up/down moving speed
  • 99 Customized Wrapping Programs Profiles memory
  • Protection from change Wrapping Parameters
  • Sound Signals at Start and End of Wrapping cycles
  • Setting the upper Overlap the top of the cargo
  • Function to wrap SKID using plastic or corrugated Top Cover
  • Emergency Stop Button
  • Active Compression Protection System
  • Manual Wrapping Mode
AZIMUTH 4000 Rotary Arm Pallet Wrapper Dimensions

For SAFETY OF USING of Pallet Wrapper AZIMUTH-4000, it is  STRONGLY recomended to mark 2 circles of safe use on the floor.

1. PACKING AREA. A circle (with a diameter of 67") that defines the space available for the pallet to be placed, beyond which the pallet must not protrude.

2. RESTRICTION AREA. A circle (with a diameter of 94") indicates an area in which no objects should be placed or people should be allowed in during the packaging process.

Max Skid Size48x48x85"
Wrap HeightUp to 85 in
Load CapacityUnlimited LBS
Max Load Diameter67 in
Rotary Arm SpeedUp to 16 RPM
Stretch film TensionManual, 20% - 160%
Production RateUp to 30 Loads Per Hour
Packing Area67 in Diameter
Power Consumption115V, 10A
Machine Length68 in (41 in on the floor)
Machine Height105 in
TypeSemi-Automatic
Stretch Wrap3 in core Stretch Wrap rolls. Up to 20 in height. Up to 35 lbs
Height SensingStandard Photo Eye Sensor - reads loads 25 in or taller. May not work with red, blue and black surfaces (use Manual Mode or Mode with Present Height).
Permitted Ambient ConditionsIndoor Usage only.
Temperaturebetween 41°F and 113°F. To work below 41°F need to be FREEZER Version.
Atmospheric Conditionsnot greater than 50% at a temperature of 104°F and 90% at a temperature not over 68°F (without condensation)
Loading OptionForklift or Pallet Jack
MaterialSteel
Package Size36x120x30"
Gross Weight800 lbs
Net Weight596 lbs
ColorGrey/Green (color may very)
Liftgate DeliveryNO
Warranty2 years
PositioningBase need to be mounted to the floor. Screw not include. Select the appropriate mounting screws depending on the flooring.
