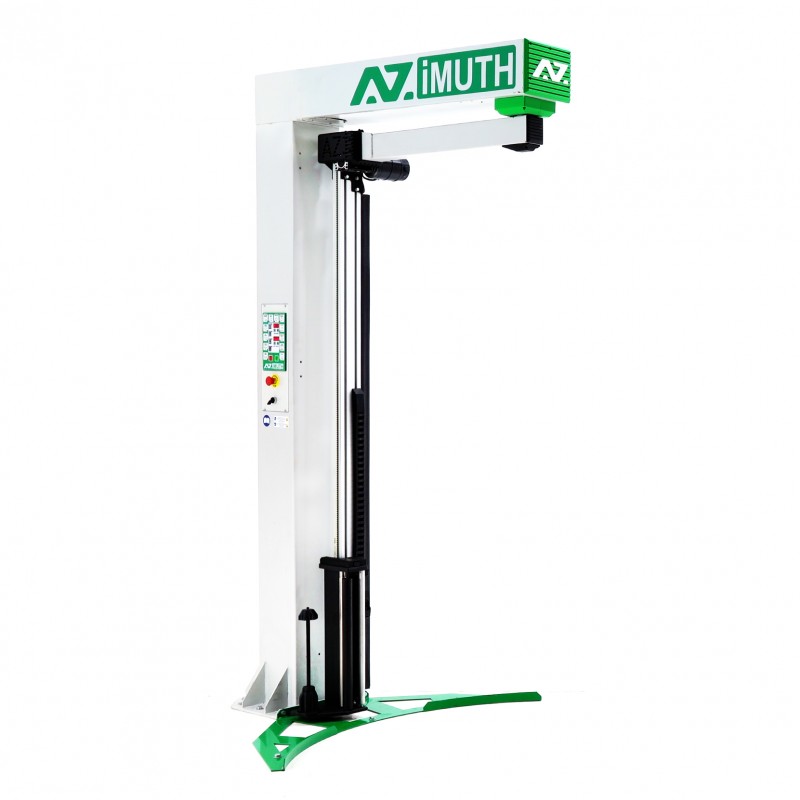

AZIMUTH 4010

Rotary Arm to Wrap Unstable and Heavy SKIDs.

Rotary Arm Pallet Wrapper
Wraps to 30 loads per Hour, Up to 16 RPM
Wrap up to 51 "x 51" x 85" pallets
Unlimited LBS
PLC Control Panel (11 Wrapping Functions, 99 Wrapping Programs)
Photo Sensor Height Detection System
Applicable with Forklift and Pallet Jack

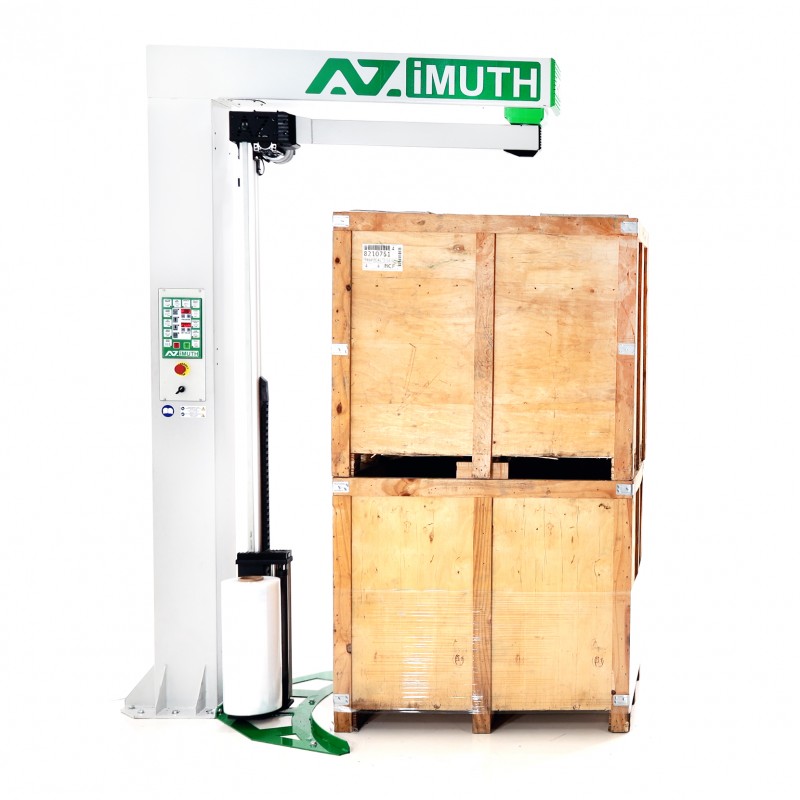

Optimal Pallet Wrapper for Unstable and Heavy Pallets

MAX SKID 51 x 51 x 85"
Up to Unlimited LBS

85"

105"

51"

PLC Control Panel

Digital Powerful Control

Up, Up/Down and Manual Cycles
Control 10 Wrapping Parameters
Save 99 Wrapping Programs for Different King of SKID
Emergency Stop Button

Rotary Arm Pallet Wrapper

(Pallet Wrapper must be bolted to the floor)

Only for $15,990.00

For Palletwrapper on the Stock.

Images

Rotary Arm Pallet Wrapper AZIMUTH-4010

SKU: AZ-4010

Description

AZIMUTH 4010 Rotary ArmPallet Wrapper.

Semi-Automatic Pallet Wrapping Machine.

Best Solution to Wrap Unstable and Heavy Pallets.

Watch Video

AZIMUTH-4010 Features:

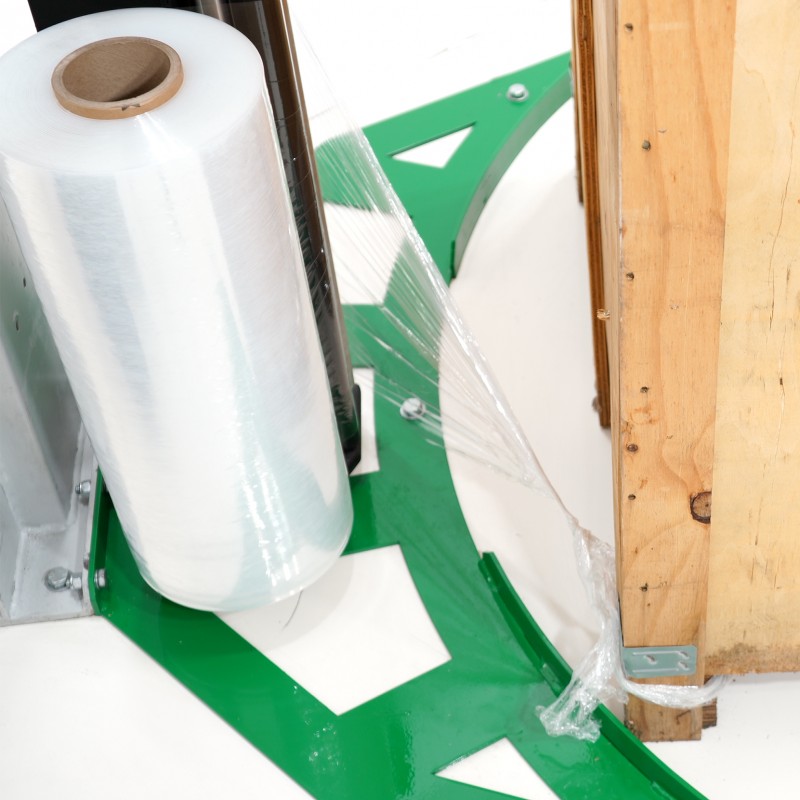

Adjust from 20% to 160% stretch Chain drive. Compatible with 3" core stretch film rolls (up to 20" height, Up to 35 lbs)
Max Pallet size - 51 x 51 x 85"
Load Capacity - Unlimited lbs
Digital control panel. Selection of wrapping parameters and save it in the program memory.
Convenient photo eye - allow operator to walk away.
115 volt, 10A

More details

Prices

ROTARY ARM PALLET WRAPPER AZIMUTH-4010
Regular Price is $15,990
Lead time is up to 3 business weeks

PRICE PER ITEM

from 1 item

$15,990.00

Quantity (items):

QTY

Buy

Total:

**ROTARY ARM PALLET WRAPPER AZIMUTH-4010**
**Regular Price is $15,990**
**Lead time is up to 3 business weeks**
SKU	MAX. SKID SIZE	LOAD CAPACITY	ROLL WIDTH	PRICE	SALE	TO CART
SKU	MAX. SKID SIZE	LOAD CAPACITY	ROLL WIDTH	PRICE		TO CART
AZ-4010	51x51x85"	Unlimited	20"	$15,990	$15,990.00

More infoMore
SpecificationsSpec

AZIMUTH 4010 Rotary Arm Stretch Wrappers

The AZIMUTH-4010 Rotary Arm Pallet Wrapping Machine
Best Price and Best Functionality
Best Solution to Wrap Unstable and Heavy Pallets.

The maximum amount of adjustment in the base.
Wrap up to 30 loads per hour. Speed adjusts to 16 RPM.
Max Pallet size - 51 x 51 x 85"
Load Capacity - Unlimited LBS
Adjust from 20% to 160% stretch. Compatible with 3" core stretch film rolls (up to 20" height, Up to 35 lbs)
Digital control panel. Selection of 10 wrapping parameters and save it in the 99 programs.
It's very easy to install simple to operate and virtually zero maintenance
Convenient photo eye - allow operator to walk away. Standard Photo Eye Sensor - reads loads 25 in or taller. May not work with red, blue and black surfaces (use Manual Mode or Mode with Present Height).
Pallet Wrapper Base need to be mounted to the Floor. Screw not include. Select the appropriate mounting screws depending on the flooring.

2 Years Warranty. Made in USA.

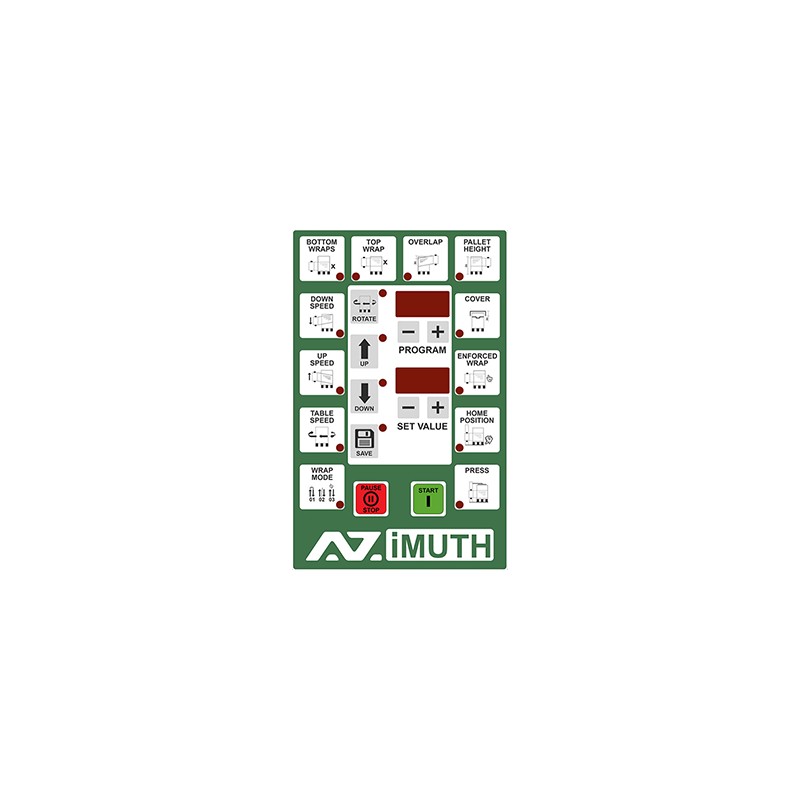

Control Panel Functions

Separate numbers of Enforced Wraps at bottom/top SKID.
Adjusting the rotation speed of the Pallet Wrapper Rotary Arm
Customization SKID wrapping height (if necessary)
Soft Start and Soft Stop at home position of Pallet Wrapper Rotary Arm
Setting the carret up/down moving speed
99 Customized Wrapping Programs Profiles memory
Protection from change Wrapping Parameters
Sound Signals at Start and End of Wrapping cycles
Setting the upper Overlap the top of the cargo
Function to wrap SKID using plastic or corrugated Top Cover
Emergency Stop Button
Active Compression Protection System
Manual Wrapping Mode

AZIMUTH 4010 Rotary Arm Pallet Wrapper Dimensions

For SAFETY OF USING of Pallet Wrapper AZIMUTH-4010, it is STRONGLY recomended to mark 2 circles of safe use on the floor.

1. PACKING AREA. A circle (with a diameter of 67") that defines the space available for the pallet to be placed, beyond which the pallet must not protrude.

2. RESTRICTION AREA. A circle (with a diameter of 94") indicates an area in which no objects should be placed or people should be allowed in during the packaging process.

Max Skid Size	51x51x85"
Wrap Height	Up to 85 in
Load Capacity	Unlimited LBS
Max Load Diameter	72 in
Rotary Arm Speed	Up to 16 RPM
Stretch film Tension	Manual, 20% - 160%
Production Rate	Up to 30 Loads Per Hour
Packing Area	72 in Diameter
Power Consumption	115V, 10A
Machine Length	74 in (41 in on the floor)
Machine Height	105 in
Type	Semi-Automatic
Stretch Wrap	3 in core Stretch Wrap rolls. Up to 20 in height. Up to 35 lbs
Height Sensing	Standard Photo Eye Sensor - reads loads 25 in or taller. May not work with red, blue and black surfaces (use Manual Mode or Mode with Present Height).
Permitted Ambient Conditions	Indoor Usage only.
Temperature	between 41°F and 113°F. To work below 41°F need to be FREEZER Version.
Atmospheric Conditions	not greater than 50% at a temperature of 104°F and 90% at a temperature not over 68°F (without condensation)
Loading Option	Forklift or Pallet Jack
Material	Steel
Package Size	36x120x30"
Gross Weight	900 lbs
Net Weight	796 lbs
Color	Grey/Green (color may vary)
Liftgate Delivery	NO
Warranty	2 years
Positioning	Base need to be mounted to the floor. Screw not include. Select the appropriate mounting screws depending on the flooring.
