- High Profile Pallet Wrapper
- Wraps to 20 loads per Hour, Up to 12 RPM
- Wrap up to 85 "x 85" x 115" pallets
- Up to 4 000 LBS
- PLC Control Panel (11 Wrapping Functions, 99 Wrapping Programs)
- Photo Sensor Height Detection System
- Applicable with Forklift only
AZIMUTH 3032R High Profile Pallet Wrapper (85"x115")
AZIMUTH 3032R High Profile Pallet Wrapper (85"x115")
AZIMUTH 3032R High Profile Pallet Wrapper (85"x115")
AZ-3032R

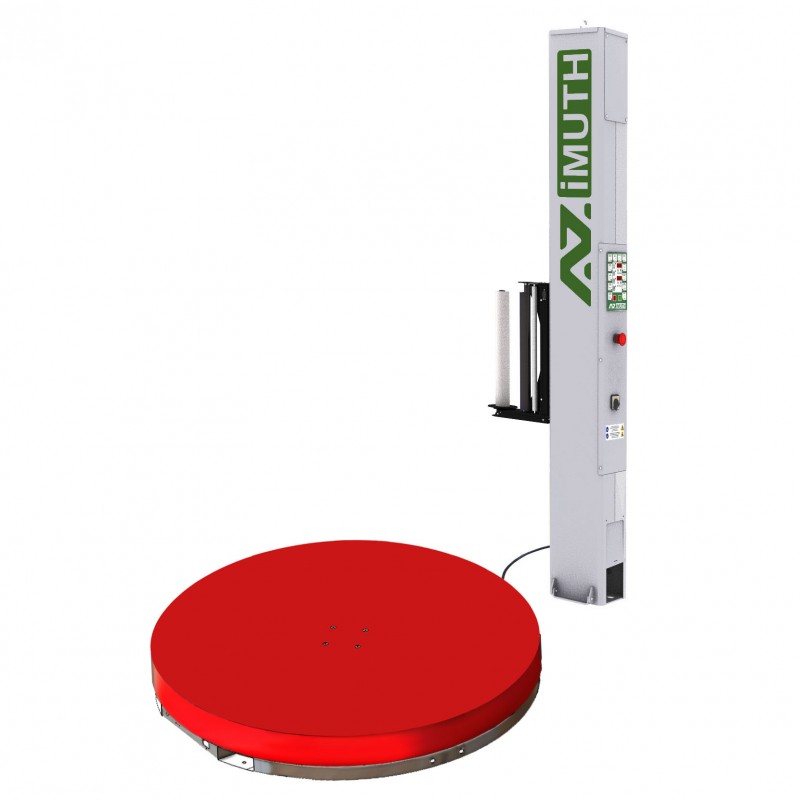

AZIMUTH 3032R Split Design Round High Profile Pallet Wrapper.
The AZIMUTH 3032R is a High-Profile split-design stretch wrapping machine with a 59" round high-profile turntable, 115-inch wrap height, and 4,000 lb load capacity.
AZIMUTH-3032R Features:
- Adjust from 20% to 150% stretch Chain drive. Compatible with 3" core stretch film rolls (up to 20" height).
- Max Pallet size - 85 x 85 x 115"
- Load Capacity - up to 4,000 LBS
- Digital control panel. Selection of wrapping parameters and saving them in the program memory.
- Convenient photo eye - allows the operator to walk away.
- 115 volt, 15A
Prices
AZIMUTH 3032R SPLIT SYSTEM PALLET WRAPPER
TURNTABLE IS ROUND AND RED
Lead time is up to 2 business days
Regular Price is $8,690
TURNTABLE IS ROUND AND RED
Lead time is up to 2 business days
Regular Price is $8,690
PRICE PER ITEM
from 1 item
$8,690.00
Quantity (items):
QTY
Total:
NEW CARRIAGE OPTION
Lead time is up to 4 weeks
Must be purchased with the pallet wrapper.
Each pallet wrapper can be equipped with only one type of film carriage.
Lead time is up to 4 weeks
Must be purchased with the pallet wrapper.
Each pallet wrapper can be equipped with only one type of film carriage.

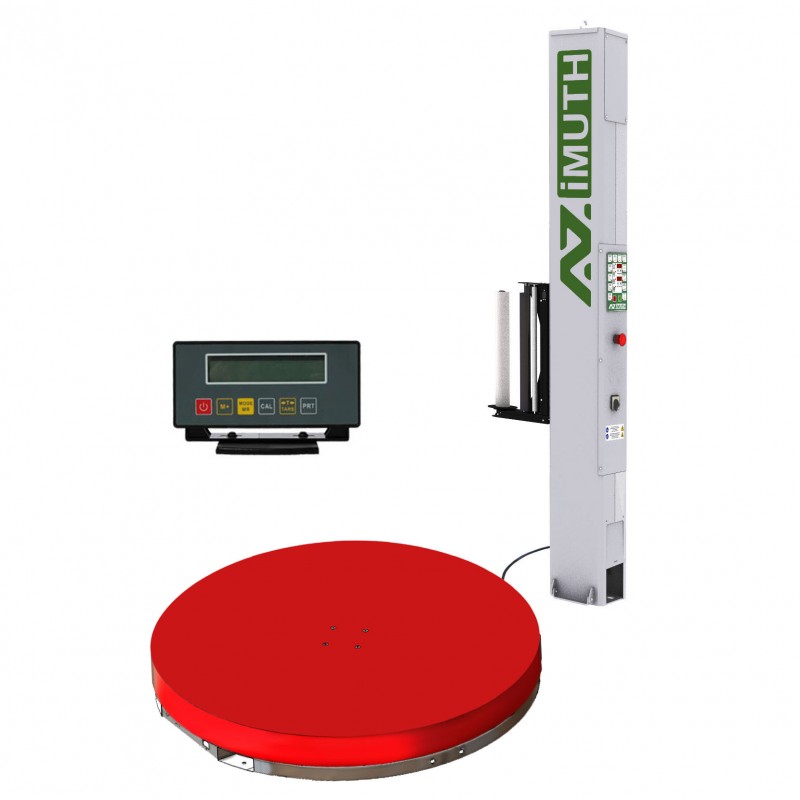

SCALE OPTION
Can be used with the Receipt Printer ONLY. (Printer not included)
CANNOT BE PURCHASED SEPARATELY. Installation only in production
Can be used with the Receipt Printer ONLY. (Printer not included)
CANNOT BE PURCHASED SEPARATELY. Installation only in production
| SKU | CARRIAGE TYPE | STRETCH RATIO | TENSION SYSTEM | FILM WIDTH | SALE | TO CART | |
|---|---|---|---|---|---|---|---|
| AZ-MB30 |  | Standard Brake | Manual (20%–160%) | Mechanical Tension | 30" | $900.00 | |
| AZ-PS |  | Pre-Stretch | Fixed 250% | Power Pre-Stretch | 20" | $1,400.00 |
| SKU | LOAD CAPACITY | PRECISION | INDICATOR | SALE | TO CART | |
|---|---|---|---|---|---|---|
| AZ-TSCALE |  | 5000 LBS | 2 LBS | LCD | $1,100.00 |
AZIMUTH 3032R Split System Round High Profile Stretch Wrapper
The AZIMUTH-3032R Pallet Wrapping Machine - Best Solution To Wrap Oversize SKIDs
- The maximum amount of adjustment in the base.
- It's very easy to install, simple to operate, and virtually zero maintenance.
- The turntable can be moved by a Forklift at the Front and at the Rear side of the Turntable.
- Digital control panel. Selection of 10 wrapping parameters and save them in the 99 programs.
- Max SKID Size: 85"x85"x115"
- Wrap Height: UP to 75"
- Load Capacity: up to 4,000 LBS
- Turntable Speed Adjustable: from 4 to 12 RPM
- Stretch Film Tension: manual, 20% - 160%
- Production Rate: 10-20 Loads Per Hour
- Turntable: 59" Diameter, Diamond Plate Top, High Profile, Chain Drive
- Use with Machine Stretch Wrap 3 in core Stretch Wrap rolls. Up to 20 in height
- Convenient photo eye - allows the operator to walk away. Standard Photo Eye Sensor - reads loads 15 in or taller. May not work with red, blue, and black surfaces (use Manual Mode or Mode with Present Height).
- Permitted Ambient Conditions: Indoor Usage only.
- Temperature: 41°F and above. To work below this temperature need to have the FREEZER Version.
- Atmospheric Conditions: not greater than 50% at a temperature of 104°F and 90% at a temperature not over 68°F (without condensation)
- The column must be bolted to the floor. Screws for mounting of the column are not supplied. Select the appropriate mounting screws depending on the flooring. If you have a concrete floor, we recommend using 6 anchor bolts, 3/8 inch diameter by 2 or 2.5 inches long.
- Color may vary
- NO liftgate delivery
Control Panel Functions
- Separate numbers of Enforced Wraps at the bottom/top SKID.
- Adjusting the rotation speed of the Pallet Wrapper Turntable
- Customization SKID wrapping height (if necessary)
- Soft Start and Soft Stop at the home position of the Pallet Wrapper Turntable
- Setting the carriage up/down moving speed
- 99 Customized Wrapping Programs Profiles memory
- Protection from change Wrapping Parameters
- Sound Signals at Start and End of Wrapping Cycles
- Setting the upper Overlap the top of the cargo
- Function to wrap SKID using plastic or corrugated Top Cover
- Emergency Stop Button
- Active Compression Protection System
- Manual Wrapping Mode

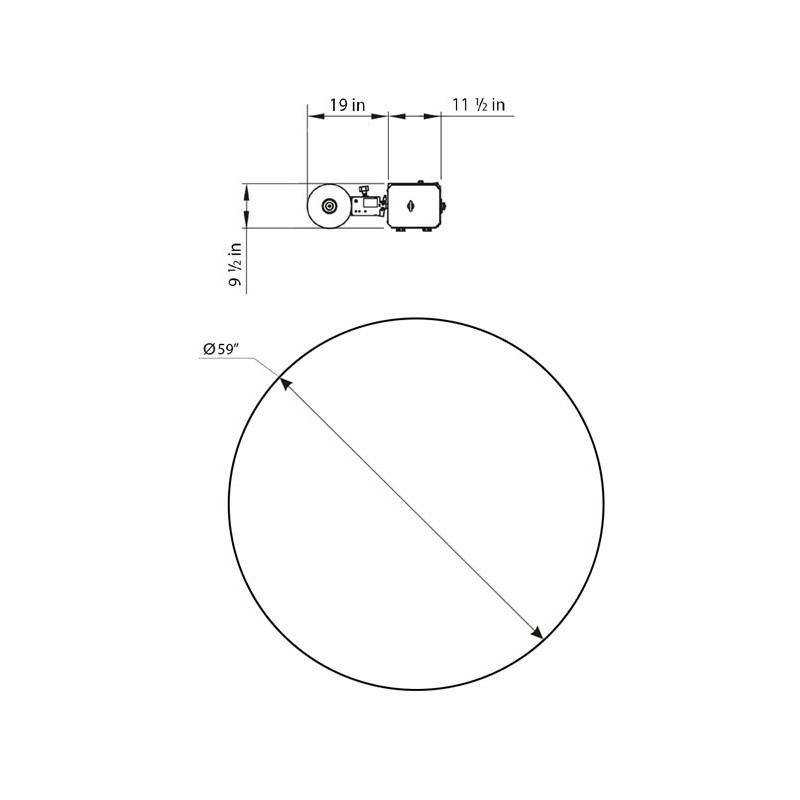

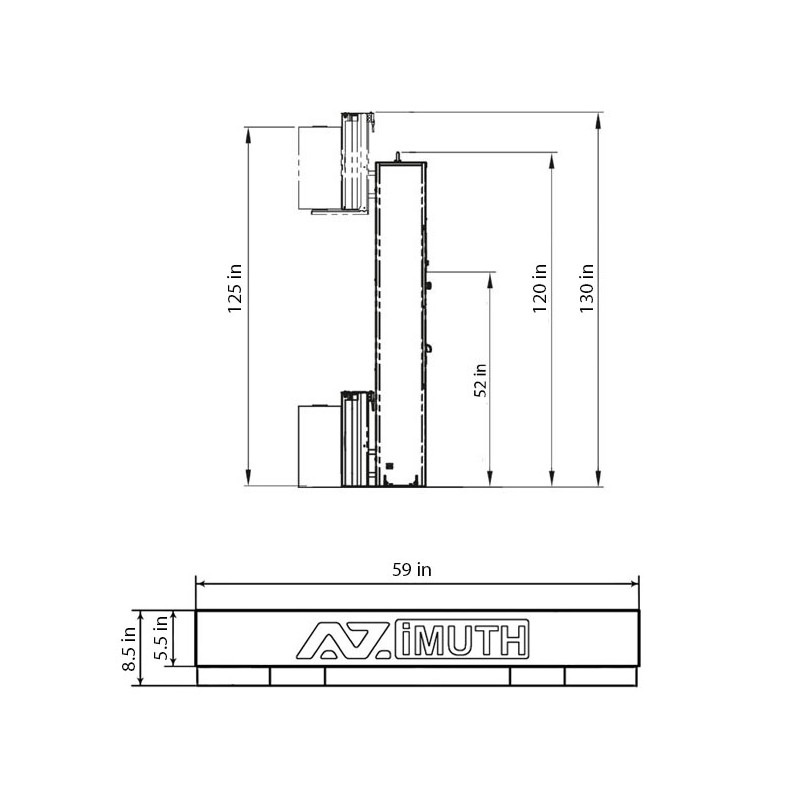

Pallet Wrapper Dimensions
| Max Skid Size | 85"x85"x115" |
| Wrap Height | Up to 75 in |
| Load Capacity | Up to 5 000 LBS |
| Turntable Speed | from 4 to 12 RPM |
| Stretch film Tension | Manual, 20% - 160% |
| Production Rate | Up to 20 Loads Per Hour |
| Turntable | 59" Diameter, Diamond Plate, Low profile, Chain Drive |
| Power Consumption | 115V, 15A (Grounded Outlet Required) |
| Machine Height | 80 in |
| Type | Semi-Automatic |
| Stretch Wrap | 3 in core Stretch Wrap rolls. Up to 20 in height. Up to 35 lbs |
| Height Sensing | Standard Photo Eye Sensor - reads loads 25 in or taller. May not work with red, blue and black surfaces (use Manual Mode or Mode with Present Height). |
| Permitted Ambient Conditions | Indoor Usage only. |
| Temperature | between 41°F and 113°F. To work below 41°F need to be FREEZER Version. |
| Atmospheric Conditions | not greater than 50% at a temperature of 104°F and 90% at a temperature not over 68°F (without condensation) |
| Loading Option | Forklift only |
| Material | Steel |
| Package Size | 1st package 130x38x18" 2nd package 60x60x15" |
| Gross Weight | 1st package 400 LBS 2nd package 600 LBS |
| Color | Grey/Red (color may vary) |
| Liftgate Delivery | NO |
| Warranty | 2 years |
| Positioning | Column need to be mounted to the floor. Screw not include. Select the appropriate mounting screws depending on the flooring. |
