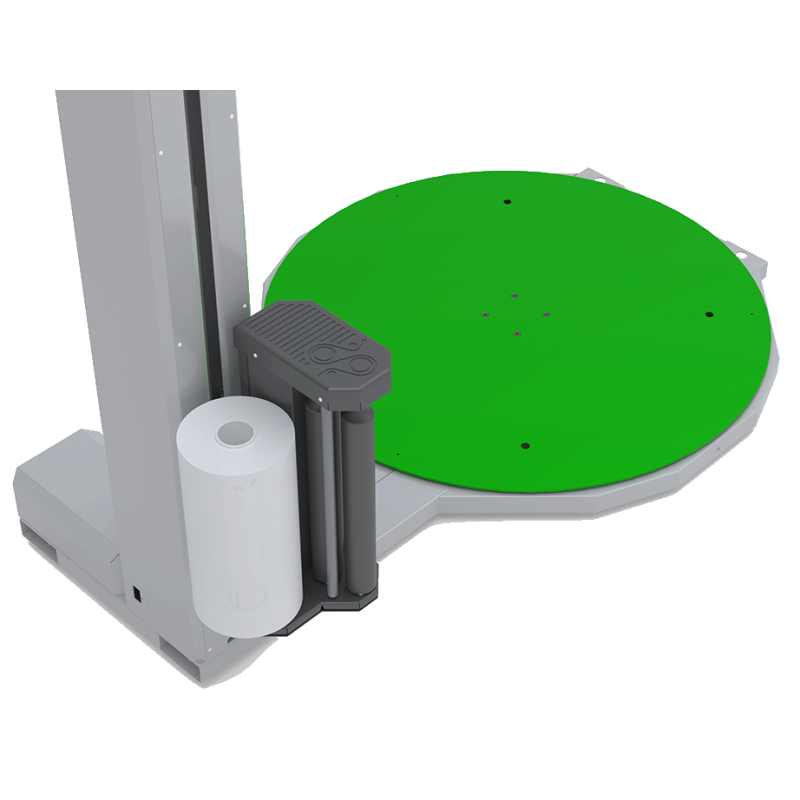

AZIMUTH Powered Pre-Stretch Carriage Option for Pallt Wrapper
AZIMUTH Powered Pre-Stretch Carriage Option for Pallt Wrapper
Fixed 250% Power Pre-Stretch Film Carriage
The powered film carriage mechanically pre-stretches the film at a fixed 250% ratio, helping reduce film consumption and improve load stability.
The pre-stretch ratio is determined by the installed sprocket configuration. It cannot be adjusted from the control panel but may be changed by replacing the adjustment sprocket with the appropriate option.
Film tension can be adjusted separately to achieve the desired wrapping force.
Key features:
- Mechanically fixed 250% pre-stretch ratio
- Pre-stretch ratio can be changed by replacing the adjustment sprocket
- Separately adjustable film tension
- Consistent film stretch throughout the wrapping cycle
- Reduced film consumption
- Improved load containment and stability
Option – Powered Pre-Stretch Carriage
Allows the use of 20″ machine stretch film.
Custom-made option. Lead time: up to 3 business weeks.
The price of the Powered Pre-Stretch Carriage option is $1400 in addition to the standard price of the pallet wrapper.
| SKU | TO CART |
|---|---|
Fixed 250% Power Pre-Stretch Film Carriage
The powered film carriage mechanically pre-stretches the film at a fixed 250% ratio, helping reduce film consumption and improve load stability.
The pre-stretch ratio is determined by the installed sprocket configuration. It cannot be adjusted from the control panel but may be changed by replacing the adjustment sprocket with the appropriate option.
Film tension can be adjusted separately to achieve the desired wrapping force.
Key features:
- Mechanically fixed 250% pre-stretch ratio
- Pre-stretch ratio can be changed by replacing the adjustment sprocket
- Separately adjustable film tension
- Consistent film stretch throughout the wrapping cycle
- Reduced film consumption
- Improved load containment and stability
| Stretch film Tension | Powered Pre-stretch (Fixed 250%) |
| Stretch Wrap | 3 in core Stretch Wrap rolls. Up to 20 in height. Up to 35 lbs |
| Film Width | 12"-20" |
