AZIMUTH 3030R High Profile Pallet Wrapper (85"x75")

AZIMUTH 3030R High Profile Pallet Wrapper (85"x75")

AZIMUTH 3030R

Split System Design to Wrap Oversized SKIDs.
  • High Profile Pallet Wrapper
  • Wraps to 20 loads per Hour, Up to 12 RPM
  • Wrap up to 85 "x 85" x 75" pallets
  • Up to 4 000 LBS
  • PLC Control Panel (11 Wrapping Functions, 99 Wrapping Programs)
  • Photo Sensor Height Detection System
  • Applicable with Forklift only

Optimal Pallet Wrapper for overlength Pallet


MAX SKID 85 x 85 x 75"
Up to 4 000 LBS
75"
80"
85"
85"

PLC Control Panel

Digital Powerful Control
  • Up, Up/Down and Manual Cycles
  • Control 10 Wrapping Parameters
  • Save 99 Wrapping Programs for Different King of SKID
  • Emergency Stop Button

Split System Pallet Wrapper


Сolumn is positioned separately from the Turnable
Distance can be from 2 to 8 feet.
(Column must be bolted to the floor)

Only for $7,240.00

For Palletwrapper on the Stock.

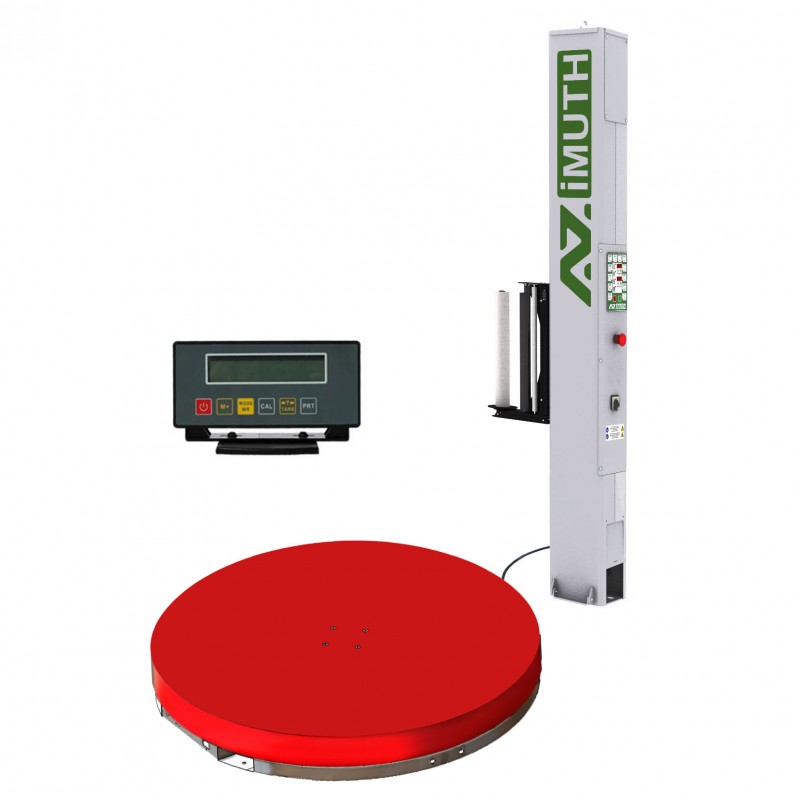

Factory build-in Scale option - Allows Simply and Easy to weight your Shipments (sold separately).
Images
+
AZIMUTH 3030R High Profile Pallet Wrapper (85"x75")
AZIMUTH 3030R High Profile Pallet Wrapper (85"x75")
AZIMUTH 3030R High Profile Pallet Wrapper (85"x75")
AZIMUTH 3030R High Profile Pallet Wrapper (85"x75")

AZIMUTH 3030R High Profile Pallet Wrapper (85"x75")

AZ-3030R
+
Description

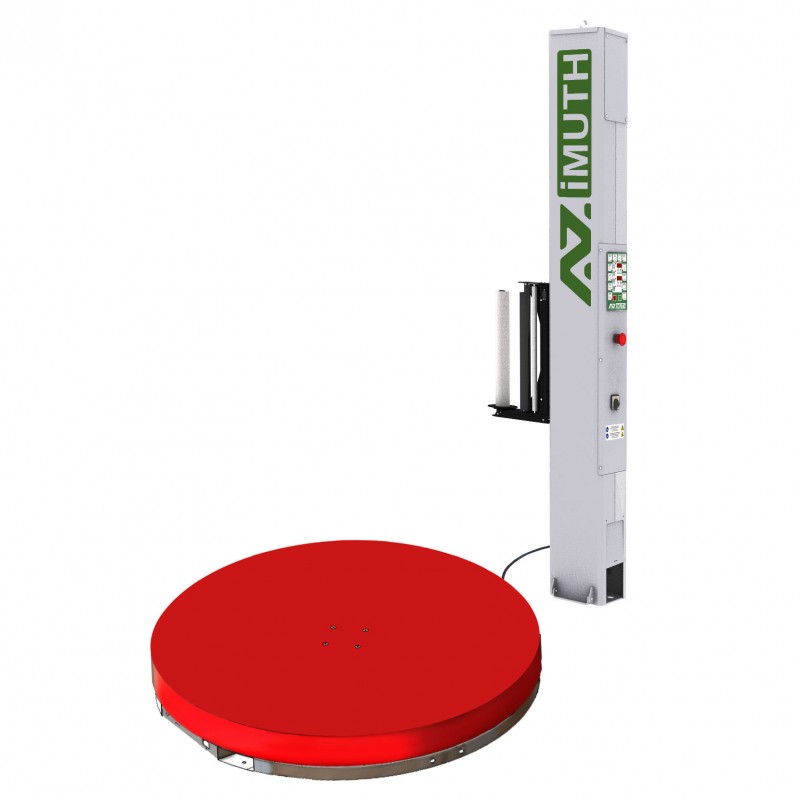

AZIMUTH 3030R Split Design Round High Profile Pallet Wrapper.

The AZIMUTH 3030R is a High-Profile split-design stretch wrapping machine with a 59" round high-profile turntable, 75-inch wrap height, and 4,000 lb load capacity.

Watch Video

AZIMUTH-3030 Features:

  • Adjust from 20% to 150% stretch Chain drive. Compatible with 3" core stretch film rolls (up to 20" height).
  • Max Pallet size - 85 x 85 x 75"
  • Load Capacity - up to 4,000 LBS
  • Digital control panel. Selection of wrapping parameters and saving it in the program memory.
  • Convenient photo eye - allows the operator to walk away.
  • 115 volt, 15A

More details

Prices

AZIMUTH 3030R SPLIT SYSTEM PALLET WRAPPER
TURNTABLE IS ROUND AND RED
Lead time is up to 2 business days
Regular Price is $7,590
PRICE PER ITEM
from 1 item
$7,240.00
Quantity (items):
QTY
Total:
SCALE OPTION
Can be used with the Receipt Printer ONLY. (Printer not included)
CANNOT BE PURCHASED SEPARATELY. Installation only in production
+
SCALE Option for Turntable
5000 LBS
SKU: AZ-TSCALE
Starting at $1,100.00
AZIMUTH 3030R SPLIT SYSTEM PALLET WRAPPER
TURNTABLE IS ROUND AND RED
Lead time is up to 2 business days
Regular Price is $7,590
SKUMAX. SKID SIZE
DIMENSIONS
LOAD CAPACITY
PRICE
SALETO CART
AZ-3030R 85" x 85" x 75" 59" DIA 5000 LBS $7,590 $7,240.00
SCALE OPTION
Can be used with the Receipt Printer ONLY. (Printer not included)
CANNOT BE PURCHASED SEPARATELY. Installation only in production
SKULOAD CAPACITY
PRECISION
INDICATOR
SALETO CART
AZ-TSCALE SCALE Option for Turntable 5000 LBS 1 LBS LCD $1,100.00

AZIMUTH 3030R Split System Round High Profile Stretch Wrapper

The AZIMUTH-3030R Pallet Wrapping Machine - Best Solution To Wrap Oversize SKIDs

  • The maximum amount of adjustment in the base.
  • It's very easy to install, simple to operate, and virtually zero maintenance.
  • The turntable can be moved by a Forklift at the Front and at the Rear side of the Turntable.
  • Digital control panel. Selection of 10 wrapping parameters and save them in the 99 programs.
  • Max SKID Size:  85"x85"x75"
  • Wrap Height:  UP to 75"
  • Load Capacity:  up to 4,000 LBS
  • Turntable Speed Adjustable:  from 4 to 12 RPM
  • Stretch Film Tension:  manual, 20% - 160%
  • Production Rate: 10-20 Loads Per Hour
  • Turntable: 59" Diameter, Diamond Plate Top, High Profile, Chain Drive
  • Use with Machine Stretch Wrap  3 in core Stretch Wrap rolls. Up to 20 in height
  • Convenient photo eye - allows the operator to walk away. Standard Photo Eye Sensor - reads loads 15 in or taller. May not work with red, blue, and black surfaces (use Manual Mode or Mode with Present Height).
  • Permitted Ambient Conditions: Indoor Usage only.
  • Temperature: 41°F and above. To work below this temperature need to have the FREEZER Version.
  • Atmospheric Conditions: not greater than 50% at a temperature of 104°F and 90% at a temperature not over 68°F (without condensation)
  • The column must be bolted to the floor. Screws for mounting of the column are not supplied. Select the appropriate mounting screws depending on the flooring. If you have a concrete floor, we recommend using 6 anchor bolts, 3/8 inch diameter by 2 or 2.5 inches long.
  • Color may vary
  • NO liftgate delivery

  2 Years Warranty. Made in USA.

Control Panel Functions

AZIMUTH 3030R Pallet Wrapper Control Panel
  • Separate numbers of Enforced Wraps at the bottom/top SKID.
  • Adjusting the rotation speed of the Pallet Wrapper Turntable
  • Customization SKID wrapping height (if necessary)
  • Soft Start and Soft Stop at the home position of the Pallet Wrapper Turntable
  • Setting the carriage up/down moving speed
  • 99 Customized Wrapping Programs Profiles memory
  • Protection from change Wrapping Parameters
  • Sound Signals at Start and End of Wrapping Cycles
  • Setting the upper Overlap the top of the cargo
  • Function to wrap SKID using plastic or corrugated Top Cover
  • Emergency Stop Button
  • Active Compression Protection System
  • Manual Wrapping Mode

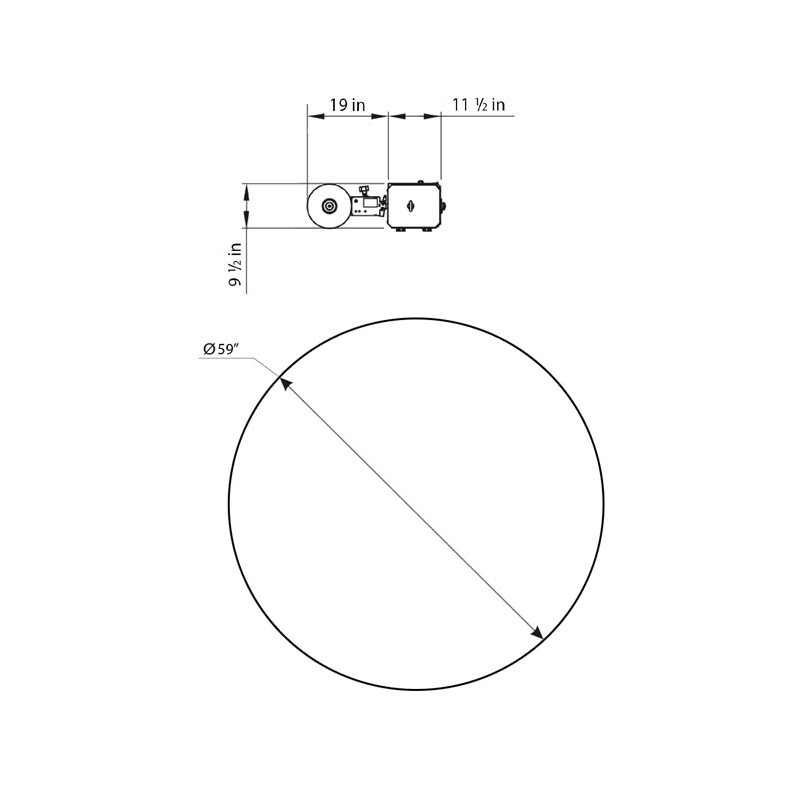

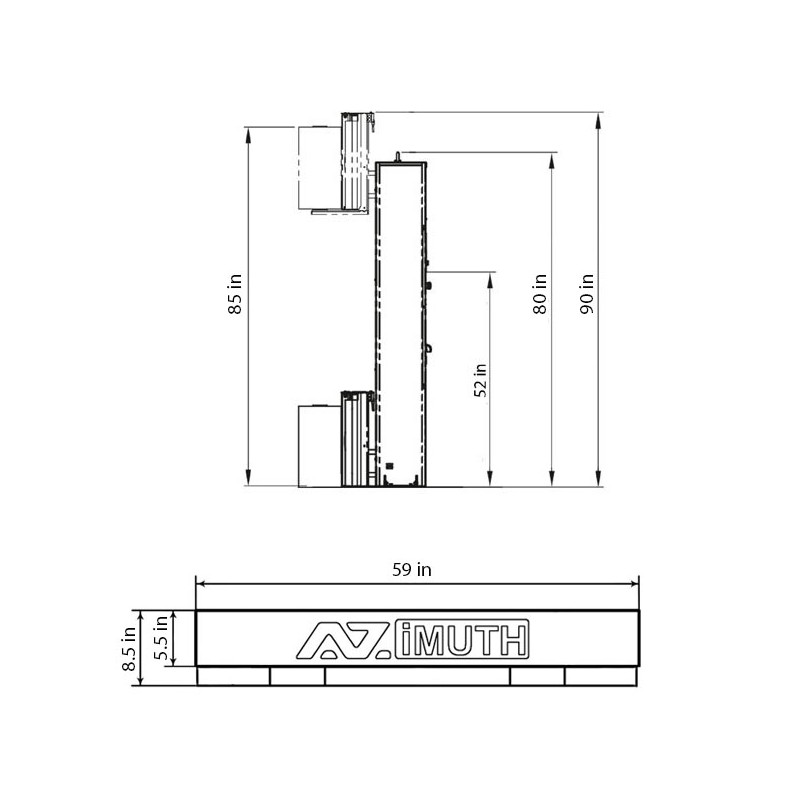

Pallet Wrapper Dimensions

AZIMUTH 3030R High Profile Pallet Wrapper Dimensions

Max Skid Size85"x85"x75"
Wrap HeightUp to 75 in
Load CapacityUp to 5 000 LBS
Turntable Speedfrom 4 to 12 RPM
Stretch film TensionManual, 20% - 160%
Production RateUp to 20 Loads Per Hour
Turntable59" Diameter, Diamond Plate, Low profile, Chain Drive
Power Consumption115V, 15A
Machine Height80 in
TypeSemi-Automatic
Stretch Wrap3 in core Stretch Wrap rolls. Up to 20 in height. Up to 35 lbs
Height SensingStandard Photo Eye Sensor - reads loads 25 in or taller. May not work with red, blue and black surfaces (use Manual Mode or Mode with Present Height).
Permitted Ambient ConditionsIndoor Usage only.
Temperaturebetween 41°F and 113°F. To work below 41°F need to be FREEZER Version.
Atmospheric Conditionsnot greater than 50% at a temperature of 104°F and 90% at a temperature not over 68°F (without condensation)
Loading OptionForklift only
MaterialSteel
Package Size1 package 90x38x18" 2 package 60x60x15"
Gross Weight1 package 320 LBS 2 package 600 LBS
ColorGrey/Red (color may vary)
Liftgate DeliveryNO
Warranty2 years
PositioningColumn need to be mounted to the floor. Screw not include. Select the appropriate mounting screws depending on the flooring.
