- High Profile Pallet Wrapper
- Wraps to 20 loads per Hour, Up to 12 RPM
- Wrap up to 96 "x 96" x 75" pallets
- Up to 5 000 LBS
- PLC Control Panel (11 Wrapping Functions, 99 Wrapping Programs)
- Photo Sensor Height Detection System
- Applicable with Forklift only
AZIMUTH 3040 High Profile Pallet Wrapper (96"x75")
AZIMUTH 3040 High Profile Pallet Wrapper (96"x75")
AZIMUTH 3040 High Profile Pallet Wrapper (96"x75")
AZ-3040

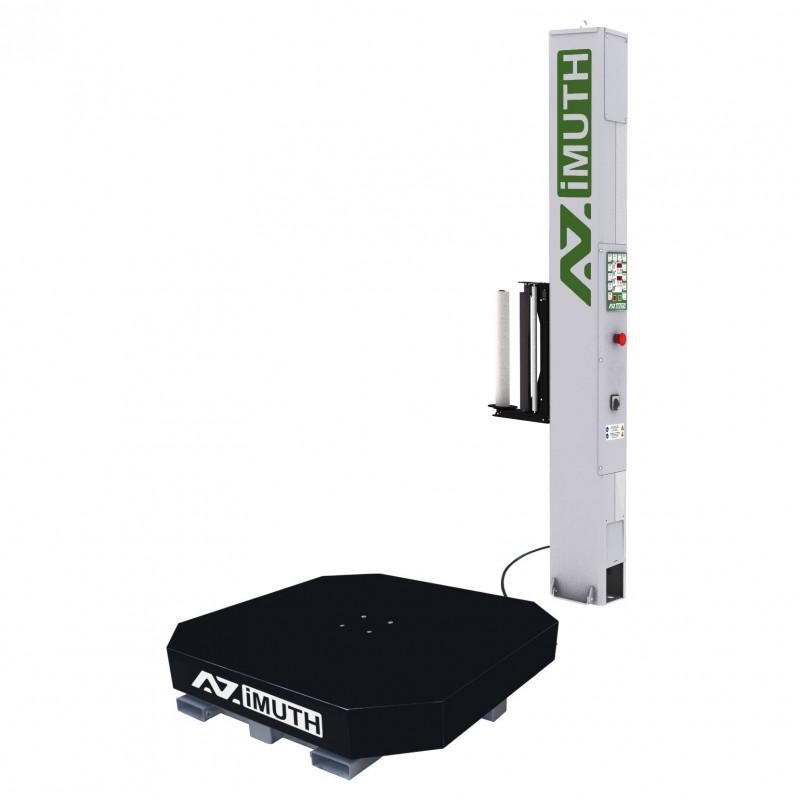

AZIMUTH 3040 Split System High Profile Pallet Wrapper.
The AZIMUTH 3040 is a High-Profile split design stretch wraping machine with a 60"x60" High Profile Turntable and 75-inch wrap height and 5,000 lbs load capacity.
AZIMUTH-3040 Features:
- Adjust from 20% to 150% stretch Chain drive. Compatible with 3" core stretch film rolls (up to 20" height).

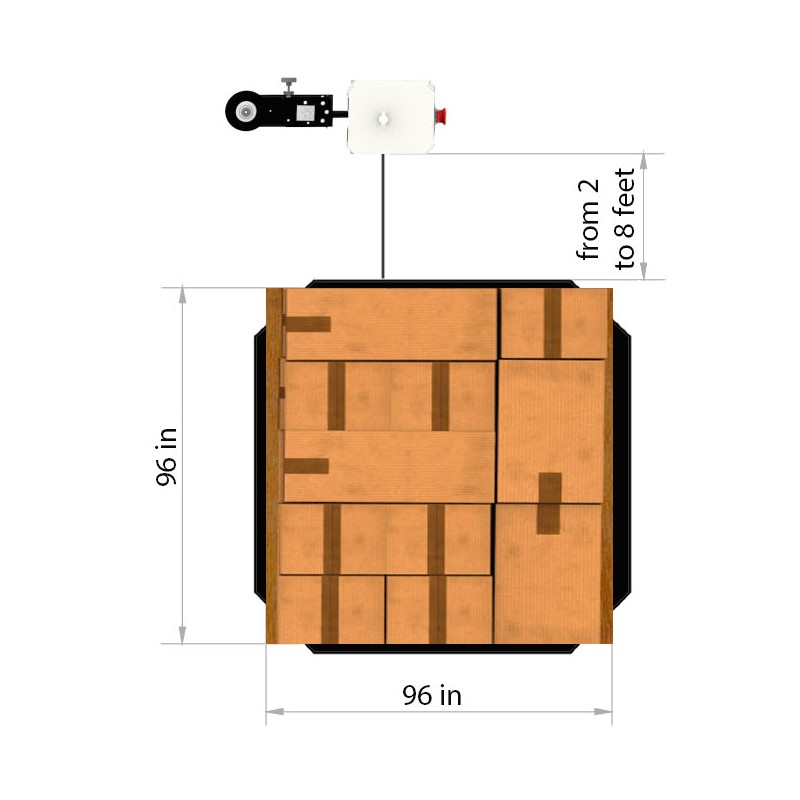

- Max Pallet size - 96 x 96 x 75"
- Load Capacity - up to 5 000 LBS
- Digital control panel. Selection of wrapping parameters and save it in the program memory.
- Convenient photo eye - allow operator to walk away.
- 115 volt, 15A
Prices
AZIMUTH 3040 SPLIT SYSTEM PALLET WRAPPER
Lead time is up to 1 business week
Regular Price is $7,930
Lead time is up to 1 business week
Regular Price is $7,930
PRICE PER ITEM
from 1 item
$7,930.00
Quantity (items):
QTY
Total:
NEW CARRIAGE OPTION
Lead time is up to 4 weeks
Must be purchased with the pallet wrapper.
Each pallet wrapper can be equipped with only one type of film carriage.
Lead time is up to 4 weeks
Must be purchased with the pallet wrapper.
Each pallet wrapper can be equipped with only one type of film carriage.

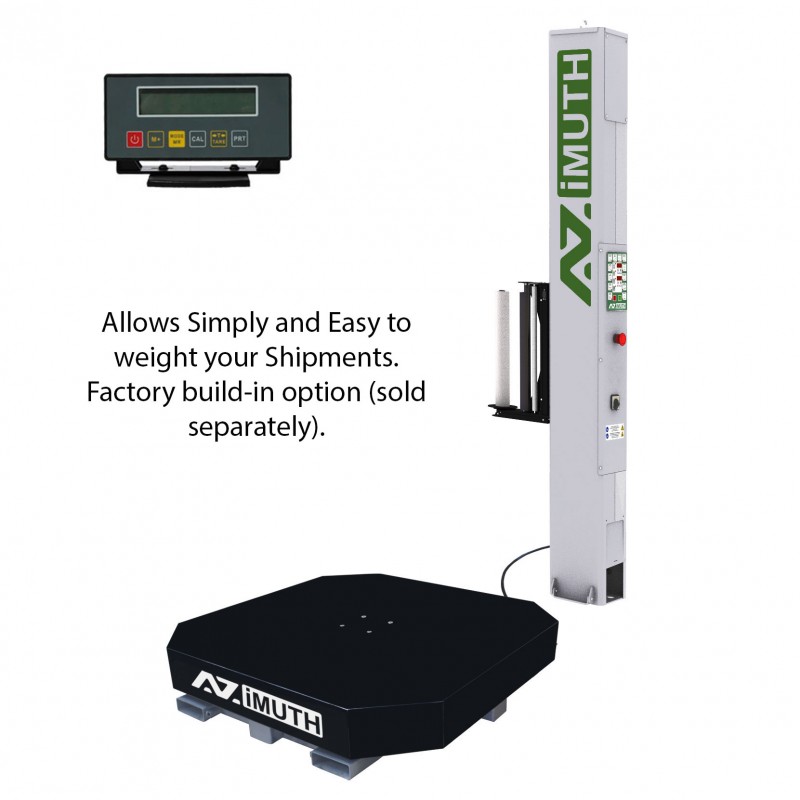

SCALE OPTION
Can to be used with Receipt Printer ONLY. (Printer not include)
CANNOT TO BE PURCHASED SEPARATELY. Installation only in production
Can to be used with Receipt Printer ONLY. (Printer not include)
CANNOT TO BE PURCHASED SEPARATELY. Installation only in production
| SKU | CARRIAGE TYPE | STRETCH RATIO | TENSION SYSTEM | FILM WIDTH | SALE | TO CART | |
|---|---|---|---|---|---|---|---|
| AZ-MB30 |  | Standard Brake | Manual (20%–160%) | Mechanical Tension | 30" | $900.00 | |
| AZ-PS |  | Pre-Stretch | Fixed 250% | Power Pre-Stretch | 20" | $1,400.00 |
| SKU | LOAD CAPACITY | PRECISION | INDICATOR | PRICE | TO CART | |
|---|---|---|---|---|---|---|
| AZ-TSCALE |  | 4000 LBS | 2 LBS | LCD | $1,100.00 |
AZIMUTH 3040 Split System High Profile Stretch Wrapper
The AZIMUTH-3040 Pallet Wrapping Machine - Best Solution To Wrap Oversize SKIDs
- The maximum amount of adjustment in the base.
- Wrap up to 20 loads per hour. Speed adjusts to 12 RPM.
- Max Pallet size - 96" x 96" x 75"
- Load Capacity - up to 5 000 LBS
- Adjust from 20% to 150% stretch. Turntable Chain Drive. Compatible with 3" core stretch film rolls (up to 20" height).
- Digital control panel. Selection of 11 wrapping parameters and save it in the 99 programs.
- Convenient photo eye - allow operator to walk away.
- 115 volt, 15A
- It's very easy to install simple to operate and virtually zero maintenance
- Can be moved by Forklift at the Front and at the Rear side
2 Years Warranty. Made in USA.
| PARAMETER | AZ-3040 |
|---|---|
| Max Skid Size | 96" x 96" x 75" |
| Load Capacity | up to 5 000 LBS |
| Turntable Speed Adjustable | from 4 to 12 RPM |
| Stretch Film Tension | Manual, 0% - 160% |
| Production Rate | 10-20 Loads Per Hour |

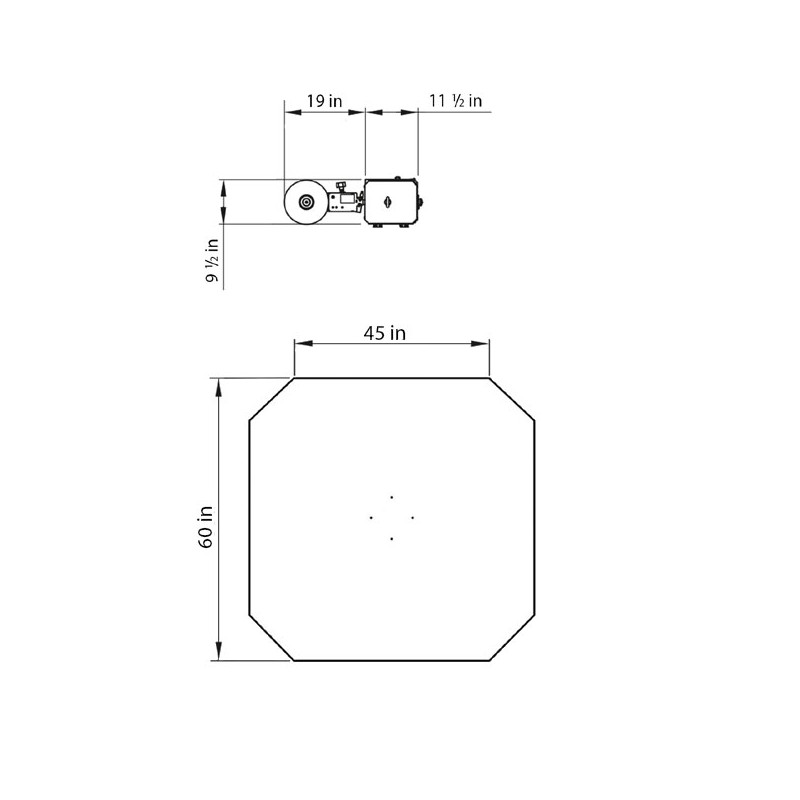

| Turntable | 60"x60", Diamond Plate Top, High Profile |
| Power Consumption | 115V, 15A |

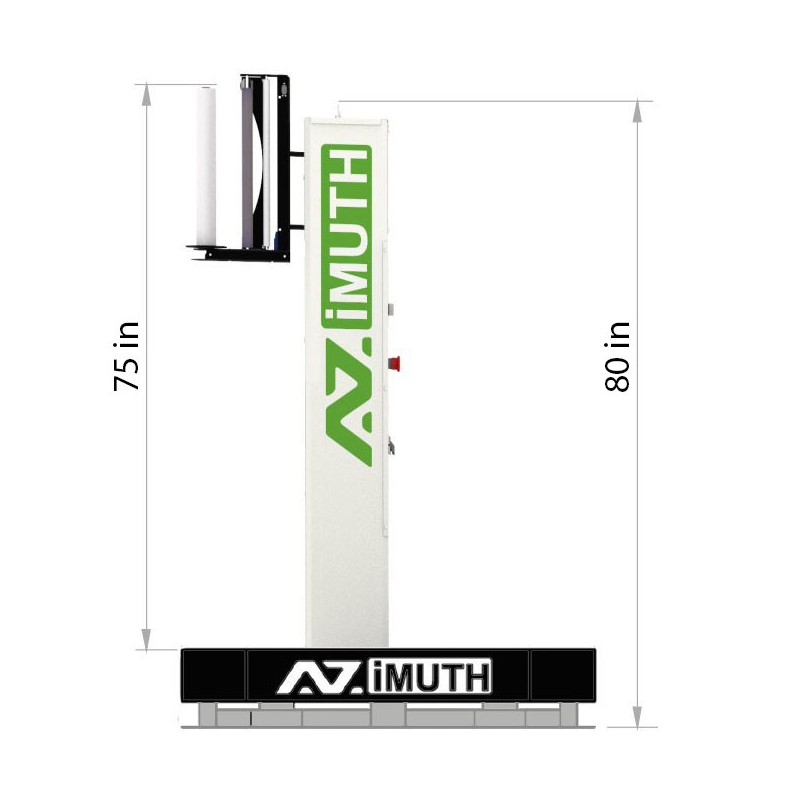

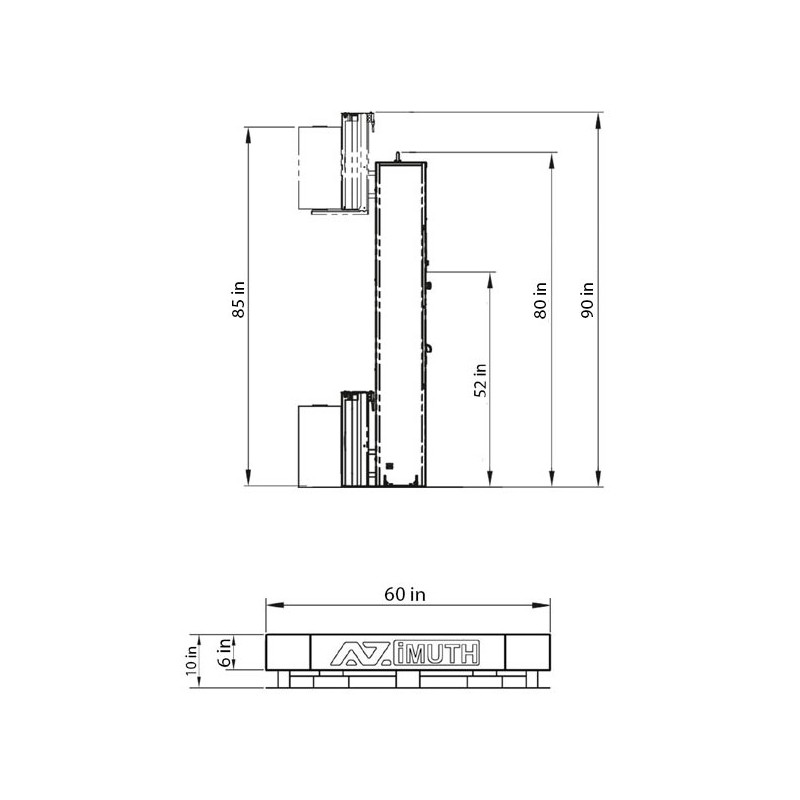

| Machine Height | 80" |
| Package Size | 1 package 90x38x18" 2 package 60x60x15" |
| Net Weight | |
| Gross Weight | 1 package 320 LBS 2 package 600 LBS |
Control Panel Functions
- Separate numbers of Enforced Wraps at bottom/top SKID.
- Adjusting the rotation speed of the Pallet Wrapper Turntable
- Customization SKID wrapping height (if necessary)
- Soft Start and Soft Stop at home position of Pallet Wrapper Turntable
- Setting the carret up/down moving speed
- 99 Customized Wrapping Programs Profiles memory
- Protection from change Wrapping Parameters
- Sound Signals at Start and End of Wrapping cycles
- Setting the upper Overlap the top of the cargo
- Function to wrap SKID using plastic or corrugated Top Cover
- Emergency Stop Button
- Active Compression Protection System
- Manual Wrapping Mode
Column must be bolted to the floor. Screws for mounting of the column are not supplied. Select the appropriate mounting screws depending on the flooring.
If you have a concrete floor, we recommend to use 6 anchor bolts 3/8 inch diameter by 2 or 2.5 inches long.
The pallets with red, blue and black surfaces or with height less then 15" can only be packed in a cycle with a preset height or in manual cycle.
Colors may vary
| Max Skid Size | 96x96x75" |
| Wrap Height | Up to 75" |
| Load Capacity | Up to 5 000 LBS |
| Turntable Speed | from 4 to 12 RPM |
| Stretch film Tension | Manual, 20% - 160% |
| Turntable | 60"x60", Diamond Plate Top, High Profile |
| Machine Height | 80" |
| Package Size | 1 package 90x38x18" 2 package 60x60x15" |
| Gross Weight | 1 package 320 LBS 2 package 600 LBS |
