AZIMUTH 3041 High Profile Pallet Wrapper (96"x94")

AZIMUTH 3041 High Profile Pallet Wrapper (96"x94")

AZIMUTH 3041

Split System Design to Wrap Oversized SKIDs.
  • High Profile Pallet Wrapper
  • Wraps to 20 loads per Hour, Up to 12 RPM
  • Wrap up to 96 "x 96" x 94" pallets
  • Up to 5 000 LBS
  • PLC Control Panel (11 Wrapping Functions, 99 Wrapping Programs)
  • Photo Sensor Height Detection System
  • Applicable with Forklift only

Optimal Pallet Wrapper for overlength Pallet


MAX SKID 96 x 96 x 94"
Up to 5 000 LBS
94"
100"
96"
96"

PLC Control Panel

Digital Powerful Control
  • Up, Up/Down and Manual Cycles
  • Control 10 Wrapping Parameters
  • Save 99 Wrapping Programs for Different King of SKID
  • Emergency Stop Button

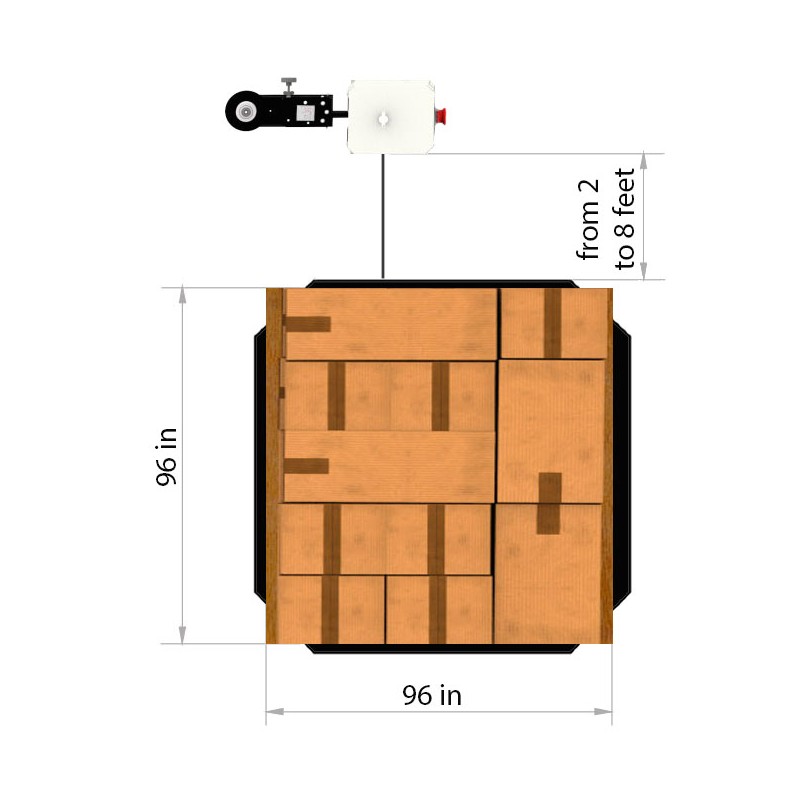

Split System Pallet Wrapper


Сolumn is positioned separately from the Turnable
Distance can be from 2 to 8 feet.
(Column must be bolted to the floor)

Only for $8,440.00

For Palletwrapper on the Stock.

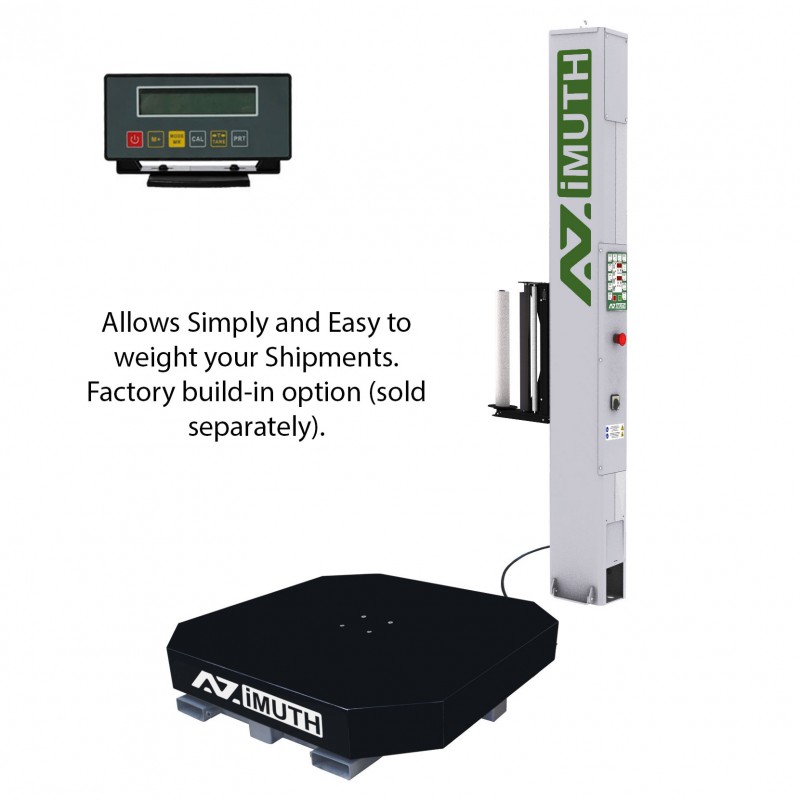

Factory build-in Scale option - Allows Simply and Easy to weight your Shipments (sold separately).
Images
+
AZIMUTH 3041 High Profile Pallet Wrapper
AZIMUTH 3041 High Profile Pallet Wrapper
AZIMUTH 3041 High Profile Pallet Wrapper
AZIMUTH 3041 High Profile Pallet Wrapper
AZIMUTH 3041 High Profile Pallet Wrapper
AZIMUTH 3041 High Profile Pallet Wrapper
AZIMUTH 3041 High Profile Pallet Wrapper

AZIMUTH 3041 High Profile Pallet Wrapper (96"x94")

AZ-3041
+
Description

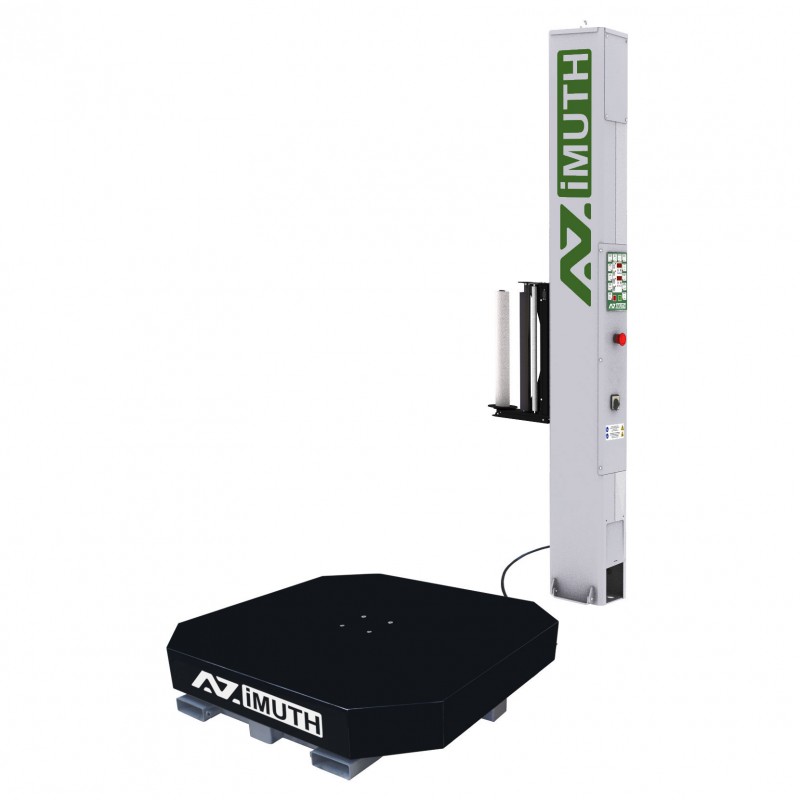

AZIMUTH 3041 Split System High Profile Pallet Wrapper.

The AZIMUTH 3041 is a High-Profile split design stretch wraping machine with a 60"x60" High Profile Turntable and 94-inch wrap height and 4,000 lbs load capacity.

Watch Video

AZIMUTH-3041 Features:

  • Adjust from 20% to 150% stretch Chain drive. Compatible with 3" core stretch film rolls (up to 20" height).
  • Max Pallet size - 96 x 96 x 94"
  • Load Capacity - up to 5 000 LBS
  • Digital control panel. Selection of wrapping parameters and save it in the program memory.
  • Convenient photo eye - allow operator to walk away.
  • 115 volt, 15A

More details

Prices

AZIMUTH 3041 SPLIT SYSTEM PALLET WRAPPER
Shipping next business day
Regular Price is $8,440


PRICE PER ITEM
from 1 item
$8,440.00
Quantity (items):
QTY
Total:
SCALE OPTION
Can to be used with Receipt Printer ONLY (Printer not include)
CANNOT TO BE PURCHASED SEPARATELY. Installation only in production
+
SCALE Option for Turntable
4000 LBS
SKU: AZ-TSCALE
Starting at $1,100.00
AZIMUTH 3041 SPLIT SYSTEM PALLET WRAPPER
Shipping next business day
Regular Price is $8,440


SKUMAX. SKID SIZE
DIMENSIONS
LOAD CAPACITY
PRICE
SALETO CART
AZ-3041 96" x 96" x 94" 60" x 60" 5000 LBS $8,440 $8,440.00
SCALE OPTION
Can to be used with Receipt Printer ONLY (Printer not include)
CANNOT TO BE PURCHASED SEPARATELY. Installation only in production
SKULOAD CAPACITY
PRECISION
INDICATOR
PRICETO CART
AZ-TSCALE SCALE Option for Turntable 4000 LBS 1 LBS LCD $1,100.00

AZIMUTH 3041 Split System High Profile Stretch Wrapper

The AZIMUTH-3041 Pallet Wrapping Machine - Best Solution To Wrap Oversize SKIDs

  • The maximum amount of adjustment in the base.
  • Wrap up to 20 loads per hour. Speed adjusts to 12 RPM.
  • Max Pallet size - 96" x 96" x 94"
  • Load Capacity - up to 5 000 LBS
  • Adjust from 20% to 150% stretch. Turntable Chain Drive. Compatible with 3" core stretch film rolls (up to 20" height).
  • Digital control panel. Selection of 11 wrapping parameters and save it in the 99 programs.
  • Convenient photo eye - allow operator to walk away.
  • 115 volt, 15A
  • It's very easy to install simple to operate and virtually zero maintenance
  • Can be moved by Forklift at the Front and at the Rear side

2 Years Warranty. Made in USA.

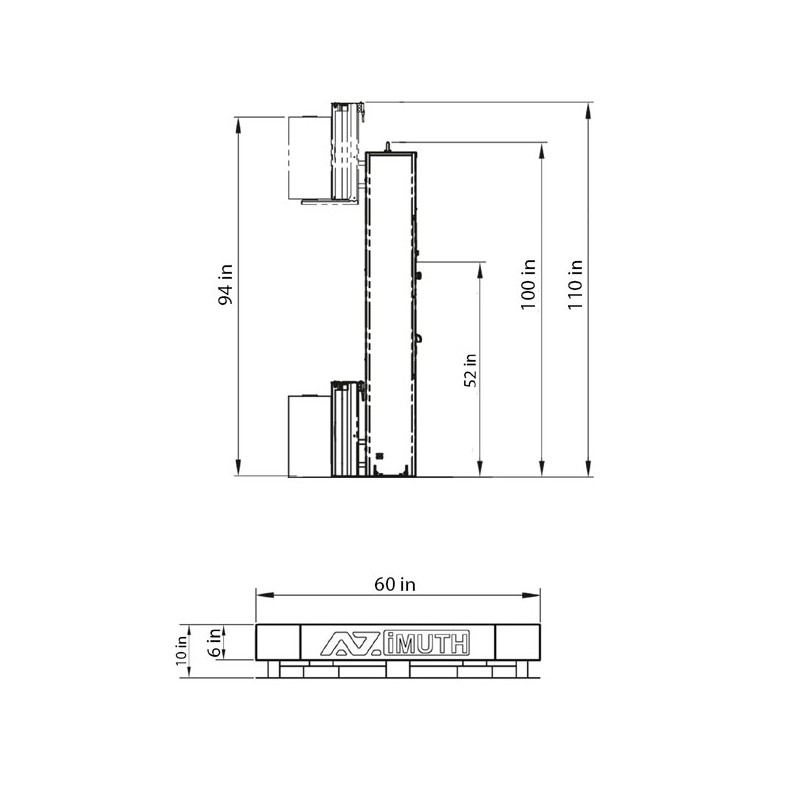

Spec AZIMUTH-3041 Pallet Wrappers
PARAMETERAZ-3041
Max Skid Size96" x 96" x 94"
Load Capacityup to 5 000 LBS
Turntable Speed Adjustablefrom 4 to 12 RPM
Stretch Film TensionManual, 0% - 160%
Production Rate10-20 Loads Per Hour
Turntable60"x60", Diamond Plate Top, High Profile
Power Consumption115V, 15A

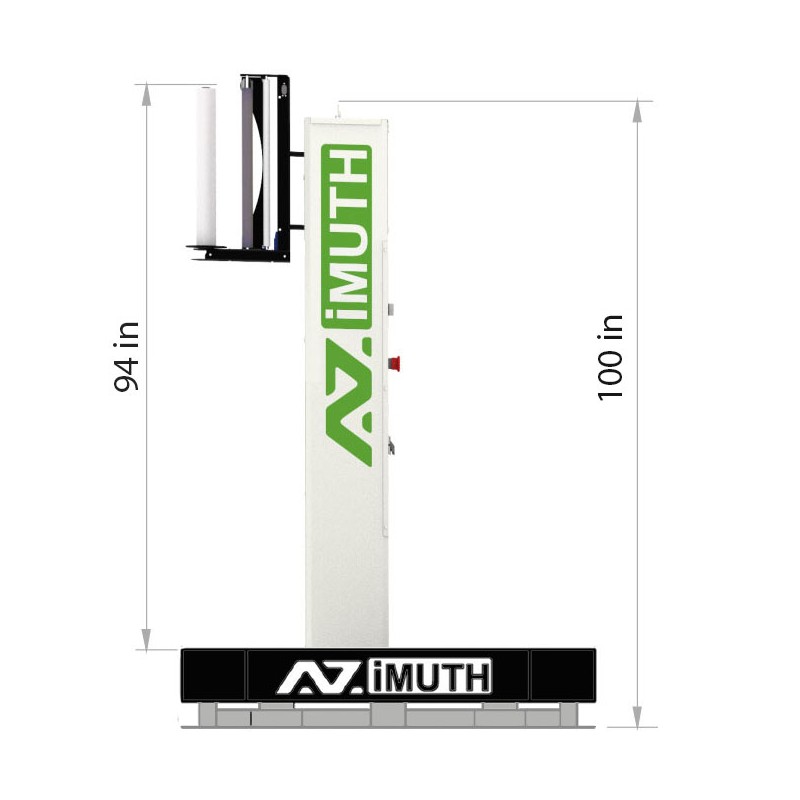

Machine Height100"
Package Size1 package 111x38x18"
2 package 60x60x15"
Net Weight
Gross Weight1 package 360 LBS
2 package 600 LBS

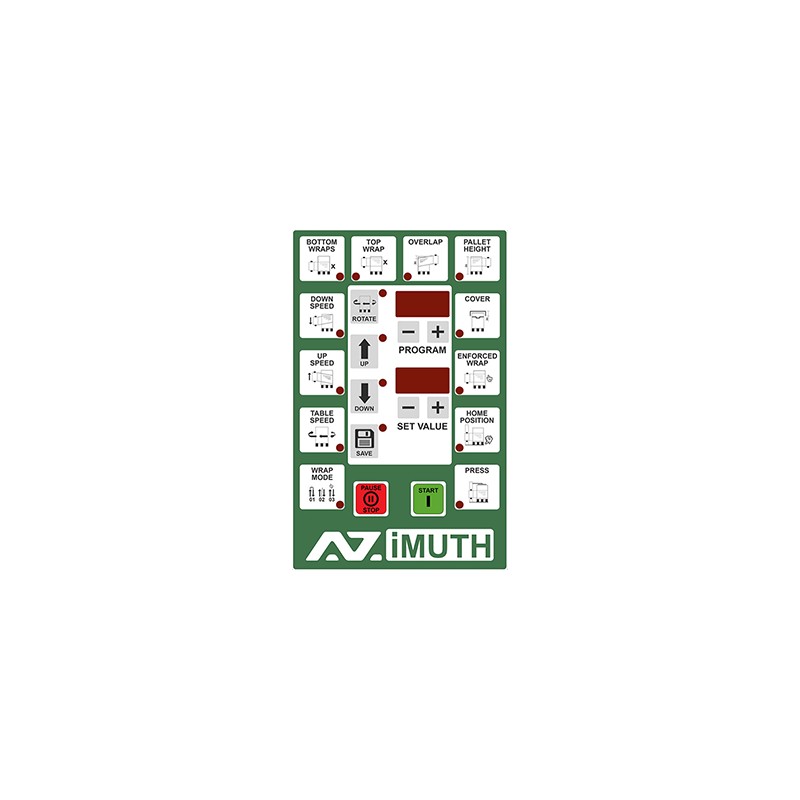

Control Panel Functions

AZIMUTH 3031 Pallet Wrapper Control Panel
  • Separate numbers of Enforced Wraps at bottom/top SKID.
  • Adjusting the rotation speed of the Pallet Wrapper Turntable
  • Customization SKID wrapping height (if necessary)
  • Soft Start and Soft Stop at home position of Pallet Wrapper Turntable
  • Setting the carret up/down moving speed
  • 99 Customized Wrapping Programs Profiles memory
  • Protection from change Wrapping Parameters
  • Sound Signals at Start and End of Wrapping cycles
  • Setting the upper Overlap the top of the cargo
  • Function to wrap SKID using plastic or corrugated Top Cover
  • Emergency Stop Button
  • Active Compression Protection System
  • Manual Wrapping Mode

Column must be bolted to the floor. Screws for mounting of the column are not supplied. Select the appropriate mounting screws depending on the flooring.

If you have a concrete floor, we recommend to use 6 anchor bolts 3/8 inch diameter by 2 or 2.5 inches long.


The pallets with red, blue and black surfaces or with height less then 15" can only be packed in a cycle with a preset height or in manual cycle.

Colors may vary

Max Skid Size96x96x94"
Wrap HeightUp to 94"
Load CapacityUp to 5 000 LBS
Turntable Speedfrom 4 to 12 RPM
Stretch film TensionManual, 20% - 160%

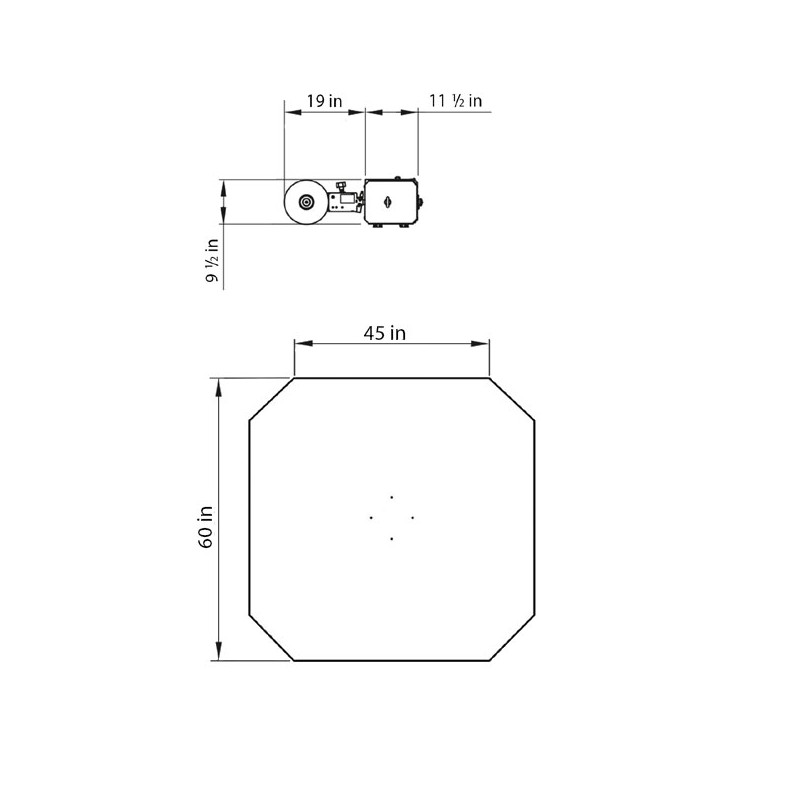

Turntable60"x60", Diamond Plate Top, High Profile
Machine Height100"
Package Size1 package 111x38x18" 2 package 60x60x15"
Gross Weight1 package 360 LBS 2 package 600 LBS
