AZIMUTH 3021 Low Profile Pallet Wrapper (71"x104")

AZIMUTH 3021 Low Profile Pallet Wrapper (71"x104")

AZIMUTH-3021

Semi-Automatic Pallet Wrapping Machine
  • Wraps to 20 loads per Hour, Up to 12 RPM
  • Max SKID Size 62 x 62 x 104", Up to 4000 LBS
  • PLC Control Panel (11 Wrapping Functions, 10 Wrapping Programs)
  • Photo Sensor Height Detection System
  • Manual Adjusts to 150% Stretch
  • 115 volt, 15 amp.

  Watch Video

Optimal Palletwrapper


MAX SKID 62 x 62 x 104"
Up to 4 000 LBS
104"
103"
62"
62"

PLC Control Panel

Digital Powerful Control
  • Up, Up/Down and Manual Cycles
  • Control 10 Wrapping Parameters
  • Save 99 Wrapping Programs for Different King of SKID
  • Emergency Stop Button

Reliable Construction

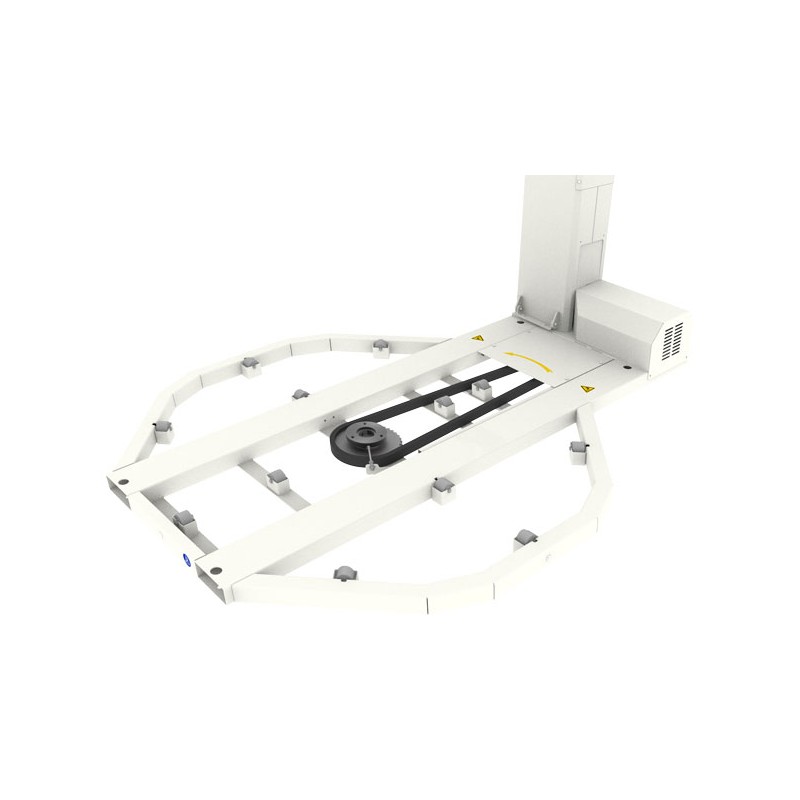

  • Chain Drive Turntable
  • Simple Maintenance
  • Reliable Support Wheels

All Spare Part are on the Stock

Ease Movement

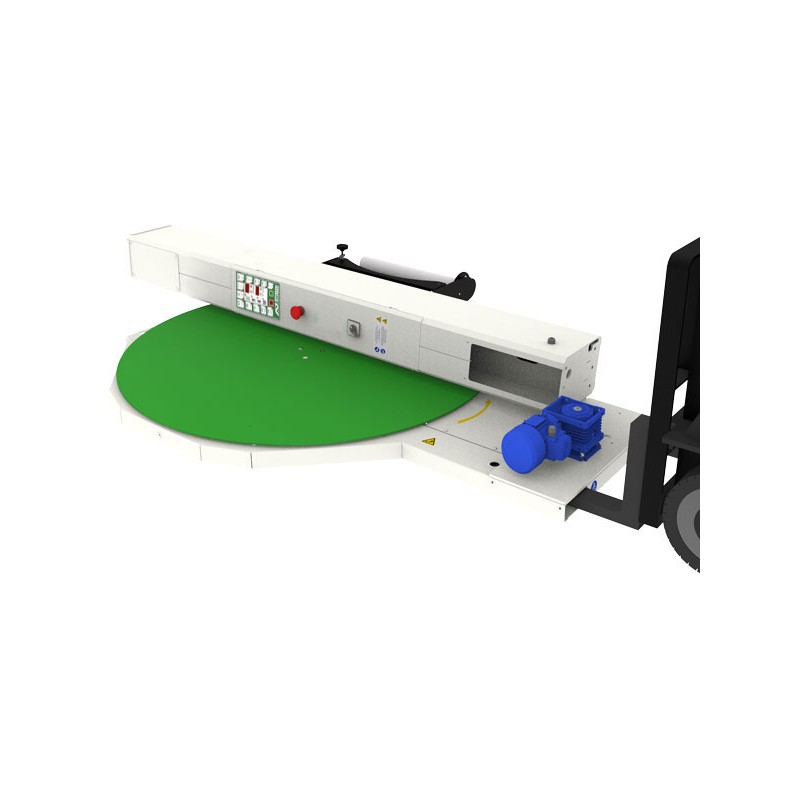

  • Transportation Holes at Front and at the Rear of Frame
  • Simply Moving by Forklift
  • Low Delivery Cost

Only for $7,290.00

For Palletwrapper on the Stock.

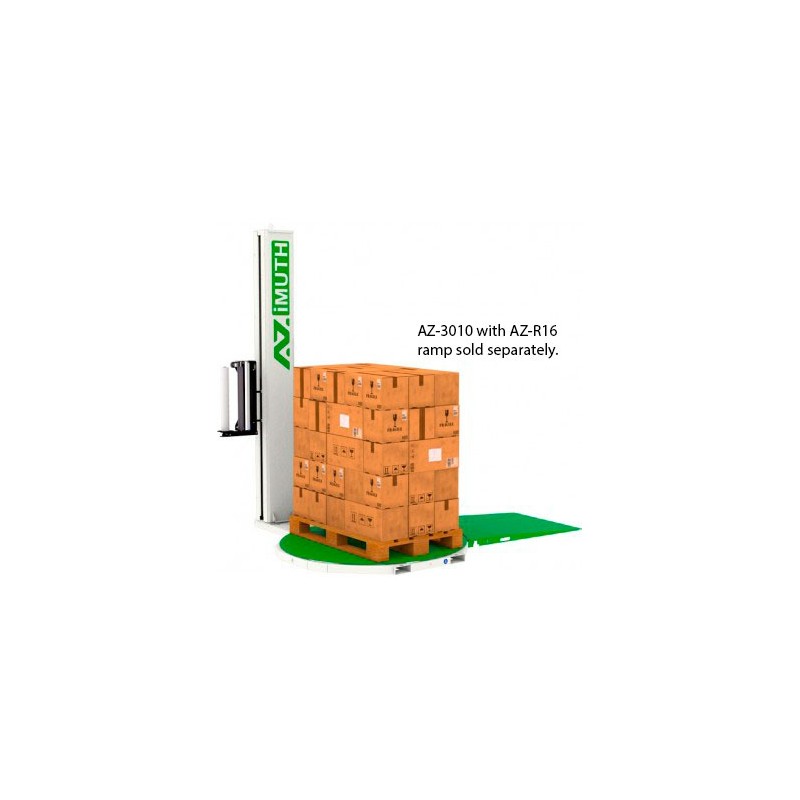

Additional Option - Loading Ramp to use with Pallet Jack (sold separately)
Images
+
AZIMUTH-3010 Pallet Wrapper
AZIMUTH 3010 Low Profile Pallet Wrapper
AZIMUTH-3010 Pallet Wrapper
AZIMUTH-3010 Pallet Wrapper
AZIMUTH 3010 Low Profile Pallet Wrapper

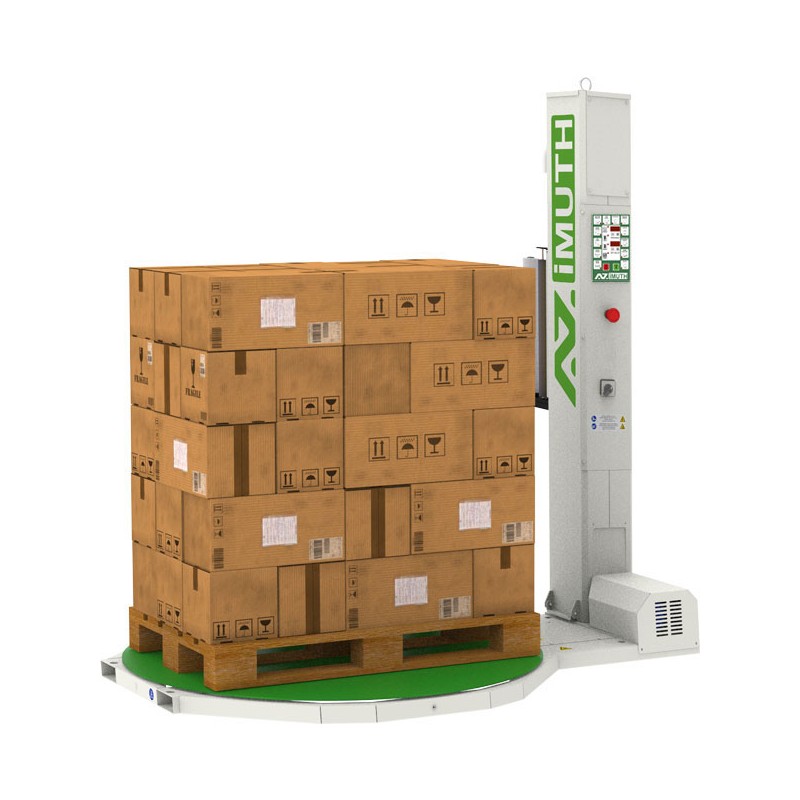

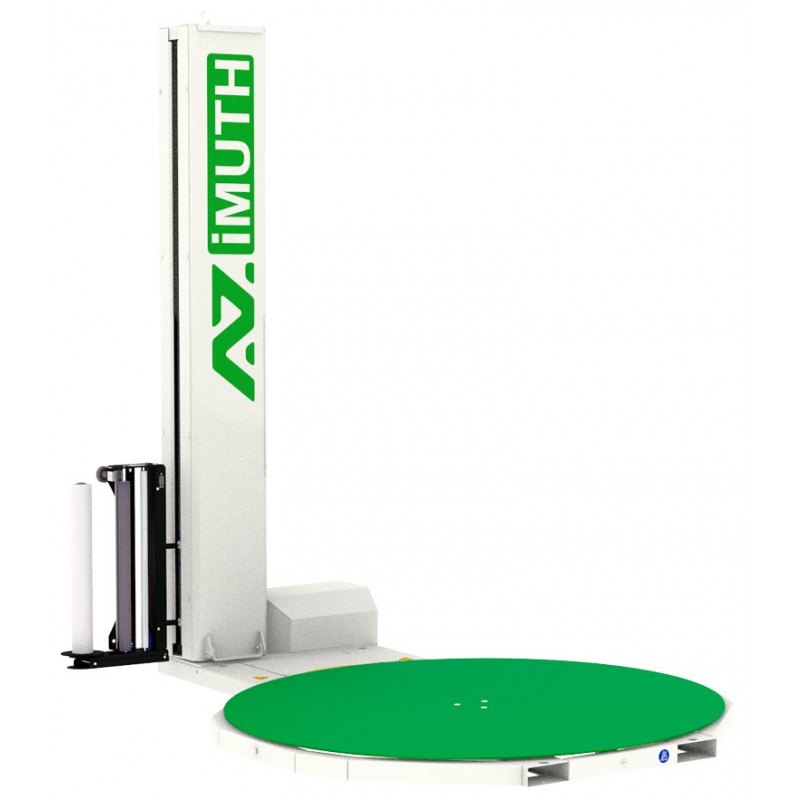

AZIMUTH 3021 Low Profile Pallet Wrapper

AZIMUTH 3021 Low Profile Pallet Wrapper (71"x104")

AZ-3021
+
Description

AZIMUTH 3021 Pallet Wrapper.

The AZIMUTH 30211 is a low-profile stretch wrapper with a 71-inch diameter turntable and 104-inch wrap height and 4,000 lbs load capacity.

Watch Video

AZIMUTH-3021 Features:

  • Adjust from 20% to 150% stretch Chain drive. Compatible with 3" core stretch film rolls (up to 20" height)
  • Max Pallet size - 62 x 62 x 104"
  • Load Capacity - up to 4 000 LBS
  • Digital control panel. Selection of wrapping parameters and save it in the program memory.
  • Convenient photo eye - allow operator to walk away.
  • 115 volt, 15A

More details

Prices

SALES! ONLY IN APRIL

PALLET WRAPPER AZIMUTH-3021
Shipping next business day
Regular Price is $8,290


PRICE PER ITEM
from 1 item
$7,290.00
Quantity (items):
QTY
Total:
Option - Scale
Can to be used with Receipt Printer ONLY. (Printer not include)
CANNOT TO BE PURCHASED SEPARATELY. Installation only in production
+
SCALE Option for Pallet Wrapper
4000 LBS
SKU: AZ-CSCALE
Starting at $1,450.00
Option - Loading Ramp
+
Stretch Wrap Machine Entry Ramp
40 x 58 x 3''
SKU: AZ-R16
Starting at $800.00
+
AZIMUTH Long Stretch Wrap Entry Ramp
40 x 98 x 3"
SKU: AZ-LR
Starting at $1,350.00
Option - Freezer
Allow to use Pallet Wrapper in Cold Envirolment
Custom made option Lead time - Up to 2 business week

The price of the FREEZER option will depend on the type of premises, premises temperature and other parameters.
The price for Pallet Wrappers for operating temperature not lower than 32F (0C) - $2,550.00
The price for Pallet Wrappers for operating temperature not lower than 13F (-23C) - $4,550.00
Please contact us to calculate the final price by info@azgroupusa.com or 844-442-9872 ext 1.
SALES! ONLY IN APRIL

PALLET WRAPPER AZIMUTH-3021
Shipping next business day
Regular Price is $8,290


SKUMAX. SKID SIZE
LOAD CAPACITY
PRICE
SALETO CART
AZ-3021 62 x 62 x 104" 4000 LBS $8,290 $7,290.00
Option - Scale
Can to be used with Receipt Printer ONLY. (Printer not include)
CANNOT TO BE PURCHASED SEPARATELY. Installation only in production
SKULOAD CAPACITY
PRECISION
INDICATOR
PRICETO CART
AZ-CSCALE SCALE Option for Pallet Wrapper 4000 LBS 1 LBS LED $1,450.00
Option - Loading Ramp
SKUFOR PALLET JACK
DIMENSIONS
SHPG. WT.
PRICETO CART
AZ-R16 Stretch Wrap Machine Entry Ramp MANUAL ONLY 40 x 58 x 3'' 250 LBS $800.00
AZ-LR AZIMUTH Long Stretch Wrap Entry Ramp MANUAL/ELECTRIC 40 x 98 x 3" 355 LBS $1,350.00
Option - Freezer
Allow to use Pallet Wrapper in Cold Envirolment
Custom made option Lead time - Up to 2 business week

The price of the FREEZER option will depend on the type of premises, premises temperature and other parameters.
The price for Pallet Wrappers for operating temperature not lower than 32F (0C) - $2,550.00
The price for Pallet Wrappers for operating temperature not lower than 13F (-23C) - $4,550.00
Please contact us to calculate the final price by info@azgroupusa.com or 844-442-9872 ext 1.

AZIMUTH 3021 Low Profile Stretch Wrappers

The AZIMUTH-3021 Pallet Wrapping Machine - Best Price and Best Functionality

  • The maximum amount of adjustment in the base.
  • It's very easy to install simple to operate and virtually zero maintenance.
  • Can be moved by Forklift at the Front and at the Rear side of Turntable.
  • Digital control panel. Selection of 10 wrapping parameters and save it in the 99 programs.
  • Max SKID Size:  62"x62"x104"
  • Wrap Height:  UP to 104"
  • Load Capacity:  up to 4 000 LBS
  • Turntable Speed Adjustable:  from 0 to 12 RPM
  • Stretch Film Tension:  manual, 20% - 160%
  • Production Rate: 10-20 Loads Per Hour
  • Turntable: 71" Round Smooth Top, Low profile, Chain Drive
  • Use with Machine Stretch Wrap  3 in core Stretch Wrap rolls. Up to 20 in height
  • Convenient photo eye - allow operator to walk away. Standard Photo Eye Sensor - reads loads 25 in or taller. May not work with red, blue and black surfaces (use Manual Mode or Mode with Present Height).
  • Permitted Ambient Conditions: Indoor Usage only.
  • Temperature: 41°F and above. To work below this temperature need to be FREEZER Version.
  • Atmospheric Conditions: not greater than 50% at a temperature of 104°F and 90% at a temperature not over 68°F (without condensation)
  • Color may very
  • NO liftgate delivery

  2 Years Warranty. Made in USA.

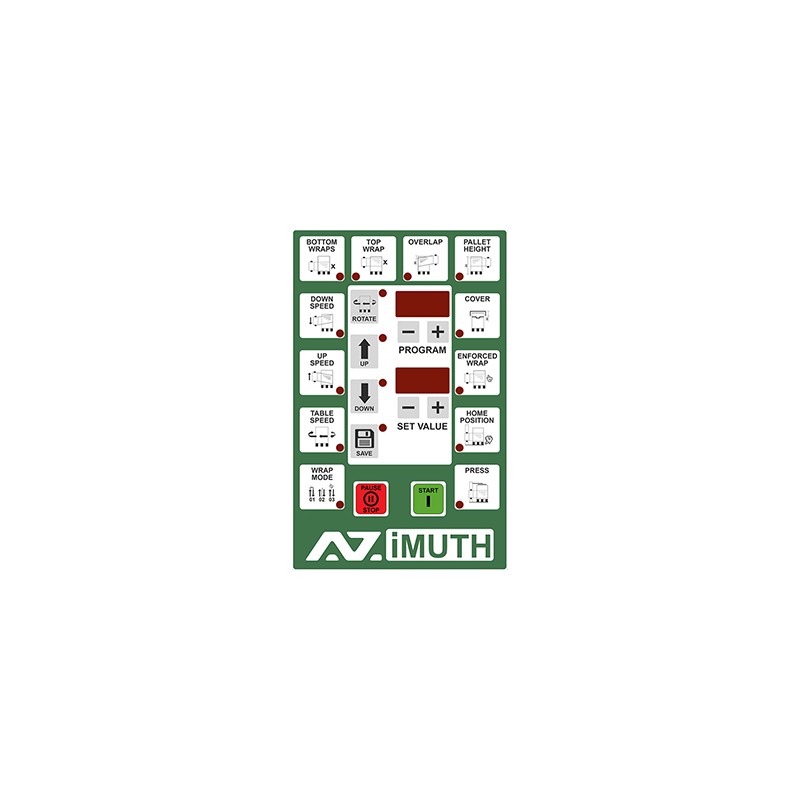

Control Panel Functions

AZIMUTH 3010 Pallet Wrapper Control Panel
  • Separate numbers of Enforced Wraps at bottom/top SKID.
  • Adjusting the rotation speed of the Pallet Wrapper Turntable
  • Customization SKID wrapping height (if necessary)
  • Soft Start and Soft Stop at home position of Pallet Wrapper Turntable
  • Setting the carret up/down moving speed
  • 99 Customized Wrapping Programs Profiles memory
  • Protection from change Wrapping Parameters
  • Sound Signals at Start and End of Wrapping cycles
  • Setting the upper Overlap the top of the cargo
  • Function to wrap SKID using plastic or corrugated Top Cover
  • Emergency Stop Button
  • Active Compression Protection System
  • Manual Wrapping Mode

Pallet Wrapper Dimensions

AZIMUTH 3021 Low Profile Pallet Wrapper Dimensions
Max Skid Size62x62x104"
Wrap HeightUp to 104 in
Load CapacityUp to 4 000 LBS
Turntable Speedfrom 0 to 12 RPM
Stretch film TensionManual, 20% - 160%
Production RateUp to 20 Loads Per Hour
Turntable71 in Diameter, Round Smooth Top, Low profile, Chain Drive
Power Consumption115V, 15A
Machine Length98 in
Machine Height103 in
TypeSemi-Automatic
Stretch Wrap3 in core Stretch Wrap rolls. Up to 20 in height. Up to 35 lbs
Height SensingStandard Photo Eye Sensor - reads loads 25 in or taller. May not work with red, blue and black surfaces (use Manual Mode or Mode with Present Height).
Permitted Ambient ConditionsIndoor Usage only.
Temperaturebetween 41°F and 113°F. To work below 41°F need to be FREEZER Version.
Atmospheric Conditionsnot greater than 50% at a temperature of 104°F and 90% at a temperature not over 68°F (without condensation)
Loading OptionForklift or Pallet Jack (need Ramp Option)
MaterialSteel
Package Size113 x 73 x 20"
Gross Weight1 150 lbs
Net Weight950 lbs
ColorGrey/Green (color may very)
Liftgate DeliveryNO
Warranty2 years
PositioningMay be mounting to the floor if needed
