AZIMUTH 3012 Low Profile Pallet Wrapper (65"x125")

AZIMUTH 3012 Low Profile Pallet Wrapper (65"x125")

AZIMUTH-3012

Semi-Automatic Pallet Wrapping Machine
  • Wraps to 20 loads per Hour, Up to 12 RPM
  • Max SKID Size 52 x 52 x 125", Up to 4000 LBS
  • PLC Control Panel (11 Wrapping Functions, 99 Wrapping Programs)
  • Photo Sensor Height Detection System
  • Manual Adjusts to 150% Stretch
  • 115 volt, 15 amp.

  Watch Video

Optimal Palletwrapper


MAX SKID 52 x 52 x 125"
Up to 4 000 LBS
125"
123"
52"
52"

PLC Control Panel

Digital Powerful Control
  • Up, Up/Down and Manual Cycles
  • Control 10 Wrapping Parameters
  • Save 10 Wrapping Programs for Different King of SKID
  • Emergency Stop Button

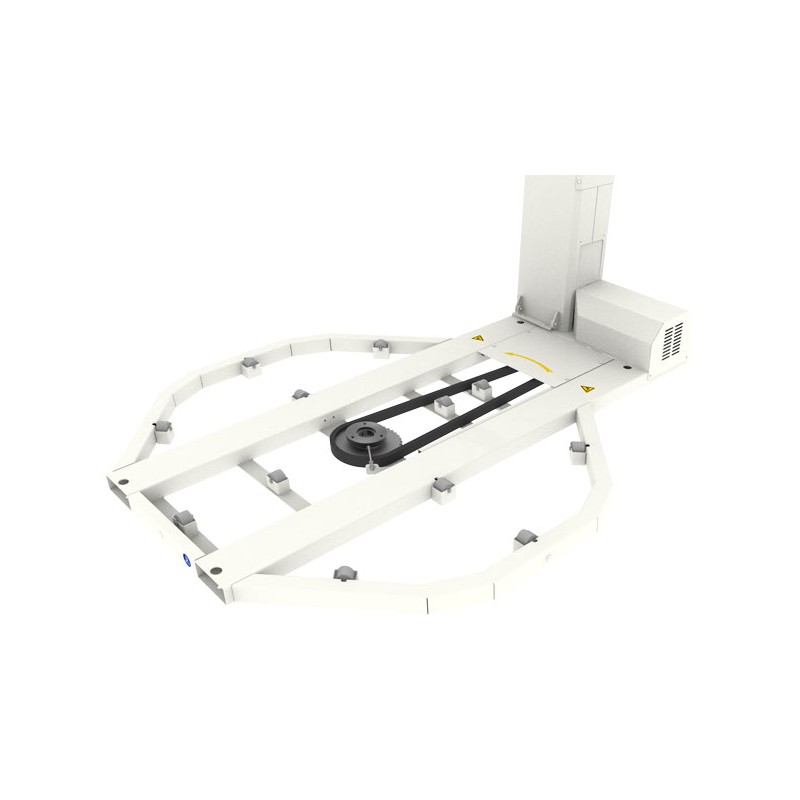

Reliable Construction

  • Chain Drive Turntable
  • Simple Maintenance
  • Reliable Support Wheels

All Spare Part are on the Stock

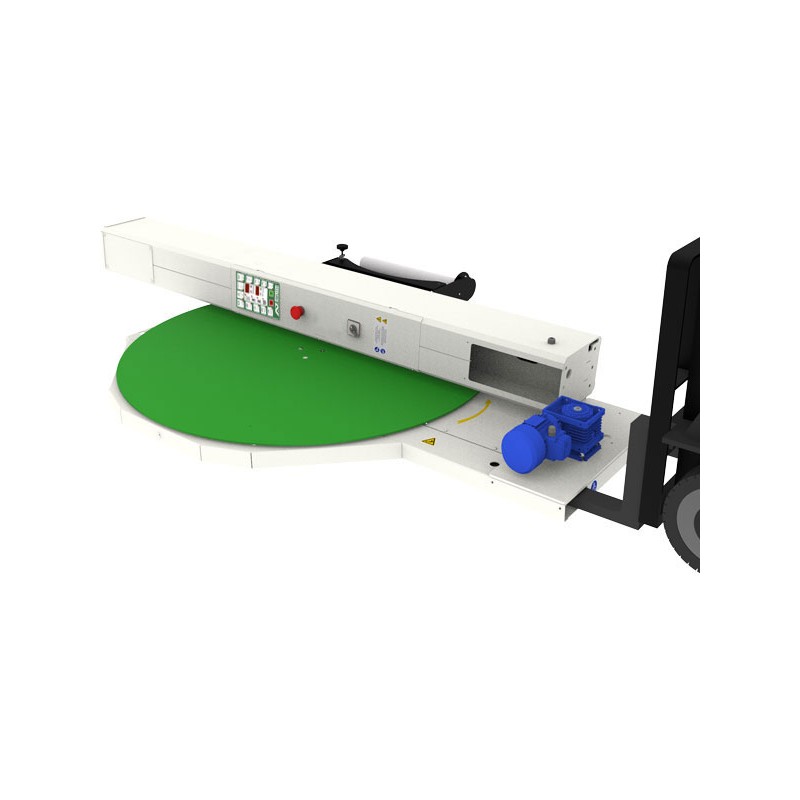

Ease Movement

  • Transportation Holes at Front and at the Rear of Frame
  • Simply Moving by Forklift
  • Low Delivery Cost

Only for $8,090.00

For Palletwrapper on the Stock.

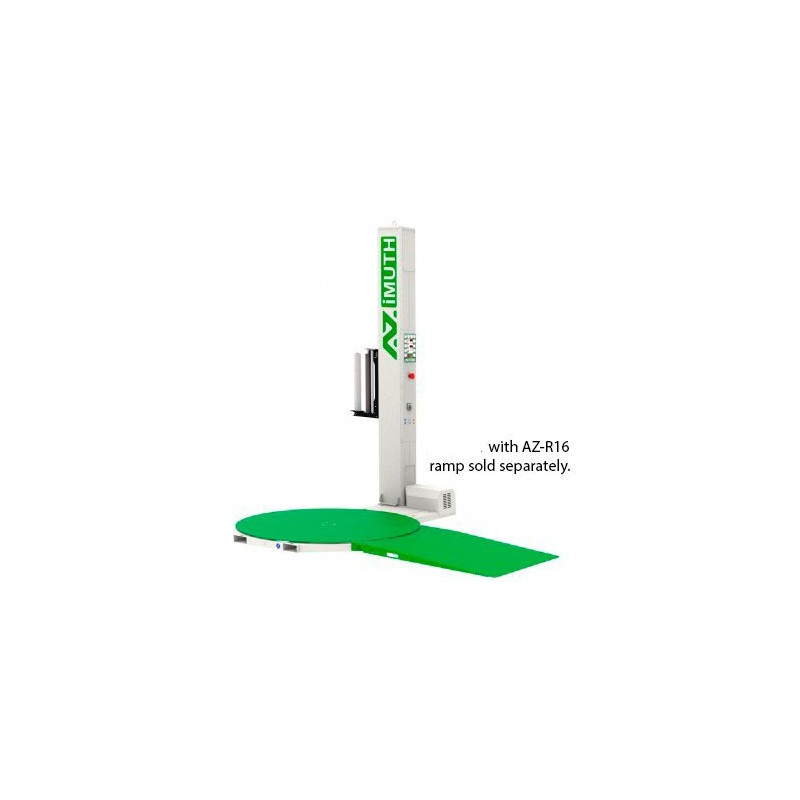

Additional Option - Loading Ramp to use with Pallet Jack (sold separately)
Images
+
AZIMUTH 3011 Low Profile Pallet Wrapper
AZIMUTH 3011 Pallet Wrapping Machine
AZIMUTH 3011 Low Profile Pallet Wrapper
AZIMUTH 3011 Low Profile Pallet Wrapper
AZIMUTH 3012 Low Profile Pallet Wrapper

AZIMUTH 3012 Low Profile Pallet Wrapper (65"x125")

AZ-3012
+
Description

AZIMUTH 3012 Universal Pallet Wrapper

The AZIMUTH 3012 is a low-profile stretch wrapper with a 65-inch diameter turntable and 125-inch wrap height and 4,000 lbs load capacity.

Watch Video

AZIMUTH-3012 Features:

  • The maximum amount of adjustment in the base.
  • Max Pallet size - 52 x 52 x 125"
  • Load Capacity - up to 4 000 LBS
  • Adjust from 20% to 150% stretch Chain drive. Compatible with 3" core stretch film rolls (up to 20" height)
  • Digital control panel. Selection of wrapping parameters and save it in the program memory.
  • Convenient photo eye - allow operator to walk away.
  • 115 volt, 15A

More details

Prices

SALES! ONLY BY MARCH 15.

PALLET WRAPPER AZIMUTH-3012
Shipping next business day
Regular Price is $8,090
PRICE PER ITEM
from 1 item
$8,090.00
Quantity (items):
QTY
Total:
Option - Scale
Can to be used with Receipt Printer ONLY. (Printer not include)
CANNOT TO BE PURCHASED SEPARATELY.
 Installation only in production
+
4000 LBS
SKU: AZ-CSCALE
Starting at $1,450.00
Option - Loading Ramp
Loading Ramp for electric Pallet jack temporarily unavailable
+
40 x 58 x 3''
SKU: AZ-R16
Starting at $800.00
Option - Freezer
Allow to use Pallet Wrapper in Cold Envirolment
Custom made option Lead time - Up to 2 business week

The price of the FREEZER option will depend on the type of premises, premises temperature and other parameters.
The price for Pallet Wrappers for operating temperature not lower than 32F (0C) - $2,550.00
The price for Pallet Wrappers for operating temperature not lower than 13F (-23C) - $4,550.00
Please contact us to calculate the final price by info@azgroupusa.com or 844-442-9872 ext 1.
SALES! ONLY BY MARCH 15.

PALLET WRAPPER AZIMUTH-3012
Shipping next business day
Regular Price is $8,090
SKUMAX. SKID SIZE
LOAD CAPACITY
PRICE
SALETO CART
AZ-3012 52 x 52 x 125" 4000 LBS $8,090 $8,090.00
Option - Scale
Can to be used with Receipt Printer ONLY. (Printer not include)
CANNOT TO BE PURCHASED SEPARATELY.
 Installation only in production
SKULOAD CAPACITY
PRECISION
INDICATOR
PRICETO CART
AZ-CSCALE SCALE Option for Pallet Wrapper 4000 LBS 1 LBS LED $1,450.00
Option - Loading Ramp
Loading Ramp for electric Pallet jack temporarily unavailable
SKUFOR PALLET JACK
DIMENSIONS
SHPG. WT.
PRICETO CART
AZ-R16 Stretch Wrap Machine Entry Ramp MANUAL ONLY 40 x 58 x 3'' 250 LBS $800.00
Option - Freezer
Allow to use Pallet Wrapper in Cold Envirolment
Custom made option Lead time - Up to 2 business week

The price of the FREEZER option will depend on the type of premises, premises temperature and other parameters.
The price for Pallet Wrappers for operating temperature not lower than 32F (0C) - $2,550.00
The price for Pallet Wrappers for operating temperature not lower than 13F (-23C) - $4,550.00
Please contact us to calculate the final price by info@azgroupusa.com or 844-442-9872 ext 1.

AZIMUTH 3012 Low Profile Stretch Wrappers


The AZIMUTH-3012 Pallet Wrapping Machine - Best Price and Best Functionality

  • The maximum amount of adjustment in the base.
  • It's very easy to install simple to operate and virtually zero maintenance.
  • Can be moved by Forklift at the Front and at the Rear side of Turntable.
  • Digital control panel. Selection of 10 wrapping parameters and save it in the 99 programs.
  • Max SKID Size:  52"x52"x125"
  • Wrap Height:  UP to 125"
  • Load Capacity:  up to 4 000 LBS
  • Turntable Speed Adjustable:  from 0 to 12 RPM
  • Stretch Film Tension:  manual, 20% - 160%
  • Production Rate: 10-20 Loads Per Hour
  • Turntable: 65" Round Smooth Top, Low profile, Chain Drive
  • Use with Machine Stretch Wrap  3 in core Stretch Wrap rolls. Up to 20 in height
  • Convenient photo eye - allow operator to walk away. Standard Photo Eye Sensor - reads loads 25 in or taller. May not work with red, blue and black surfaces (use Manual Mode or Mode with Present Height).
  • Permitted Ambient Conditions: Indoor Usage only.
  • Temperature: 41°F and above. To work below this temperature need to be FREEZER Version.
  • Atmospheric Conditions: not greater than 50% at a temperature of 104°F and 90% at a temperature not over 68°F (without condensation)
  • Color may very
  • NO liftgate delivery

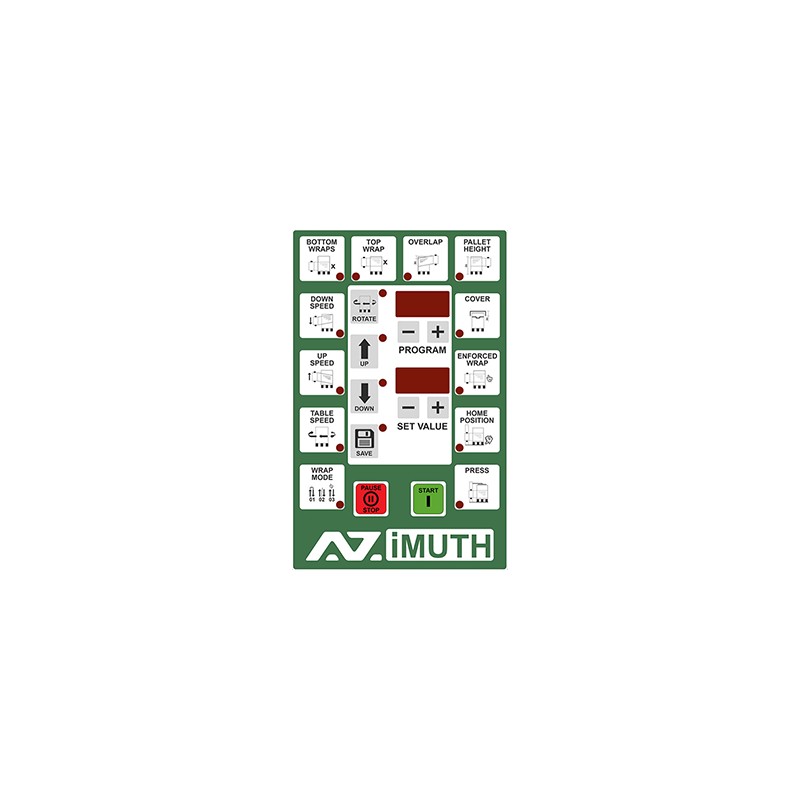

Control Panel Functions

AZIMUTH 3011 Pallet Wrapper Control Panel
  • Separate numbers of Enforced Wraps at bottom/top SKID.
  • Adjusting the rotation speed of the Pallet Wrapper Turntable
  • Customization SKID wrapping height (if necessary)
  • Soft Start and Soft Stop at home position of Pallet Wrapper Turntable
  • Setting the carret up/down moving speed
  • 99 Customized Wrapping Programs Profiles memory
  • Protection from change Wrapping Parameters
  • Sound Signals at Start and End of Wrapping cycles
  • Setting the upper Overlap the top of the cargo
  • Function to wrap SKID using plastic or corrugated Top Cover
  • Emergency Stop Button
  • Active Compression Protection System
  • Manual Wrapping Mode

Pallet Wrapper Dimensions

AZIMUTH 3012 Low Profile Pallet Wrapper Dimensions

The Powerful Advantages of Pallet Wrappers: Securing Your Products and Streamlining Your Business

Pallet wrappers are essential tools in countless industries, from manufacturing and distribution to warehousing and logistics. They play a crucial role in securing palletized goods during transport and storage, safeguarding them from damage, dust, moisture, and other environmental hazards. But beyond their protective function, pallet wrappers offer a range of significant benefits that can enhance your business operations in several ways.

  1. Enhanced Load Stability and Product Protection:
    • Securely Bundled Pallets: Pallet wrappers create a tight, consistent film layer around your palletized goods, preventing them from shifting or toppling during transportation or storage. This minimizes the risk of product damage, ensuring your products reach their destination in pristine condition.
    • Reduced Damage Costs: By preventing product damage, pallet wrappers can significantly reduce associated costs. This includes minimizing product replacements, returns, and potential customer dissatisfaction.
  2. Increased Efficiency and Productivity:
    • Automated Wrapping: Replacing manual hand wrapping with automated pallet wrappers significantly reduces labor costs and frees up valuable employee time for other critical tasks. This can lead to increased overall productivity and efficiency within your operations.
    • Consistent Wrapping Quality: Automated pallet wrappers ensure consistent application of stretch film tension, eliminating inconsistencies associated with manual wrapping. This uniformity optimizes film usage and reduces overall material waste.
  3. Improved Ergonomics and Workplace Safety:
    • Reduced Physical Strain: Manual pallet wrapping can be physically demanding, leading to potential injuries and fatigue. Automated wrappers eliminate the need for manual exertion, promoting a safer and more ergonomic work environment for your employees.
    • Reduced Risk of Injuries: By removing employees from the repetitive and potentially hazardous task of manual wrapping, pallet wrappers help minimize the risk of workplace injuries associated with lifting, bending, and reaching.
  4. Additional Advantages:
    • Weatherproofing: Pallet wrappers provide a protective barrier against various weather elements, including rain, snow, and dust, safeguarding your products during outdoor storage or transportation.
    • Improved Inventory Management: Securely wrapped pallets are easier to identify, handle, and stack within warehouses, contributing to better organization and efficient inventory management.
    • Reduced Environmental Impact: By minimizing film waste and optimizing material usage, pallet wrappers can contribute to a more sustainable packaging process.

Choosing the Right Pallet Wrapper:

With various types and configurations available, selecting the ideal pallet wrapper for your needs depends on factors like your product volume, pallet size, and budget. Consulting with a reputable packaging equipment supplier can help you determine the most suitable solution to maximize the benefits of pallet wrapping for your specific business operations.

In conclusion, pallet wrappers offer a compelling combination of benefits that extend far beyond basic product protection. By enhancing load stability, increasing efficiency, promoting workplace safety, and contributing to sustainability, pallet wrappers can become valuable assets in streamlining your business operations and ensuring the secure delivery of your products.

Manual Wrapping vs. Pallet Wrappers: Weighing the Options for Secure Palleting

When it comes to securing palletized goods, two primary methods come into play: manual hand wrapping and automated pallet wrappers. While both achieve the basic goal of protecting products, each approach offers distinct advantages and disadvantages, impacting efficiency, cost, and overall effectiveness.

Manual Wrapping:

Pros:

  • Low initial cost: Requires minimal upfront investment compared to automated machines.
  • Flexibility: Can be adapted to various pallet sizes and shapes.
  • Suitable for low volume applications: Ideal for businesses with occasional or infrequent wrapping needs.

Cons:

  • Labor-intensive and time-consuming: Requires manual effort, slowing down the packaging process and increasing labor costs.
  • Inconsistent application: Wrap tension and coverage can vary depending on the operator, potentially compromising load stability.
  • Physically demanding: Can lead to fatigue, injuries, and ergonomic concerns for workers.
  • Increased material waste: Manual application often results in uneven film usage and potential overwrapping.

Pallet Wrappers:

Pros:

  • Increased efficiency: Automates the wrapping process, significantly reducing labor costs and increasing throughput.
  • Consistent application: Ensures uniform film tension and coverage for optimal load stability and product protection.
  • Improved ergonomics: Eliminates manual exertion, promoting a safer and more comfortable work environment.
  • Reduced material waste: Pre-stretch technology optimizes film usage, minimizing material costs.
  • Additional features: May offer functionalities like top sheet placement, corner post protection, and automatic cycle initiation for enhanced efficiency.

Cons:

  • Higher initial cost: Requires an upfront investment in the machinery.
  • Limited flexibility: May not be suitable for all pallet sizes or shapes, depending on the machine's capabilities.
  • Maintenance requirements: Regular maintenance is necessary to ensure optimal performance.

Choosing the Right Approach:

The optimal choice between manual wrapping and pallet wrappers depends on several factors, including:

  • Volume of pallets wrapped: For high-volume operations, the efficiency gains of pallet wrappers often outweigh the initial cost.
  • Budget: Consider the upfront investment in a pallet wrapper against the ongoing labor costs associated with manual wrapping.
  • Pallet size and variety: Ensure the chosen pallet wrapper can accommodate the range of pallet sizes and shapes used in your operation.
  • Desired level of automation: Evaluate the need for additional features like top sheet placement or automatic cycle initiation.

Conclusion:

While manual wrapping offers a low-cost solution for occasional needs, pallet wrappers provide significant advantages in terms of efficiency, consistency, safety, and material savings for high-volume operations. Carefully evaluating your specific requirements and budget will help you determine the most cost-effective and efficient approach to secure your palletized goods.

Max Skid Size52x52x125"
Wrap HeightUp to 125 in
Load CapacityUp to 4 000 LBS
Turntable Speedfrom 0 to 12 RPM
Stretch film TensionManual, 20% - 160%
Production RateUp to 20 Loads Per Hour
Turntable65 in Diameter, Round Smooth Top, Low profile, Chain Drive
Power Consumption115V, 15A
Machine Length90 in
Machine Height123 in
TypeSemi-Automatic
Stretch Wrap3 in core Stretch Wrap rolls. Up to 20 in height. Up to 35 lbs
Height SensingStandard Photo Eye Sensor - reads loads 25 in or taller. May not work with red, blue and black surfaces (use Manual Mode or Mode with Present Height).
Permitted Ambient ConditionsIndoor Usage only.
Temperaturebetween 41°F and 113°F. To work below 41°F need to be FREEZER Version.
Atmospheric Conditionsnot greater than 50% at a temperature of 104°F and 90% at a temperature not over 68°F (without condensation)
Loading OptionForklift or Pallet Jack (need Ramp Option)
MaterialSteel
Package Size130 x 68 x 20"
Gross Weight1 100 lbs
Net Weight800 lbs
ColorGrey/Green (color may very)
Liftgate DeliveryNO
Warranty2 years
PositioningMay be mounting to the floor if needed
