AZIMUTH 3001 Low Profile Pallet Wrapper (59"x104")

AZIMUTH 3001 Low Profile Pallet Wrapper (59"x104")

AZIMUTH-3001

Semi-Automatic Pallet Wrapping Machine
  • Wraps to 20 loads per Hour, Up to 12 RPM
  • Max SKID Size 50 x 50 x 104", Up to 4000 LBS
  • PLC Control Panel (11 Wrapping Functions, 99 Wrapping Programs)
  • Photo Sensor Height Detection System
  • Manual Adjusts to 150% Stretch
  • 115 volt, 15 amp.

  Watch Video

Optimal Palletwrapper


MAX SKID 50 x 50 x 104"
Up to 4 000 LBS
104"
103"
50"
50"

PLC Control Panel

Digital Powerful Control
  • Up, Up/Down and Manual Cycles
  • Control 10 Wrapping Parameters
  • Save 10 Wrapping Programs for Different King of SKID
  • Emergency Stop Button

Reliable Construction

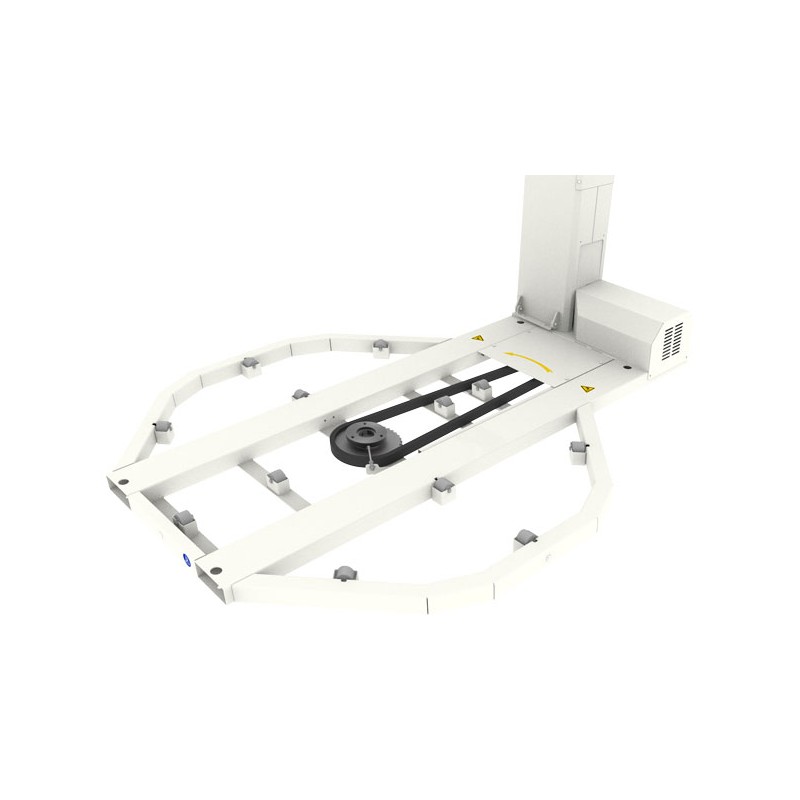

  • Chain Drive Turntable
  • Simple Maintenance
  • Reliable Support Wheels

All Spare Part are on the Stock

Ease Movement

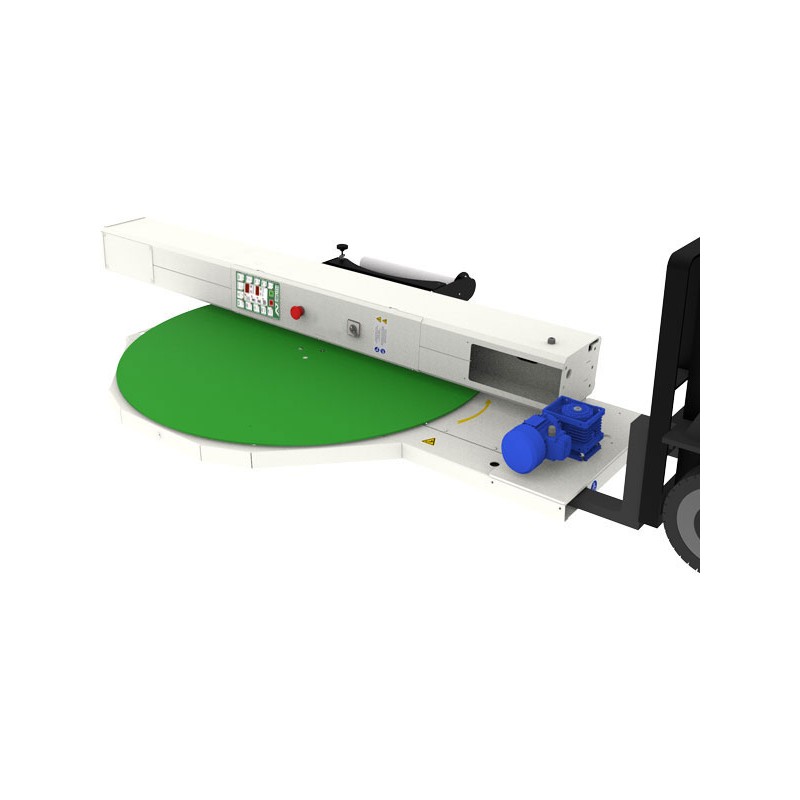

  • Transportation Holes at Front and at the Rear of Frame
  • Simply Moving by Forklift
  • Low Delivery Cost

Only for $5,090.00

For Palletwrapper on the Stock.


Additional Option - Loading Ramp to use with Pallet Jack (sold separately)
Images
+

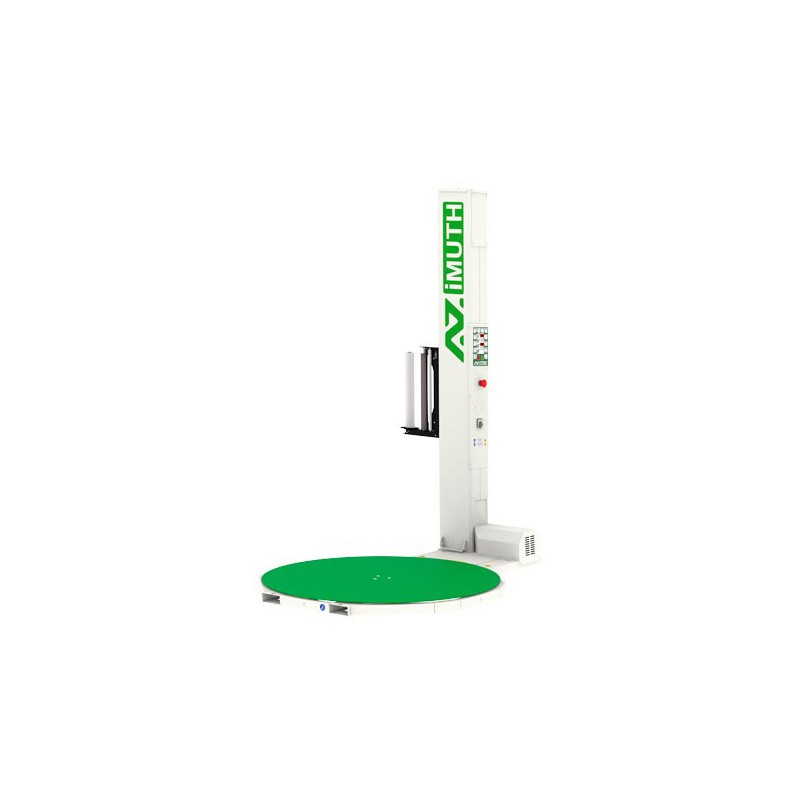

AZIMUTH 3001 Low Profile Pallet Wrapper
AZIMUTH 3001 Low Profile Pallet Wrapper
AZIMUTH 3011 Pallet Wrapping Machine

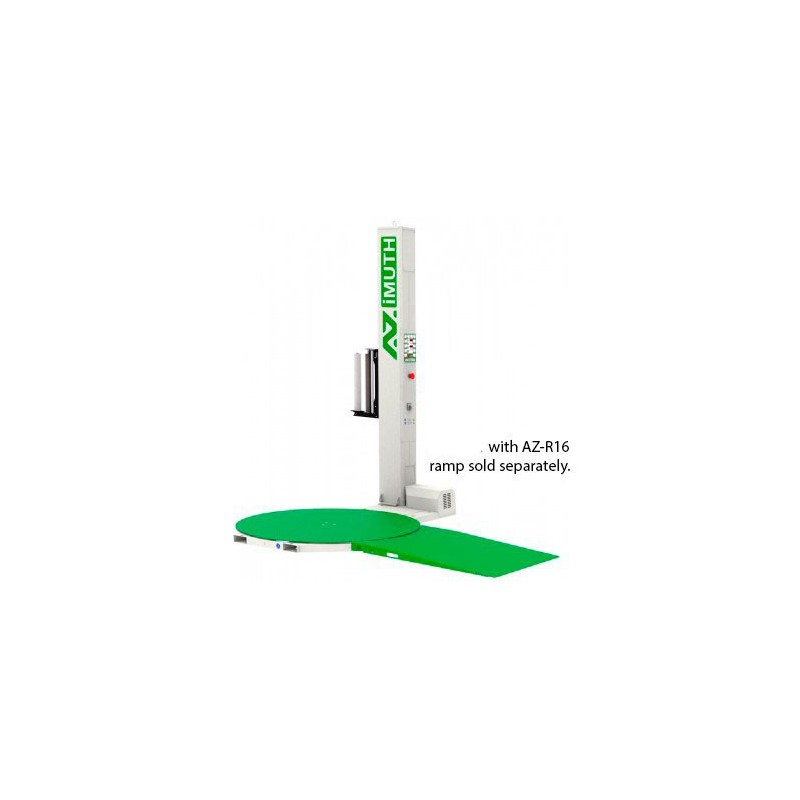

AZIMUTH 3001 Low Profile Pallet Wrapper with Ramp
AZIMUTH 3001 Low Profile Pallet Wrapper

AZIMUTH 3001 Low Profile Pallet Wrapper (59"x104")

AZ-3001
+
Description

AZIMUTH 3001 Universal Pallet Wrapper

The AZIMUTH 3001 is a low-profile stretch wrapper with a 59-inch diameter turntable and 104-inch wrap height and 4,000 lbs load capacity.

Watch Video

AZIMUTH-3001 Features:

  • The maximum amount of adjustment in the base.
  • Max Pallet size - 50 x 50 x 104"
  • Load Capacity - up to 4 000 LBS
  • Adjust from 20% to 150% stretch Chain drive. Compatible with 3" core stretch film rolls (up to 20" height)
  • Digital control panel. Selection of wrapping parameters and save it in the program memory.
  • Convenient photo eye - allow operator to walk away.
  • 115 volt, 15A

More details

Prices

SALES! ONLY BY MARCH 15.
Pallet Wrapper AZIMUTH-3001

Shipping next business day
Regular Price is $6,990



PRICE PER ITEM
from 1 item
$5,090.00
Quantity (items):
QTY
Total:
Option - Scale
Can to be used with Receipt Printer only. (Printer not include)
CANNOT TO BE PURCHASED SEPARATELY. Installation only in production
+
4000 LBS
SKU: AZ-CSCALE
Starting at $1,450.00
Option - Loading Ramp
Loading Ramp for electric Pallet jack temporarily unavailable
+
40 x 58 x 3''
SKU: AZ-R16
Starting at $800.00
Option - Freezer
Allow to use Pallet Wrapper in Cold Envirolment
Custom made option Lead time - Up to 2 business week

The price of the FREEZER option will depend on the type of premises, premises temperature and other parameters.
The price for Pallet Wrappers for operating temperature not lower than 32F (0C) - $2,550.00
The price for Pallet Wrappers for operating temperature not lower than 13F (-23C) - $4,550.00

Please contact us to calculate the final price by info@azgroupusa.com or 844-442-9872 ext 1.
SALES! ONLY BY MARCH 15.
Pallet Wrapper AZIMUTH-3001

Shipping next business day
Regular Price is $6,990



SKUMAX. SKID SIZE
LOAD CAPACITY
PRICE
SALETO CART
AZ-3001 50 x 50 x 104" 4000 LBS $6,990 $5,090.00
Option - Scale
Can to be used with Receipt Printer only. (Printer not include)
CANNOT TO BE PURCHASED SEPARATELY. Installation only in production
SKULOAD CAPACITY
PRECISION
INDICATOR
PRICETO CART
AZ-CSCALE SCALE Option for Pallet Wrapper 4000 LBS 1 LBS LED $1,450.00
Option - Loading Ramp
Loading Ramp for electric Pallet jack temporarily unavailable
SKUFOR PALLET JACK
DIMENSIONS
SHPG. WT.
PRICETO CART
AZ-R16 Stretch Wrap Machine Entry Ramp MANUAL ONLY 40 x 58 x 3'' 250 LBS $800.00
Option - Freezer
Allow to use Pallet Wrapper in Cold Envirolment
Custom made option Lead time - Up to 2 business week

The price of the FREEZER option will depend on the type of premises, premises temperature and other parameters.
The price for Pallet Wrappers for operating temperature not lower than 32F (0C) - $2,550.00
The price for Pallet Wrappers for operating temperature not lower than 13F (-23C) - $4,550.00

Please contact us to calculate the final price by info@azgroupusa.com or 844-442-9872 ext 1.

AZIMUTH 3001 Low Profile Stretch Wrappers

The AZIMUTH-3001 Pallet Wrapping Machine - Best Price and Best Functionality

  • The maximum amount of adjustment in the base.
  • It's very easy to install simple to operate and virtually zero maintenance.
  • Can be moved by Forklift at the Front and at the Rear side of Turntable.
  • Digital control panel. Selection of 10 wrapping parameters and save it in the 99 programs.
  • Max SKID Size:  50"x50"x104"
  • Wrap Height:  UP to 104"
  • Load Capacity:  up to 4 000 LBS
  • Turntable Speed Adjustable:  from 0 to 12 RPM
  • Stretch Film Tension:  manual, 20% - 160%
  • Production Rate: 10-20 Loads Per Hour
  • Turntable: 59" Round Smooth Top, Low profile, Chain Drive
  • Use with Machine Stretch Wrap  3 in core Stretch Wrap rolls. Up to 20 in height
  • Convenient photo eye - allow operator to walk away. Standard Photo Eye Sensor - reads loads 25 in or taller. May not work with red, blue and black surfaces (use Manual Mode or Mode with Present Height).
  • Permitted Ambient Conditions: Indoor Usage only.
  • Temperature: 41°F and above. To work below this temperature need to be FREEZER Version.
  • Atmospheric Conditions: not greater than 50% at a temperature of 104°F and 90% at a temperature not over 68°F (without condensation)
  • Color may very
  • NO liftgate delivery

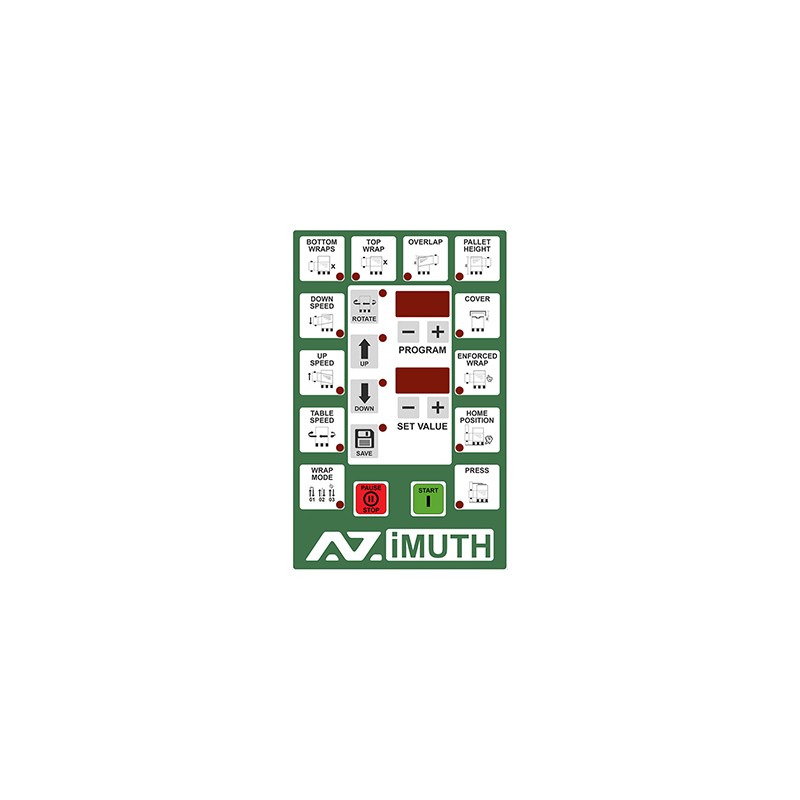

Control Panel Functions

AZIMUTH 3010 Pallet Wrapper Control Panel
  • Separate numbers of Enforced Wraps at bottom/top SKID.
  • Adjusting the rotation speed of the Pallet Wrapper Turntable
  • Customization SKID wrapping height (if necessary)
  • Soft Start and Soft Stop at home position of Pallet Wrapper Turntable
  • Setting the carret up/down moving speed
  • 99 Customized Wrapping Programs Profiles memory
  • Protection from change Wrapping Parameters
  • Sound Signals at Start and End of Wrapping cycles
  • Setting the upper Overlap the top of the cargo
  • Function to wrap SKID using plastic or corrugated Top Cover
  • Emergency Stop Button
  • Active Compression Protection System
  • Manual Wrapping Mode

Pallet Wrapper Dimensions

AZIMUTH 3001 Low Profile Pallet Wrapper Dimensions

Stretch Wrapper Benefits

  1. Load Stability: Stretch wrapper securely bind palletized loads with stretch film, preventing movement, toppling, or spillage during transport and storage, thus preserving product integrity.
  2. Product Protection: Stretch film acts as a barrier against moisture, dust, and dirt, safeguarding goods throughout the supply chain, especially for sensitive items.
  3. Efficiency: Automated wrapping processes save time and labor, enabling swift and consistent wrapping of multiple pallets, enhancing overall productivity.
  4. Customization: Stretch wrapper offer adjustable settings such as film tension and wrapping patterns, allowing tailored wrapping for diverse load specifications.
  5. Cost Savings: Despite the initial investment, stretch wrapper yield long-term cost reductions by enhancing operational efficiency, decreasing labor expenses, and minimizing product damage.
  6. Space Optimization: Stretch wrapper maximize vertical storage by enabling efficient stacking of pallets, contributing to space utilization in warehouses and distribution centers.
  7. Safety: Equipped with safety features like emergency stops, stretch wrappers ensure a secure work environment for operators during the wrapping process.
  8. Versatility: Stretch wrapper accommodate various pallet sizes and configurations, offering flexibility in packaging solutions for different industries and applications.

Employing a stretch wrapper enhances packaging efficiency, protects goods, reduces costs, and ensures compliance with industry standards, proving indispensable in modern logistics and supply chain operations.

Manual Wrapping vs Pallet Wrapper

Manual wrapping and pallet stretch wrappers are two distinct methods used to secure and protect palletized loads for shipping and storage. Here's a comparison between manual wrapping and pallet stretch wrappers:

Manual Wrapping:

  1. Labor-Intensive: Manual wrapping requires physical effort from workers to wrap the stretch film around the palletized load. This can be time-consuming and labor-intensive, especially for larger or heavier loads.
  2. Inconsistent Results: Manual wrapping may result in inconsistent tension and coverage of the stretch film, leading to potential load instability and product damage during transit or storage.
  3. Dependent on Operator Skill: The effectiveness of manual wrapping depends on the skill level and experience of the operator. Inexperienced or inconsistent wrapping techniques can compromise load stability and protection.
  4. Limited Efficiency: Manual wrapping is slower and less efficient compared to pallet stretch wrappers. It may not be suitable for high-volume operations or large-scale distribution centers where efficiency and productivity are paramount.
  5. Higher Risk of Injury: Manual wrapping poses a risk of musculoskeletal injuries and strains to workers due to repetitive motions and heavy lifting involved in the wrapping process.

Pallet Stretch Wrappers:

  1. Automation: Pallet stretch wrappers automate the wrapping process, reducing the need for manual labor and increasing efficiency. They can wrap multiple pallets quickly and consistently, saving time and labor costs.
  2. Consistent Results: Pallet stretch wrappers apply stretch film evenly and with consistent tension, ensuring uniform coverage and load stability. This minimizes the risk of product damage and ensures the integrity of the palletized load.
  3. Adjustable Parameters: Pallet stretch wrappers offer adjustable parameters such as film tension, rotation speed, and wrapping patterns, allowing for customization based on the specific requirements of the load.
  4. Enhanced Safety: Pallet stretch wrappers incorporate safety features such as emergency stops and safety barriers to ensure a secure working environment for operators during the wrapping process.
  5. Cost-Effective: While there is an initial investment in pallet stretch wrappers, they can result in long-term cost savings by improving efficiency, reducing labor costs, and minimizing product damage.
  6. Versatility: Pallet stretch wrappers are adaptable to various pallet sizes, shapes, and load configurations. They can accommodate standard and non-standard pallets with ease, offering flexibility in packaging solutions.

In summary, while manual wrapping may be suitable for small-scale operations or occasional wrapping needs, pallet stretch wrappers offer superior efficiency, consistency, and load protection for businesses with higher-volume wrapping requirements. Pallet stretch wrappers are essential for optimizing packaging processes and ensuring the safe and secure transportation of palletized loads.

Using Stretch Wrapper Turntable

Placing a pallet on a wrapper involves a systematic process to ensure safety and efficiency. Here's a detailed guide on the pallet-on-wrapper placing process:

  1. Preparation:
    • Ensure the pallet wrapper is powered off and in a stable position.
    • Make sure the area around the pallet wrapper is clear of obstacles or debris.
    • Verify that the pallet wrapper is properly set up and ready for operation.
  2. Position the Pallet Wrapper:
    • Place the pallet wrapper in a location that allows for easy access and maneuverability around the equipment.
    • Ensure that there is adequate space for loading and unloading pallets onto the wrapper.
  3. Prepare the Pallet:
    • Verify that the pallet is in good condition and free from damage.
    • Position the pallet near the pallet wrapper, ensuring that it is aligned and ready for loading.
  4. Align the Pallet:
    • Position the pallet in front of the pallet wrapper, ensuring that it is centered and aligned with the turntable or platform of the wrapper.
    • Make any necessary adjustments to ensure that the pallet is properly positioned for loading.
  5. Load the Pallet onto the Wrapper:
    • Use a forklift or pallet jack to lift the pallet and carefully place it onto the turntable or platform of the pallet wrapper.
    • Ensure that the pallet is positioned securely and centered on the turntable to prevent imbalance during the wrapping process.
  6. Secure the Pallet:
    • Once the pallet is loaded onto the wrapper, engage any locking mechanisms or safety features to secure the pallet in place.
    • Double-check to ensure that the pallet is stable and properly secured before starting the wrapping process.
  7. Verify Wrapping Parameters:
    • Check the wrapping parameters on the control panel of the pallet wrapper, including film tension, rotation speed, and wrapping patterns.
    • Adjust the parameters as needed based on the specifications of the palletized load.
  8. Start the Wrapping Process:
    • Initiate the wrapping process by activating the pallet wrapper according to the selected mode (manual, semi-automatic, or automatic).
    • Monitor the wrapping process to ensure that the stretch film is applied evenly and securely around the palletized load.
  9. Complete the Wrapping Process:
    • Once the wrapping process is complete, stop the pallet wrapper and disengage any locking mechanisms or safety features.
    • Carefully remove the wrapped pallet from the wrapper using a forklift or pallet jack, ensuring that it is stable and secure.
  10. Unload the Wrapped Pallet:
    • Transport the wrapped pallet to the desired location for storage or shipment, ensuring that it is handled with care to prevent damage.

By following these steps, you can safely and efficiently place a pallet on a wrapper, ensuring that palletized loads are securely wrapped for transportation and storage.

Scale Wrapper

A scale wrapper, also known as a pallet wrapper with an integrated scale, combines the functionality of a stretch wrapper with the capability to weigh palletized loads. Here's how a scale wrapper typically works and its benefits:

Functionality:

  1. Weighing Capability: A scale wrapper incorporates a built-in weighing system, usually located within the turntable or platform of the wrapper. This allows operators to weigh palletized loads accurately as part of the wrapping process.
  2. Integration: The scale is seamlessly integrated into the pallet wrapper, enabling a streamlined workflow where pallets can be weighed and wrapped in a single operation.
  3. Automated Wrapping: Like standard pallet wrappers, scale wrappers offer automated wrapping functions that apply stretch film evenly and securely around palletized loads. Operators can select wrapping parameters such as film tension, rotation speed, and wrapping patterns to suit different packaging requirements.
  4. User Interface: Scale wrappers feature user-friendly controls and interfaces that allow operators to easily initiate the weighing and wrapping process, monitor progress, and make adjustments as needed.
  5. Safety Features: Scale wrappers incorporate safety features such as emergency stops and safety barriers to ensure operator safety during the wrapping and weighing process.

Benefits:

  1. Efficiency: By combining weighing and wrapping functions into a single operation, scale wrappers streamline the packaging process, saving time and labor compared to separate weighing and wrapping procedures.
  2. Accuracy: Scale wrappers provide accurate weight measurements of palletized loads, ensuring compliance with shipping regulations and carrier requirements. This helps prevent costly fines, rejections, or delays due to inaccurate weight declarations.
  3. Inventory Management: The integrated scale allows businesses to track and manage inventory more effectively by capturing accurate weight data for incoming and outgoing shipments. This information can be used for inventory control, order fulfillment, and logistics planning.
  4. Cost Savings: Scale wrappers contribute to cost savings by optimizing packaging efficiency, reducing labor costs, and minimizing product damage during transit and storage. They help businesses maximize operational productivity and minimize waste.
  5. Space Optimization: Scale wrappers help optimize storage space by allowing for efficient stacking of accurately weighed palletized loads. This helps businesses maximize warehouse space and improve inventory management practices.

Overall, scale wrappers offer a comprehensive solution for weighing and wrapping palletized loads, enhancing efficiency, accuracy, and cost-effectiveness in packaging and logistics operations.

Max Skid Size50x50x104"
Wrap HeightUp to 104 in
Load CapacityUp to 4 000 LBS
Turntable Speedfrom 0 to 12 RPM
Stretch film TensionManual, 20% - 160%
Production RateUp to 20 Loads Per Hour
Turntable59 in Diameter, Round Smooth Top, Low profile, Chain Drive
Power Consumption115V, 15A
Machine Length90 in
Machine Height103 in
TypeSemi-Automatic
Stretch Wrap3 in core Stretch Wrap rolls. Up to 20 in height. Up to 35 lbs
Height SensingStandard Photo Eye Sensor - reads loads 25 in or taller. May not work with red, blue and black surfaces (use Manual Mode or Mode with Present Height).
Permitted Ambient ConditionsIndoor Usage only.
Temperaturebetween 41°F and 113°F. To work below 41°F need to be FREEZER Version.
Atmospheric Conditionsnot greater than 50% at a temperature of 104°F and 90% at a temperature not over 68°F (without condensation)
Loading OptionForklift or Pallet Jack (need Ramp Option)
MaterialSteel
Package Size113 x 63 x 21"
Gross Weight900 lbs
Net Weight754 lbs
ColorGrey/Green (color may very)
Liftgate DeliveryNO
Warranty2 years
PositioningMay be mounting to the floor if needed
Review Count6
Rating Value4.95

Manual AZIMUTH-3000

Installation, Use and Maintenance Manual AZIMUTH-3000 Pallet Wrapping Machine

AZIMUTH Ramp Installation

Intallation Guide AZIMUTH Pallet Wrappers Loading RAMP
