AZIMUTH 3000 Low Profile Pallet Wrapper

AZIMUTH 3000 Low Profile Pallet Wrapper

AZIMUTH-3000

Semi-Automatic Pallet Wrapping Machine
  • Wraps to 20 loads per Hour, Up to 12 RPM
  • Max SKID Size 50 x 50 x 85", Up to 4000 LBS
  • PLC Control Panel (11 Wrapping Functions, 99 Wrapping Programs)
  • Photo Sensor Height Detection System
  • Manual Adjusts to 150% Stretch
  • 115 volt, 15 amp.

  Watch Video

Optimal Palletwrapper


MAX SKID 50 x 50 x 85"
Up to 4 000 LBS
85"
83"
50"
50"

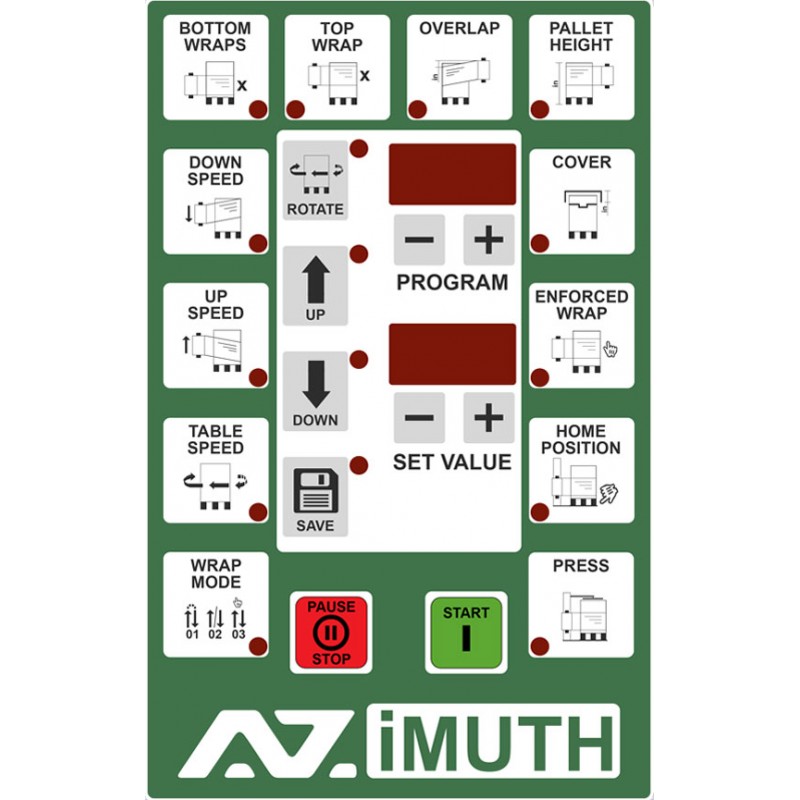

PLC Control Panel

Digital Powerful Control
  • Up, Up/Down and Manual Cycles
  • Control 10 Wrapping Parameters
  • Save 99 Wrapping Programs for Different King of SKID
  • Emergency Stop Button

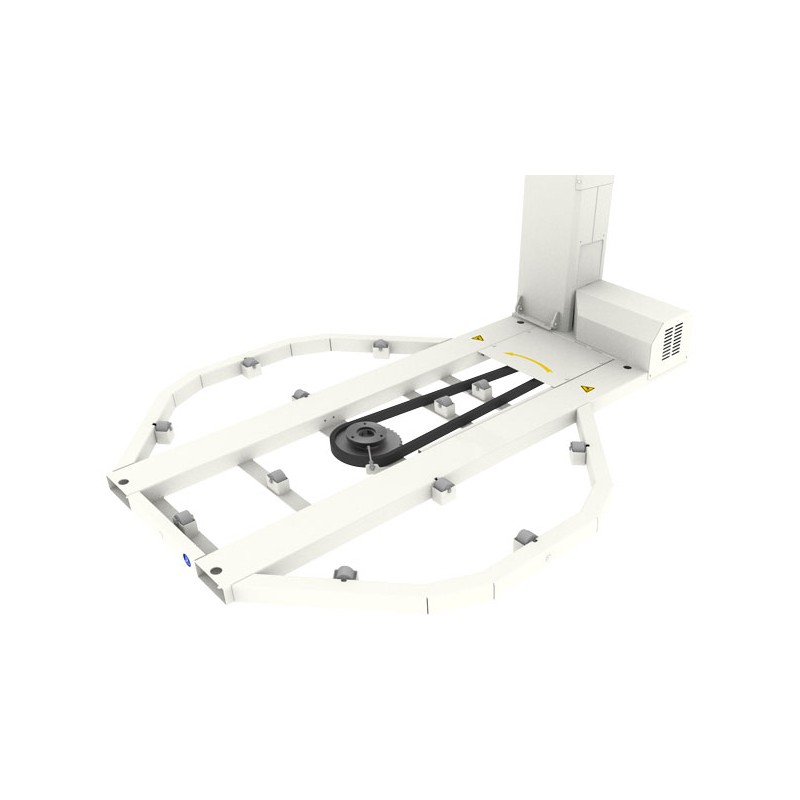

Reliable Construction

  • Chain Drive Turntable
  • Simple Maintenance
  • Reliable Support Wheels

All Spare Part are on the Stock

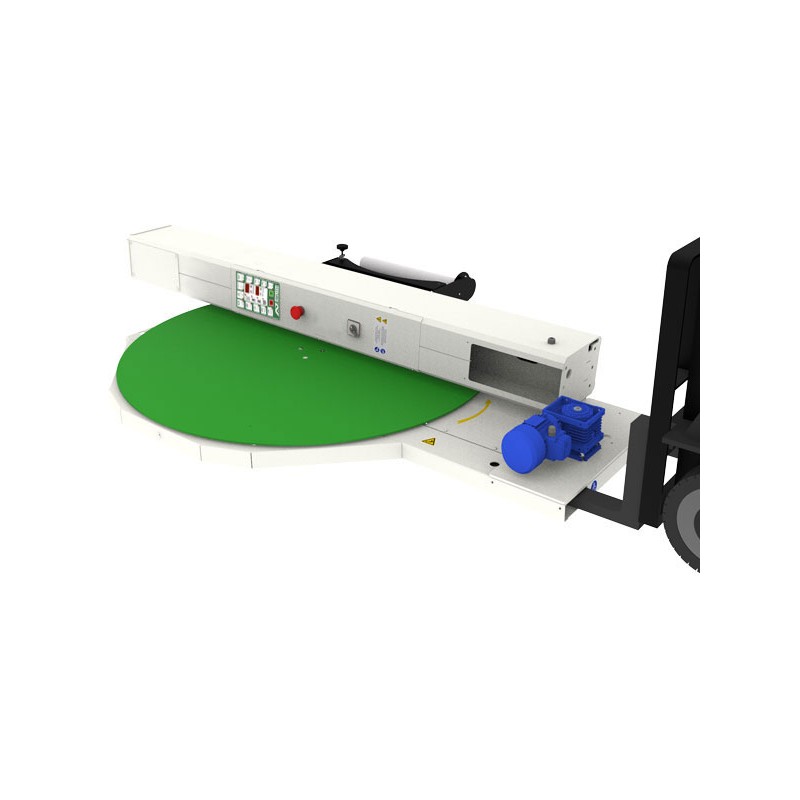

Ease Movement

  • Transportation Holes at Front and at the Rear of Frame
  • Simply Moving by Forklift
  • Low Delivery Cost

Only for $5,550.00

For Palletwrapper on the Stock.
Why are our prices are the Best?

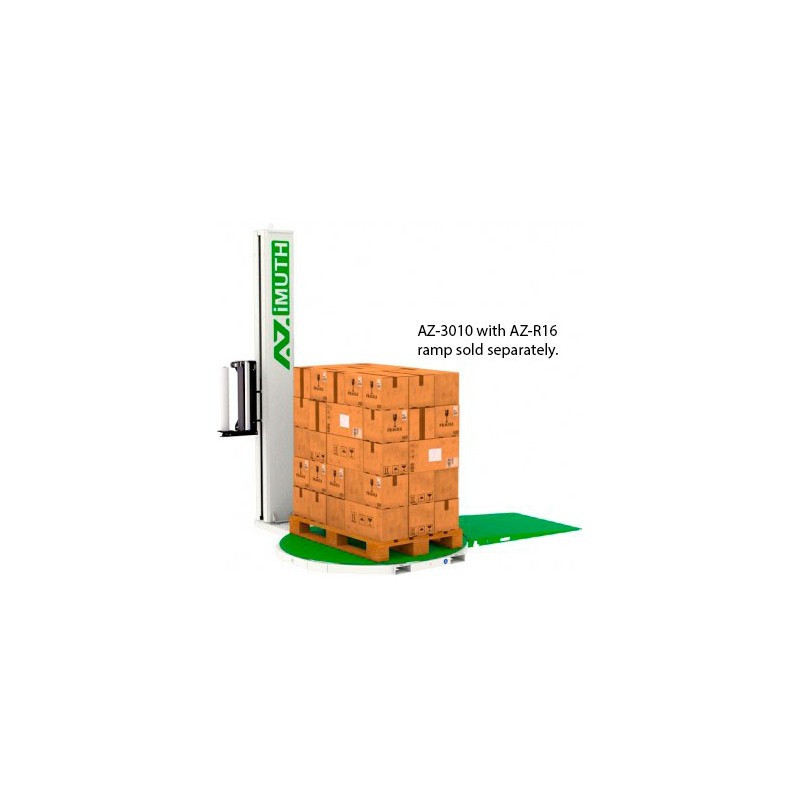

Additional Option - Loading Ramp to use with Pallet Jack (sold separately)
Images
+
AZIMUTH-3010 Pallet Wrapper
AZIMUTH-3010 Pallet Wrapper
AZIMUTH-3010 Optimal Pallet Wrapper
AZIMUTH 3000 Low Profile Pallet Wrapper
AZIMUTH 3000 Low Profile Pallet Wrapper
AZIMUTH-3010 Pallet Wrapper

AZIMUTH 3000 Low Profile Pallet Wrapper

AZ-3000
+
Описание

AZIMUTH 3000 Pallet Wrapper.

Semi-Automatic Pallet Wrapping Machine.

Maximum adjustments in the base.

  Watch Video

AZIMUTH-3000 Features:

  • Adjust from 20% to 150% stretch Chain drive. Compatible with 3" core stretch film rolls (up to 20" height)
  • Max Pallet size - 50 x 50 x 85"
  • Load Capacity - up to 4 000 LBS
  • Digital control panel. Selection of wrapping parameters and save it in the program memory.
  • Convenient photo eye - allow operator to walk away.
  • 115 volt, 15A
Why are our prices are the Best?

More details

Prices

PALLET WRAPPER AZIMUTH-3000
PRICE PER ITEM
from 1 item
$5,550.00
Quantity (items):
QTY
Total:
Option - Scale
+
4000 LBS
SKU: AZ-CSCALE
Starting at $850.00
Option - Loading Ramp
+
40 x 58 x 3''
SKU: AZ-R16
Starting at $800.00
Option - Freezer (works in cold)
Custom made option Lead time - Up to 2 business week

+
-13 F (-25C)
Starting at $1,650.00
PALLET WRAPPER AZIMUTH-3000
SKUMAX. SKID SIZE
LOAD CAPACITY
ROLL WIDTH
PRICETO CART
AZ-3000 50 x 50 x 85" 4000 LBS 20" $5,550.00
Option - Scale
SKULOAD CAPACITY
PRECISION
INDICATOR
PRICETO CART
AZ-CSCALE SCALE Option for Pallet Wrapper 4000 LBS 1 LBS LED $850.00
Option - Loading Ramp
SKUFOR PALLET JACK
DIMENSIONS
SHPG. WT.
PRICETO CART
AZ-R16 AZIMUTH Stretch Wrap Entry Ramp MANUAL ONLY 40 x 58 x 3'' 250 LBS $800.00
Option - Freezer (works in cold)
Custom made option Lead time - Up to 2 business week

SKUWORKING TEMP
PRICETO CART
AZ-FREEZER FREEZER Option for Pallet Wrapper -13 F (-25C) $1,650.00
Why are our prices are the Best?

AZIMUTH 3000 Low Profile Stretch Wrappers

The AZIMUTH-3000 Pallet Wrapping Machine - Best Price and Best Functionality

  • The maximum amount of adjustment in the base.
  • Wrap up to 20 loads per hour. Speed adjusts to 12 RPM.
  • Max Pallet size -50 x 50 x 85"
  • Load Capacity - up to 4 000 LBS
  • Adjust from 20% to 150% stretch. Turntable Chain Drive. Compatible with 3" core stretch film rolls (up to 20" height)
  • Digital control panel. Selection of 10 wrapping parameters and save it in the 99 programs.
  • Convenient photo eye - allow operator to walk away.
  • 115 volt, 15A
  • It's very easy to install simple to operate and virtually zero maintenance
  • Can be moved by Forklift at the Front and at the Rear side

2 Years Warranty. Made in USA.

Spec AZIMUTH-3000 Pallet Wrappers
PARAMETERAZ-3000
Max Skid Size50 x 50 x 85"
Load Capacityup to 4 000 LBS
Turntable Speed Adjustablefrom 0 to 12 RPM
Stretch Film TensionManual, 0% - 160%
Production Rate10-20 Loads Per Hour
Turntable59 inch (150 cm) Diameter, Smooth Top, Low profile
Power Consumption115V, 15A
Machine Length100"
Machine Height83"
Package Size62" x 97" x 21"
Net Weight732 lbs
Gross Weight850 lbs

Spec AZIMUTH-3000 Pallet Wrapper

  • Max SKID Size - 50" x 50"
  • Wrap Height - UP to 85"
  • Load Capacity - up to 4 000 LBS
  • Turntable Speed Adjustable - from 0 to 12 RPM
  • Stretch Film Tension - manual, 0% - 160%
  • Production Rate - 10-20 Loads Per Hour
  • Turntable - 59 in Diameter, Round Smooth Top, Low profile
  • Power Consumption - 115V, 15A
  • Pallet Wrapper Length - 90"
  • Pallet Wrapper Height - 83"
  • Use with Machine Stretch Wrap 3 in core Stretch Wrap rolls. Up to 20 in height
  • Standard Photo Eye Sensor reads loads 20 in or taller.  May not work with red, blue and black surfaces. Can to be packaged in Manual Mode or Mode with Present Height.
  • Permitted Ambient Conditions: Indoor Usage only.
  • Temperature: 41°F and above. To work below this temperature need to be FREEZER Version.
  • Atmospheric Conditions: not greater than 50% at a temperature of 104°F and 90% at a temperature not over 68°F (without condensation)
  • Color may very
  • Package Size - 63 x 93 x 21"
  • Net Weight - 732 lbs
  • Gross Weight - 850 lbs
  • NO liftgate delivery


Control Panel Functions

AZIMUTH 3010 Pallet Wrapper Control Panel
  • Separate numbers of Enforced Wraps at bottom/top SKID.
  • Adjusting the rotation speed of the Pallet Wrapper Turntable
  • Customization SKID wrapping height (if necessary)
  • Soft Start and Soft Stop at home position of Pallet Wrapper Turntable
  • Setting the carret up/down moving speed
  • 99 Customized Wrapping Programs Profiles memory
  • Protection from change Wrapping Parameters
  • Sound Signals at Start and End of Wrapping cycles
  • Setting the upper Overlap the top of the cargo
  • Function to wrap SKID using plastic or corrugated Top Cover
  • Emergency Stop Button
  • Active Compression Protection System
  • Manual Wrapping Mode

Pallet Wrapper Dimensions

AZIMUTH 3000 Low Profile Pallet Wrapper Dimensions

The pallets with red, blue and black surfaces or with height less then 15" can only be packed in a cycle with a preset height or in manual cycle.

Colors may vary

Max Skid Size50"x 50" x 85"
Turntable SpeedAdjustable from 0 to 12 RPM
Load Capacityup to 4 000 LBS
Turntable59 inch (150 cm) Diameter, Smooth Top, Low profile
Production Rate10-20 Loads Per Hour
Wrap Heightup to 85"
Machine Length100"
Machine Height83"
Package Size63 x 97 x 21"
Gross Weight850 lbs
Net Weight732 lbs
