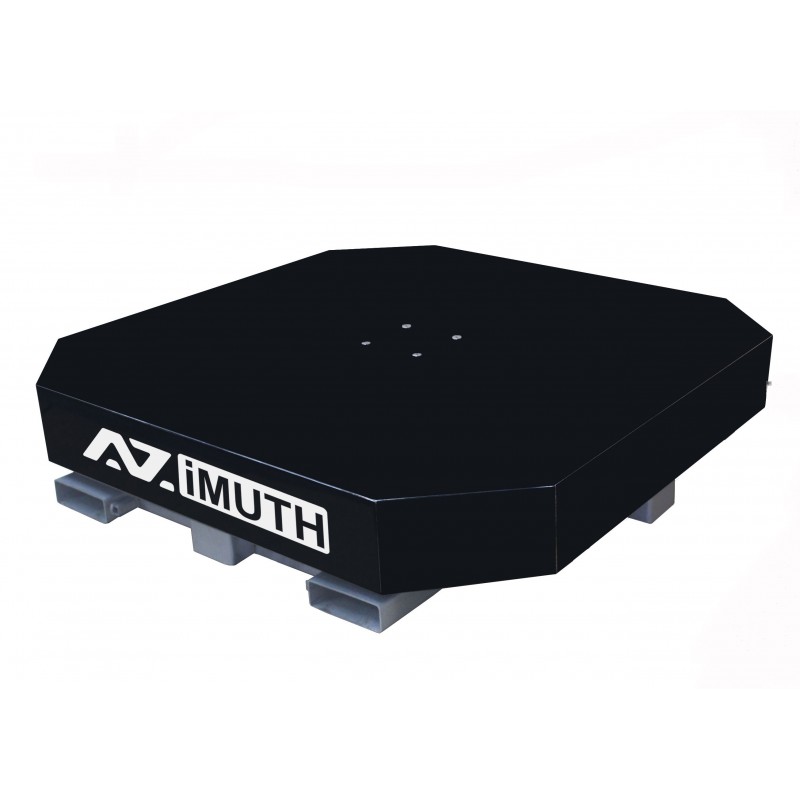

AZIMUTH-303 High Profile Stretch Wrap Turntable.
High Profile Stretch Wrapping Turntable with 48"x48" size with 4,000lb load capacity. Adjustable speed, Foot pedal or wireless dispenser controlled. Made in USA.
AZIMUTH-303 Features:
- Wrap up to 10 - 20 loads per hour. Speed adjusts to 12 RPM.

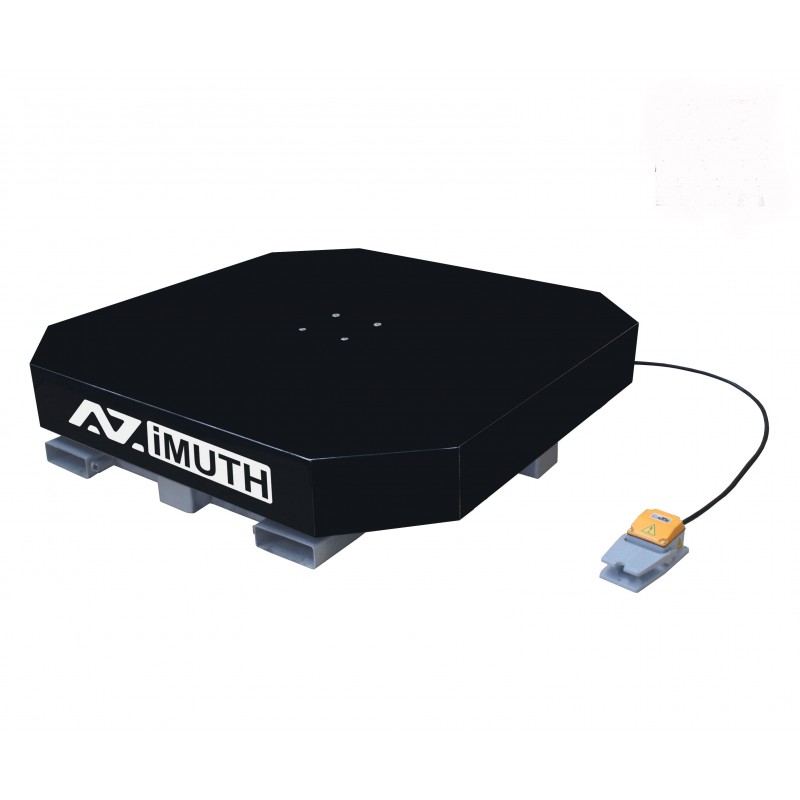

- Foot Pedal control
- Load Capacity - up to 4 000 LBS
- Turntable with a reliable chain drive
- 115 volt - 3/4HP motor
- It's very easy to install simple to operate and virtually zero maintenance
- Can be moved by Forklift at the front and at the rear side
Prices
Shipping next business day
SCALE NOT INCLUDE
FILM IS NOT INCLUDE
Can to be used with Receipt Printer ONLY (Printer not include)
CANNOT TO BE PURCHASED SEPARATELY. Installation only in production
SKU | DIMENSIONS | LOAD CAPACITY | PRICE | SALE | TO CART | |
---|---|---|---|---|---|---|
AZ-303 | 48" x 48" | 4000 LBS | $3,040 | $3,040.00 |
SKU | DISPENSER CAPACITY | CORE | CONTROL | RANGE | TO CART | |
---|---|---|---|---|---|---|
AZ-LINK-D | 12", 15", 18", 20" rolls | 1.5" - 2" - 3" | MANUAL | 30 ft |
SKU | LOAD CAPACITY | PRECISION | INDICATOR | TO CART | |
---|---|---|---|---|---|
AZ-TSCALE | 4000 LBS | 1 LBS | LCD |
AZIMUTH 303 High Profile Stretch Wrap Turntable
The Stretch Wrap Turntable gives you full control of wrapping cycle. The AZIMUTH Turntable Stretch Wrapper Machine is the perfect tool to increase productivity in any warehouse. The AZIMUTH Turntable is a reliable wrapping machine with a 4 000 lbs capacity, chain driven steel turntable. The Pallet Wrapper Turntable works semi-automatically: has a powered chain driven carousel (turntable), controlled by foot pedal. Operates with simple foot pedal switch, adjust turntable rotation speed. Can wrap oversized SKID. The system turntable stands 10" tall and is easily accessible by ForkLift.
- Wrap up to 10 - 20 loads per hour. Speed adjusts to 12 RPM.
- Maximum load size - 80" x 80"
- Turntable Load Capacity - up to 4 000 LBS
- Turntable with a reliable chain drive
- 115 volt - 3/4HP motor
- It's very easy to install simple to operate.
- Can be moved by Forklift at the Front and at the Rear side
2 Years Warranty. Made in USA.
Machine Dimensions
Colors may vary
High Profile Manual Stretch Wrap Turntable
A high-profile manual motorized stretch wrap turntable is a pallet wrapping machine designed to efficiently wrap palletized loads, especially those with larger or irregular dimensions. Here's an overview of its key features and functionalities:
- High-Profile Design: The high-profile design of the turntable provides ample clearance for taller or irregularly shaped loads. This ensures that the stretch film can be applied evenly and securely without obstruction, minimizing the risk of damage to the load.
- Manual and Motorized Operation: The turntable incorporates both manual and motorized features. While the turntable itself is motorized and capable of rotating the pallet, the application of stretch film remains manual. This hybrid system offers the benefits of motorized rotation while allowing operators to control the wrapping process manually.
- Efficiency: The motorized rotation of the turntable enhances efficiency by automating the rotation process. This reduces the physical effort required by operators and streamlines the wrapping process, especially for larger or heavier loads.
- Flexibility: High-profile manual motorized stretch wrap turntables offer flexibility in handling various load sizes, shapes, and configurations. The combination of manual and motorized features allows operators to adapt the wrapping process to different packaging requirements.
- Load Stability and Security: The motorized rotation and high-profile design contribute to the stability and security of the palletized load during transit or storage. Consistent wrapping tension and clearance help prevent load shifting, damage, and loss of goods during handling and transportation.
- Controlled Film Application: Operators have control over the application of stretch film, ensuring that it is applied evenly and securely around the load. This manual control allows for adjustments to be made based on the specific characteristics of each load, such as its weight, dimensions, and fragility.
- Safety Features: High-profile manual motorized stretch wrap turntables are equipped with safety features to protect operators during the wrapping process. Emergency stop buttons, safety interlocks, and guarding help prevent accidents and ensure operator safety.
- Cost-Effective Solution: Despite offering motorized features, high-profile manual motorized stretch wrap turntables are often more cost-effective than fully automatic wrapping machines. They provide efficiency improvements, reduce labor costs, and optimize packaging processes while offering flexibility and adaptability to various packaging needs.
In summary, a high-profile manual motorized stretch wrap turntable offers a balance between automation and manual control, making it suitable for a wide range of pallet wrapping applications, especially those involving larger or taller loads. It combines efficiency, flexibility, and load stability to optimize the packaging process while ensuring operator safety and cost-effectiveness.
Using Hight Profile Stretch Wrap Turntable vs Manual Wrapping
High-profile stretch wrap turntables can offer significant advantages over manual wrapping processes, particularly for certain types of loads and operational needs. Here's why they might be considered better in certain situations:
- Efficiency: High-profile stretch wrap turntables, especially when motorized, can significantly increase the efficiency of the wrapping process compared to manual wrapping. They can handle larger and taller loads more effectively and with less effort.
- Consistency: With high-profile stretch wrap turntables, you can achieve a more consistent wrapping quality compared to manual wrapping. Motorized turntables ensure uniform rotation and wrapping tension, leading to better load stability and protection.
- Labor Savings: High-profile stretch wrap turntables, especially those that are motorized, can reduce the amount of labor required for wrapping pallets. This can lead to cost savings over time and allow employees to focus on other tasks.
- Safety: Motorized high-profile stretch wrap turntables often come with safety features that minimize the risk of accidents and injuries associated with manual wrapping. This can create a safer working environment for employees.
- Capacity and Flexibility: High-profile stretch wrap turntables can accommodate a wide range of load sizes and shapes, making them more versatile than manual wrapping methods. This flexibility allows for more efficient and effective pallet wrapping in various scenarios.
- Conservation of Resources: Motorized high-profile stretch wrap turntables can help conserve stretch film and other packaging materials by applying them more efficiently and consistently compared to manual wrapping.
However, manual wrapping might still be preferred in some situations, such as when dealing with smaller loads or when the volume of wrapping is low. Manual wrapping can also offer more flexibility and control in certain scenarios where specific wrapping techniques or adjustments are needed.
In summary, while high-profile stretch wrap turntables might be considered better than manual wrapping in many cases due to their efficiency, consistency, labor savings, and safety features, the choice ultimately depends on the specific needs and priorities of the operation.
High Profile Stretch Wrap Turntable: with or without Scale?
Whether a high-profile stretch wrap turntable with a scale is better than one without a scale depends on your specific packaging needs, operational requirements, and goals. Here's a comparison of the advantages and considerations for each option:
High-Profile Stretch Wrap Turntable with Scale:
Advantages:
- Simultaneous Weighing and Wrapping: The integrated scale allows for the simultaneous weighing and wrapping of palletized loads. This streamlines the packaging process by eliminating the need for separate weighing procedures, saving time and improving workflow efficiency.
- Accurate Weight Measurement: The integrated scale provides accurate weight measurements of palletized loads, ensuring compliance with weight regulations, optimizing shipping costs, and preventing overloading or underloading of shipments.
- Efficiency: Combining the scale with the turntable enhances efficiency by integrating weighing and wrapping processes into a single operation. This improves workflow, reduces labor costs, and minimizes the risk of errors associated with manual weighing.
- Real-Time Data Monitoring: Many integrated scale systems provide real-time weight data that can be monitored during the wrapping process. This allows operators to make adjustments as needed and ensures that each palletized load meets weight requirements before shipping.
- Compliance and Reporting: The weight data collected by the integrated scale can be used for compliance purposes and reporting requirements. It enables companies to maintain accurate records of shipped weights and ensures adherence to regulatory standards.
Considerations:
- Cost: High-profile stretch wrap turntables with integrated scales typically have a higher initial investment compared to those without scales due to the added cost of the scale components.
- Maintenance: Integrated scales may require regular calibration and maintenance to ensure accurate weight measurements. Maintenance costs should be considered as part of the overall cost of ownership.
High-Profile Stretch Wrap Turntable without Scale:
Advantages:
- Lower Initial Cost: High-profile stretch wrap turntables without scales generally have a lower upfront cost compared to those with integrated scales, making them more accessible for businesses with budget constraints.
- Simplicity: Turntables without scales may have simpler designs with fewer components, potentially leading to lower maintenance requirements and reduced downtime.
Considerations:
- Separate Weighing Process: Without an integrated scale, operators must perform a separate weighing procedure before or after the wrapping process. This can add time and complexity to the packaging operation.
- Potential for Errors: Manual weighing procedures may be prone to errors or inconsistencies, leading to inaccuracies in weight measurements and compliance issues.
In conclusion, whether a high-profile stretch wrap turntable with a scale is better than one without a scale depends on your specific requirements and priorities. While integrated scales offer advantages in terms of efficiency, accuracy, and compliance, they come with a higher initial cost and maintenance considerations. Businesses should evaluate their needs and weigh the benefits and considerations of each option to determine the most suitable solution for their operations.
Max Skid Size | 80x80" |
Wrap Height | No Limit |
Load Capacity | Up to 4 000 LBS |
Turntable Speed | from 0 to 12 RPM |
Production Rate | 10-20 load per hour |
Turntable | 48"x48", Diamond Plate Top, High Profile |
Power Consumption | 115V, 10A |
Machine Length | 48 in |
Machine Height | 10 in |
Type | Manual |
Permitted Ambient Conditions | Indoor Usage only. |
Temperature | between 41°F and 113°F. To work below 41°F need to be FREEZER Version. |
Atmospheric Conditions | not greater than 50% at a temperature of 104°F and 90% at a temperature not over 68°F (without condensation) |
Loading Option | Forklift only |
Material | Steel |
Package Size | 48" x 48" x 16" |
Gross Weight | 450 lbs |
Net Weight | 420 lbs |
Color | Grey/Black (color may very) |
Liftgate Delivery | NO |
Warranty | 2 years |
Positioning | May be mounting to the floor if needed |
