AZ-300 Low Profile Stretch Wrap Turntable.
Pallet Wrap Turntable is a useful tool that can be used in small companies, that packing products onto pallets by using stretch film. Due to its simplicity and affordable price, the Turntable Wrapping Machine AZIMUTH AZ-300 is ideal for companies that need to carry out small-volume packaging operations at a minimal cost.
If you are looking for more compact model, please see our High Profile Turntable wrappers.
AZIMUTH-300 Features:
- Wrap up to 12 - 15 loads per hour. Speed adjusts to 15 RPM.
- Foot Pedal control
- Max Pallet size - 50"x50"
- Load Capacity - up to 4 000 LBS
- Turntable with a reliable chain drive
- 110 volt - 3/4HP motor
- Can be moved by Forklift at the Front and at the Rear side
Prices
Shipping next business day
SCALE NOT INCLUDE
TEMPORARILY UNAVAILABLE, USE SKU AZ-301 INSTEAD
FILM IS NOT INCLUDE
Can to be used with Receipt Printer only (Printer not include)
CANNOT TO BE PURCHASED SEPARATELY. Installation only in production
Loading Ramp for electric Pallet jack temporarily unavailable
SKU | MAX. SKID SIZE | LOAD CAPACITY | SHPG. WT. | PRICE | SALE | TO CART | |
---|---|---|---|---|---|---|---|
AZ-300 | 50 x 50" | 4000 LBS | 800 LBS | $3,040 | $3,040.00 |
SKU | DISPENSER CAPACITY | CORE | CONTROL | RANGE | TO CART | |
---|---|---|---|---|---|---|
AZ-LINK-D | 12", 15", 18", 20" rolls | 1.5" - 2" - 3" | MANUAL | 30 ft |
SKU | LOAD CAPACITY | PRECISION | INDICATOR | PRICE | TO CART | |
---|---|---|---|---|---|---|
AZ-TSCALE | 4000 LBS | 1 LBS | LED | $1,100.00 |
SKU | FOR PALLET JACK | DIMENSIONS | SHPG. WT. | PRICE | TO CART | |
---|---|---|---|---|---|---|

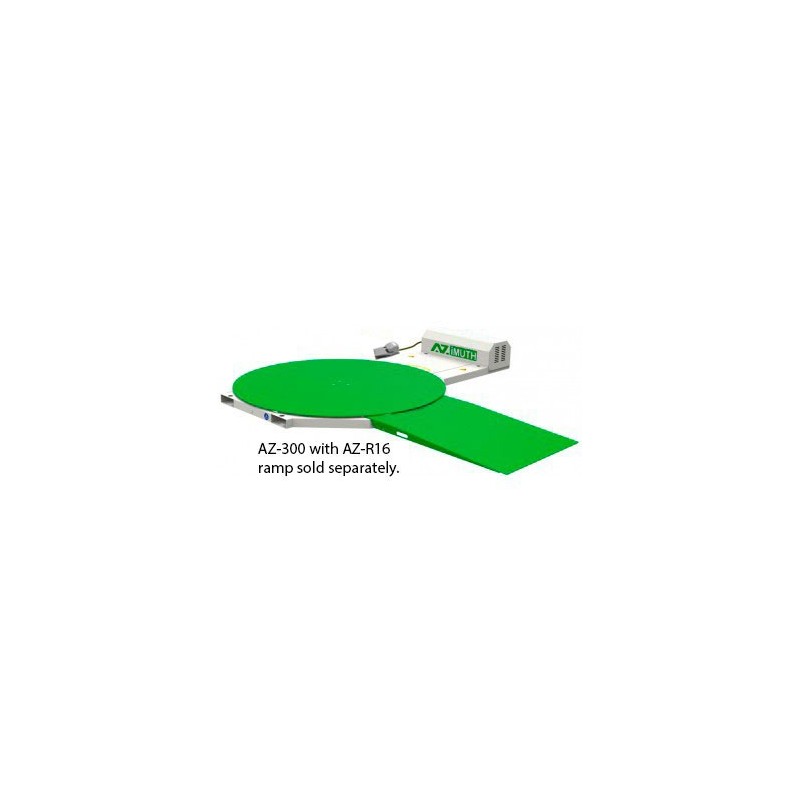

AZ-R16 | MANUAL ONLY | 40 x 58 x 3'' | 250 LBS | $800.00 |
AZIMUTH 300 Stretch Wrap Turntable
The Stretch Wrap Turntable gives you full control of wrapping cycle. The AZIMUTH Turntable Stretch Wrapper Machine is the perfect tool to increase productivity in any warehouse. The AZIMUTH Turntable is a reliable wrapping machine with a 4 000 pound capacity, chain driven steel turntable. The Pallet Wrapper Turntable works semi-automatically: has a powered chain driven carousel (turntable), controlled by foot pedal. Operates with simple foot pedal switch, adjust turntable rotation speed. Maximum SKID Wrapping size is 50" x 50". The system turntable stands only 3" tall and is easily accessible by forklift but an optional ramp is available for pallet jack access.
- Wrap up to 12 - 15 loads per hour. Speed adjusts to 12 RPM.
- Max Wrapping Pallet size - 50" x 50"
- Turntable Load Capacity - up to 4 000 LBS

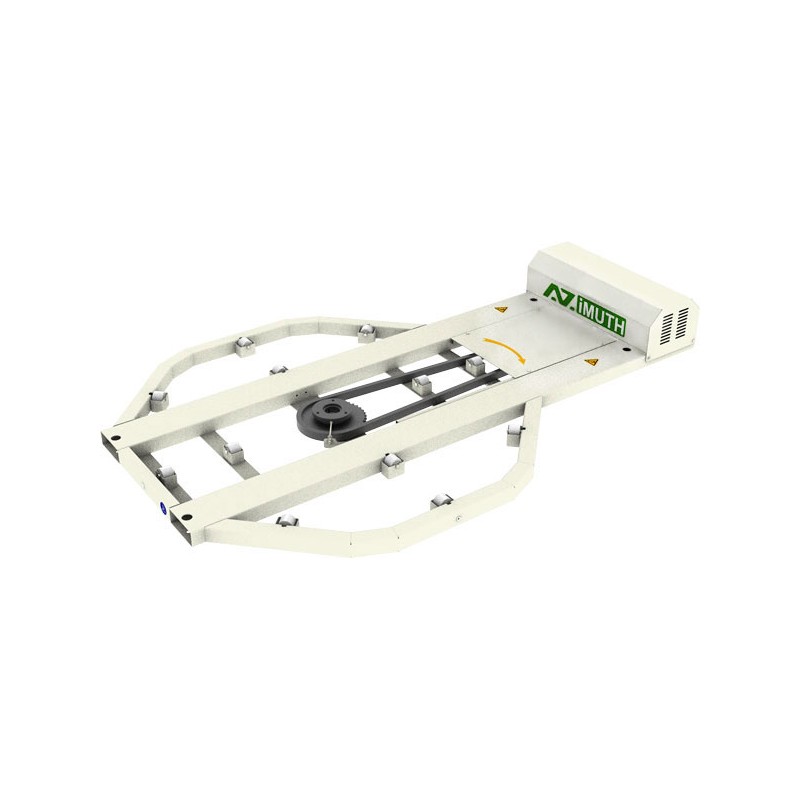

- Turntable with a reliable chain drive
- 110 volt - 3/4HP motor
- It's very easy to install simple to operate.
- Can be moved by Forklift at the Front and at the Rear side
More about Low Profile Stretch Wrap Turntable
A manual motorized stretch wrap turntable with a scale and loading ramp is a comprehensive pallet wrapping solution that integrates several features for efficient and streamlined packaging operations. Here's an overview of each component:
Manual Motorized Stretch Wrap Turntable
- Manual Operation: The turntable may be manually rotated by the operator, facilitating the wrapping process without requiring excessive physical effort.
- Motorized Assistance: The turntable is equipped with a motorized system that assists in the rotation, reducing the manual effort required and ensuring a more consistent wrapping process.
Integrated Scale
- Weighing Functionality: The integrated scale allows for the simultaneous weighing of the palletized load during the wrapping process.
- Accuracy: The scale provides accurate weight measurements, contributing to precise inventory management, compliance with weight regulations, and optimized shipping processes.
Loading Ramp
- Accessibility: The loading ramp is a built-in feature that facilitates the easy loading and unloading of palletized loads onto and off the turntable.
- Efficiency: The presence of a loading ramp streamlines the workflow by providing convenient access for pallet jacks, forklifts, or manual pallet trucks to move pallets onto the turntable.
Key Benefits and Considerations:
- Efficiency and Time Savings: The combination of a motorized turntable, integrated scale, and loading ramp minimizes manual effort, speeds up the packaging process, and enhances overall efficiency.
- Accurate Weighing: The integrated scale ensures that each palletized load is accurately weighed, contributing to precise shipping calculations and compliance with weight regulations.
- Convenience and Accessibility: The loading ramp simplifies the material handling process, allowing forklifts or pallet jacks to easily maneuver pallets onto the turntable.
- Flexibility: The manual motorized turntable with a scale and loading ramp is versatile, accommodating a variety of pallet sizes and load configurations.
When considering such a pallet wrapping system, it's essential to assess the specific needs of your operation, including load sizes, throughput requirements, and available space. This integrated solution can be particularly beneficial for businesses looking to optimize the pallet wrapping process, improve efficiency, and enhance load management capabilities.
Wrap Height | No limits |
Load Capacity | Up to 4 000 LBS |
Turntable Speed | from 0 to 12 RPM |
Stretch film Tension | Manual, 20% - 160% |
Production Rate | Up to 20 Loads Per Hour |

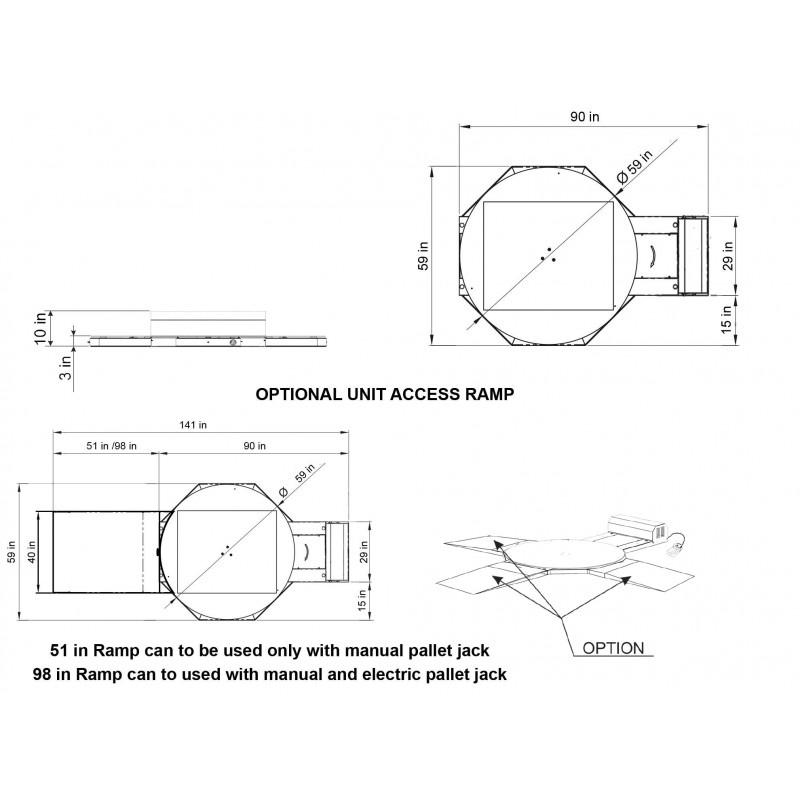

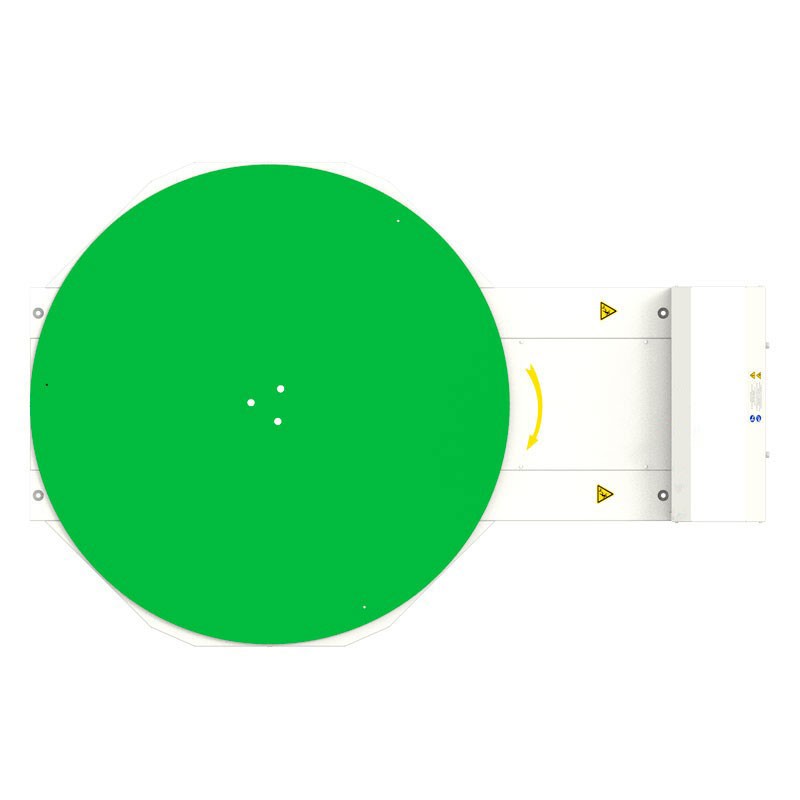

Turntable | 59 in Diameter, Round Smooth Top, Low profile, Chain Drive |
Power Consumption | 115V, 10A |
Machine Length | 90 in |
Machine Height | 10 in |
Type | Manual |
Permitted Ambient Conditions | Indoor Usage only. |
Temperature | between 41°F and 113°F. To work below 41°F need to be FREEZER Version. |
Atmospheric Conditions | not greater than 50% at a temperature of 104°F and 90% at a temperature not over 68°F (without condensation) |
Loading Option | Forklift or Pallet Jack (need Ramp Option) |
Material | Steel |
Package Size | 61"x97"x15" |
Gross Weight | 650 lbs |
Net Weight | 507 lbs |
Color | Grey/Green (color may very) |
Liftgate Delivery | NO |
Warranty | 2 years |
Positioning | May be mounting to the floor if needed |
Review Count | 24 |
Rating Value | 4.8 |
Manual AZIMUTH-301
Installation, Use and Maintenance Manual AZIMUTH-301 Pallet Wrapper Turntable
