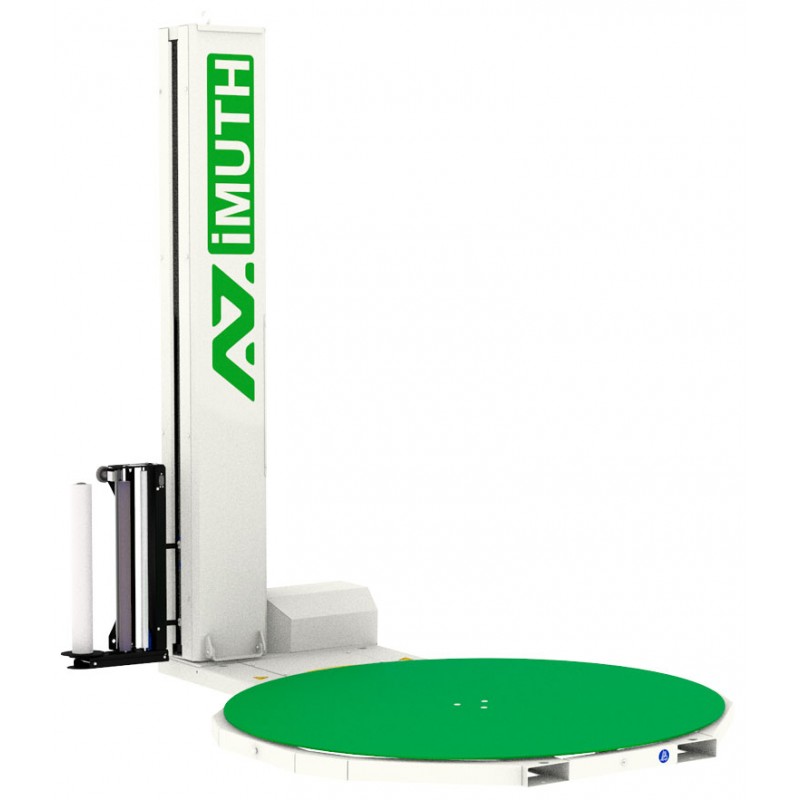

AZIMUTH 3010 Low Profile Stretch Wrappers
The AZIMUTH-3010 Pallet Wrapping Machine - Best Price and Best Functionality
- The maximum amount of adjustment in the base.
- It's very easy to install simple to operate and virtually zero maintenance.

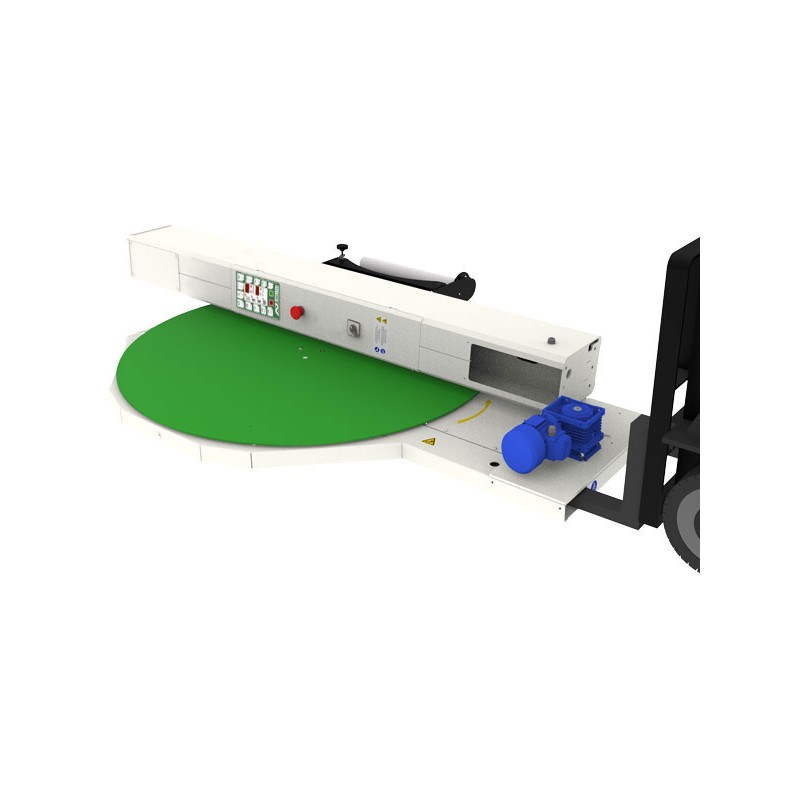

- Can be moved by Forklift at the Front and at the Rear side of Turntable.
- Digital control panel. Selection of 10 wrapping parameters and save it in the 99 programs.
- Max SKID Size: 52"x52"x85"
- Wrap Height: UP to 85"
- Load Capacity: up to 4 000 LBS
- Turntable Speed Adjustable: from 0 to 12 RPM
- Stretch Film Tension: manual, 20% - 160%
- Production Rate: 10-20 Loads Per Hour

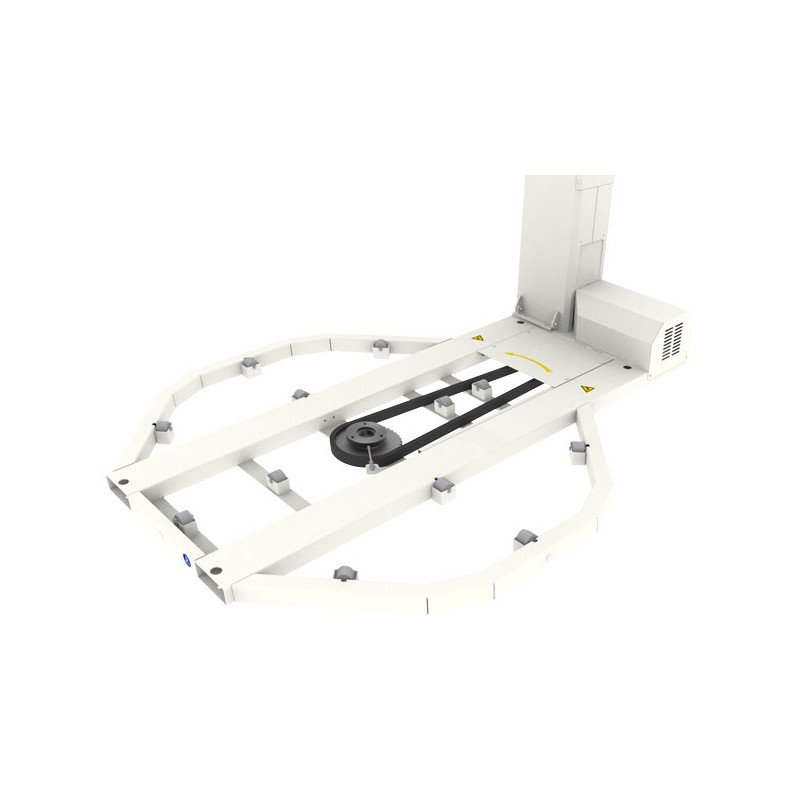

- Turntable: 65" Round Smooth Top, Low profile, Chain Drive
- Use with Machine Stretch Wrap 3 in core Stretch Wrap rolls. Up to 20 in height
- Convenient photo eye - allow operator to walk away. Standard Photo Eye Sensor - reads loads 25 in or taller. May not work with red, blue and black surfaces (use Manual Mode or Mode with Present Height).
- Permitted Ambient Conditions: Indoor Usage only.
- Temperature: 41°F and above. To work below this temperature need to be FREEZER Version.
- Atmospheric Conditions: not greater than 50% at a temperature of 104°F and 90% at a temperature not over 68°F (without condensation)
- Color may very
- NO liftgate delivery

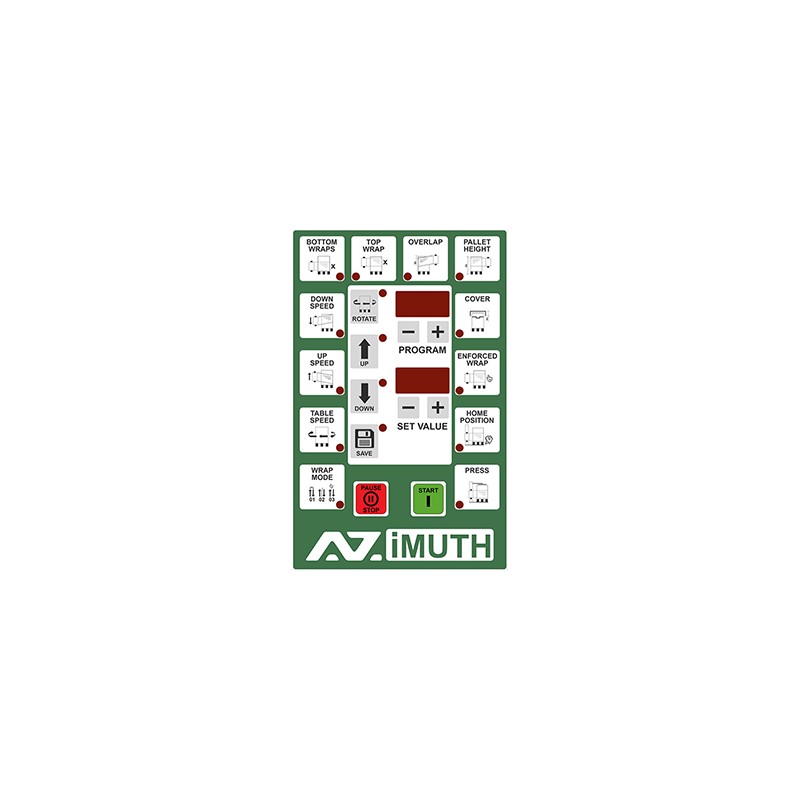

Control Panel Functions
- Separate numbers of Enforced Wraps at bottom/top SKID.
- Adjusting the rotation speed of the Pallet Wrapper Turntable
- Customization SKID wrapping height (if necessary)
- Soft Start and Soft Stop at home position of Pallet Wrapper Turntable
- Setting the carret up/down moving speed
- 99 Customized Wrapping Programs Profiles memory
- Protection from change Wrapping Parameters
- Sound Signals at Start and End of Wrapping cycles
- Setting the upper Overlap the top of the cargo
- Function to wrap SKID using plastic or corrugated Top Cover
- Emergency Stop Button
- Active Compression Protection System
- Manual Wrapping Mode
Pallet Wrapper Dimensions
Maximizing Efficiency and Protection: The Advantages of Pallet Stretch Wrappers
In modern logistics and packaging operations, pallet stretch wrappers emerge as indispensable tools, offering a myriad of benefits that streamline processes and safeguard goods throughout the supply chain. Here, we delve into the advantages of employing pallet stretch wrappers:
- Enhanced Efficiency: Pallet stretch wrappers automate the wrapping process, significantly reducing the time and labor required compared to manual methods. This efficiency allows for swift and consistent wrapping of multiple pallets, optimizing productivity and workflow.
- Product Protection: The use of stretch film provides a protective barrier against moisture, dust, and debris, ensuring the integrity of goods during transit and storage. Pallet stretch wrappers mitigate the risk of damage, preserving product quality and customer satisfaction.
- Customization and Adaptability: Pallet stretch wrappers offer adjustable parameters such as film tension, rotation speed, and wrapping patterns, allowing for tailored wrapping solutions to accommodate diverse load specifications and packaging requirements.
- Labor Savings: By automating the wrapping process, pallet stretch wrappers reduce the need for manual labor, minimizing physical strain and labor costs. Operators can allocate their time and resources to other critical tasks, enhancing operational efficiency.
- Cost-Effectiveness: Despite the initial investment, pallet stretch wrappers yield long-term cost savings by optimizing packaging efficiency, reducing material waste, and minimizing product damage. The benefits of enhanced protection and streamlined operations far outweigh the initial expenditure.
- Space Optimization: Pallet stretch wrappers contribute to space optimization in warehouses and distribution centers by enabling efficient stacking of palletized loads. This maximizes storage capacity and improves inventory management practices.
- Safety Features: Equipped with safety features such as emergency stops and safety barriers, pallet stretch wrappers ensure a secure working environment for operators. These safety measures mitigate the risk of accidents and injuries during the wrapping process.
- Environmental Sustainability: Modern pallet stretch wrappers incorporate pre-stretch technology, optimizing film usage and reducing material waste. This eco-friendly approach aligns with sustainability initiatives and reduces the environmental footprint of packaging operations.
In conclusion, pallet stretch wrappers offer a host of benefits that revolutionize packaging and logistics operations. From enhancing efficiency and product protection to reducing costs and promoting sustainability, the advantages of pallet stretch wrappers underscore their indispensable role in modern supply chains. Embracing this technology empowers businesses to optimize operations, protect valuable assets, and drive sustainable growth in an increasingly competitive marketplace.
The Evolution of Packaging Efficiency: Pallet Stretch Wrappers vs. Manual Wrapping
In the realm of packaging and logistics, the debate between pallet stretch wrappers and manual wrapping methods has long been a topic of discussion. Delving into the intricacies of both approaches, it becomes evident that pallet stretch wrapper offer a multitude of advantages over manual wrapping. Here, we explore why pallet stretch wrappers stand as the superior choice:
Efficiency Redefined
Pallet stretch wrapper redefine efficiency by automating the wrapping process. Compared to the time-consuming and labor-intensive nature of manual wrapping, pallet stretch wrapper allow for swift and consistent wrapping of multiple pallets. This efficiency optimizes workflow and enhances overall productivity.
Consistency and Uniformity
Pallet stretch wrapper ensure consistent and uniform wrapping of palletized loads. With adjustable parameters such as film tension and wrapping patterns, each load receives precisely the right amount of protection, eliminating inconsistencies often associated with manual wrapping methods.
Labor Savings and Resource Allocation
By reducing the dependency on manual labor, pallet stretch wrapper generate significant labor savings. Operators can redirect their time and resources towards more strategic tasks, fostering productivity and innovation within the packaging operation.
Customization and Adaptability
Pallet stretch wrapper offer unparalleled customization and adaptability to diverse packaging requirements. With adjustable settings, they accommodate various load specifications and packaging needs, providing flexibility and versatility in the packaging process.
Cost-Effectiveness
While the initial investment in pallet stretch wrapper may appear daunting, the long-term cost savings far outweigh the upfront expenses. Reduced labor costs, minimized product damage, and optimized material usage contribute to substantial savings over time, making pallet stretch wrappers a sound investment for businesses.
Safety and Risk Mitigation
Pallet stretch wrapper prioritize safety with built-in features such as emergency stops and safety barriers. These measures mitigate the risk of accidents and injuries, ensuring a secure working environment for operators.
Environmental Sustainability
Pallet stretch wrapper align with sustainability initiatives by optimizing material usage and reducing waste. The eco-friendly approach promotes environmental stewardship and minimizes the carbon footprint of packaging operations.
The transition from manual wrapping methods to pallet stretch wrapper signifies a paradigm shift towards efficiency, consistency, and sustainability in packaging operations. Embracing pallet stretch wrappers empowers businesses to optimize resources, enhance productivity, and deliver superior quality in an increasingly competitive marketplace. As the cornerstone of modern packaging solutions, pallet stretch wrappers pave the way for innovation and excellence in the packaging industry.
Unveiling Efficiency: A Comprehensive Guide on How to Use a Pallet Wrapper
Introduction:
The utilization of a pallet wrapper is a pivotal step in modern packaging operations, contributing to efficiency, load stability, and overall supply chain integrity. This comprehensive guide unveils the intricacies of how to use a pallet wrapper, providing operators and logistics professionals with a detailed roadmap for successful wrapping.
- Preparation and Inspection:
Begin by ensuring that the pallet wrapper is in optimal working condition. Conduct a thorough inspection, checking for any signs of wear, damage, or malfunctioning parts. Address any issues promptly to avoid disruptions during the wrapping process.
- Load Preparation:
Place the palletized load onto the turntable or platform of the pallet wrapper. Ensure that the load is stable, centered, and evenly distributed on the pallet to facilitate a smooth wrapping process.
- Adjust Wrapping Parameters:
Set the wrapping parameters based on the specifications of the palletized load. Adjust parameters such as film tension, rotation speed, and wrapping patterns to suit the characteristics of the load and packaging requirements.
- Film Loading:
Load the stretch film onto the film carriage or dispenser of the pallet wrapper. Ensure that the film roll is properly mounted and aligned to prevent tangling or misalignment during the wrapping process.
- Initiate the Wrapping Process:
Start the wrapping process by selecting the appropriate mode on the control panel of the pallet wrapper. Modes may include manual, semi-automatic, or fully automatic, depending on the level of automation desired.
- Monitor the Wrapping Process:
Keep a close eye on the wrapping process to ensure that the stretch film is applied correctly and there are no issues such as film breaks or jams. Monitor the tension of the film to prevent over stretching or tearing.
- Cutting and Securing the Film:
Once the wrapping process is complete, use the built-in cutter to sever the stretch film. Ensure that the film tail is securely attached to the wrapped load to prevent unraveling.
- Unload the Wrapped Pallet:
Carefully remove the wrapped pallet from the turntable or platform of the pallet wrapper using a forklift or pallet jack. Exercise caution to avoid damaging the wrapped load during the unloading process.
- Maintenance and Cleaning:
After each use, perform routine maintenance on the pallet wrapper. Clean the equipment, lubricate moving parts, and address any issues to keep it in optimal working condition for future use.
- Training and Operator Safety:
Provide proper training to operators on the use of the pallet wrapper, emphasizing safety protocols and procedures. Ensure that operators are familiar with the equipment and adhere to safety guidelines during the wrapping process.
Conclusion:
Mastering the use of a pallet wrapper is essential for optimizing packaging operations, ensuring load stability, and contributing to the overall efficiency of supply chain logistics. By following these steps, operators can harness the full potential of pallet wrappers and elevate their packaging processes to new heights of productivity and effectiveness.
Enhancing Efficiency and Accuracy with Scale Wrappers in Packaging Operations
In today's fast-paced logistics and packaging environments, accuracy and efficiency are paramount. Scale wrappers, also known as pallet wrappers with integrated weighing systems, have emerged as indispensable tools for businesses seeking to streamline their operations while maintaining precise weight measurements. This article explores the benefits and functionalities of scale wrappers and their role in modern packaging operations.
Introduction
Scale wrappers represent a convergence of two essential functions in packaging operations: weighing and wrapping. By integrating precision weighing technology with automated wrapping capabilities, scale wrappers offer a comprehensive solution for businesses looking to optimize their packaging processes.
Functionality of Scale Wrappers
Scale wrappers typically feature a built-in weighing system integrated seamlessly into the turntable or platform of the pallet wrapper. This allows for simultaneous weighing and wrapping of palletized loads, streamlining the packaging process and eliminating the need for separate equipment.
Key Features and Benefits:
- Accurate Weight Measurement: Scale wrappers provide accurate weight measurements of palletized loads, ensuring compliance with shipping regulations and carrier requirements. This helps prevent costly fines and discrepancies in load declarations.
- Streamlined Workflow: By combining weighing and wrapping into a single operation, scale wrappers enhance operational efficiency and productivity. This eliminates the need for manual weighing processes and reduces overall packaging cycle times.
- Customization and Flexibility: Scale wrappers offer adjustable parameters for weight thresholds, units of measurement, and wrapping settings. This allows operators to tailor the packaging process to meet specific load requirements and packaging standards.
- Labor Savings: Automation of the weighing and wrapping process reduces the reliance on manual labor, freeing up personnel to focus on other critical tasks. This leads to improved resource allocation and labor efficiency within the packaging operation.
- Data Management and Traceability: Some scale wrappers come equipped with data logging capabilities, allowing for the recording and storage of weight measurements and packaging parameters. This data can be used for quality control, inventory management, and traceability purposes.
Applications and Industry Use Cases:
Scale wrappers find applications across various industries, including manufacturing, distribution, food and beverage, pharmaceuticals, and more. They are particularly beneficial for companies dealing with high-volume packaging requirements and stringent weight compliance standards.
Conclusion:
In conclusion, scale wrappers represent a significant advancement in packaging technology, offering a seamless integration of weighing and wrapping functions. With their ability to enhance efficiency, accuracy, and flexibility in packaging operations, scale wrappers are poised to play a central role in the future of modern supply chains. Businesses looking to optimize their packaging processes and ensure compliance with regulatory standards should consider integrating scale wrappers into their operations.
